2011 Suzuki LT-A500XPL1 Left Rear Wheel Diagram

← All diagrams

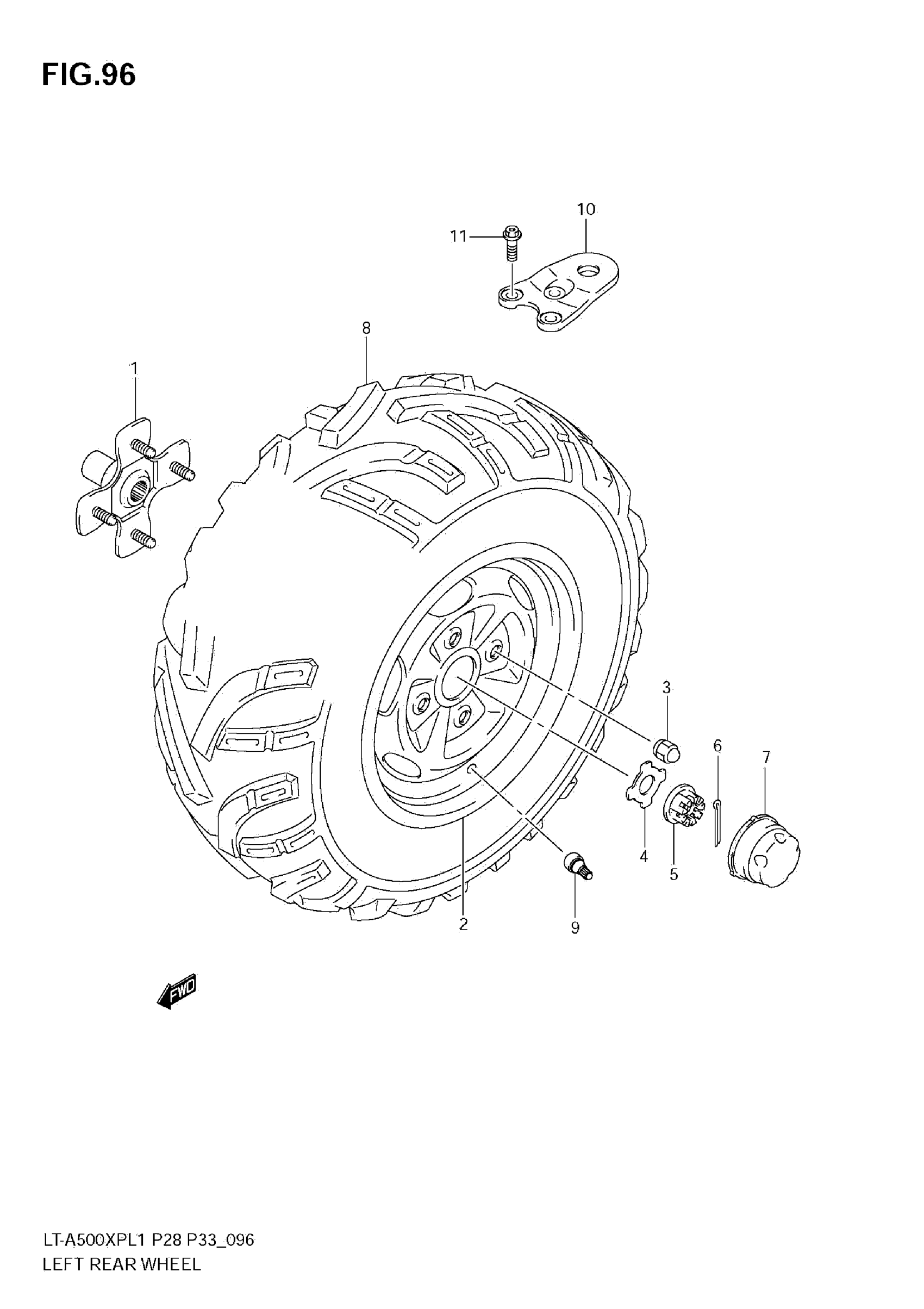

Find the part on the Left Rear Wheel diagram for your 2011 Suzuki LT-A500XPL1, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Suzuki LT-A500XPL1 Left Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, REAR WHEEL LH This part replaces 64110-31G01.

64110-31G10

1
Out of stock

2

RIM, REAR WHEEL (12X7.5AT) (BLACK) This part replaces 65310-31G20-YSR.

65310-31G60-291

1
Out of stock

2

RIM, REAR WHEEL (12X7.5AT) (BLACK)

65310-31G60-291

1
Out of stock

3

NUT

09159-10114

4
Out of stock

4

WASHER, HUB

64723-03G00

1
Out of stock

5

NUT

09141-20008

1
Out of stock

6

COTTER PIN

04111-4035A

1
Out of stock

7

CAP,WHEEL CENTER

54725-09F01

1
Out of stock

8

TIRE, REAR (AT25X10-12) | DUNLOP This part replaces 65110-31G10.

65110-31G20

1
Out of stock

9

VALVE ASSY, WHEEL RIM (TR412)

43130-24A00

1
Out of stock

10

PLATE, TRAILER TOW

95211-31G00

1
Out of stock

11

BOLT (10X30)

09103-10366

3
Out of stock
