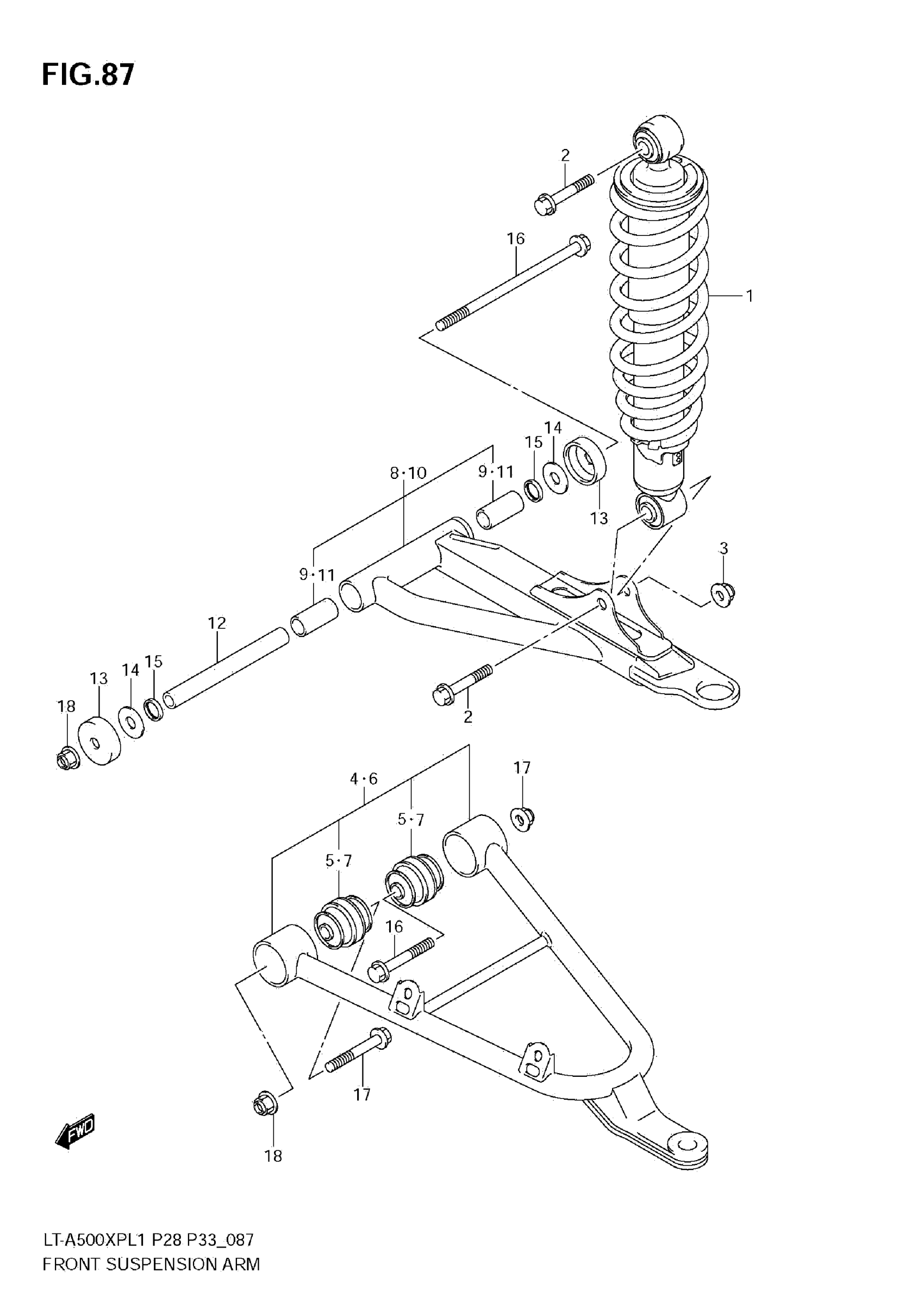

Suzuki LT-A500XPL1 (2011) FRONT SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK

52100-31G40-019

$212.85

2

BOLT (10X48)

09103-10126

$4.07

3

NUT | LOWER

09159-10115

$3.21

4

ARM SET, SUSPENSION LOWER RH

52410-31830

$355.08

5

BUSH (10X35.1X38)

09319-10055

$19.25

6

ARM SET, SUSPENSION LOWER LH

52420-31830

$355.08

7

BUSH (10X35.1X38)

09319-10055

$19.25

8

ARM SET, SUSPENSION UPPER RH

52430-31830

Unavailable

9

BUSH

51236-31G00

$15.85

10

ARM SET, SUSPENSION UPPER LH

52440-31830

Unavailable

11

BUSH

51236-31G00

$15.85

12

SPACER, FR SUSPENSION ARM

52455-31G10

$25.62

13

SEAL, FR SUSPENSION ARM PIVOT

51255-31G10

$15.84

14

WASHER

08211-10281

$2.06

15

SEAL

52454-45G00

$7.00

16

BOLT (10X160) | UPPER

09103-10389

$9.21

17

BOLT (10X57) | LOWER

09103-10255

$8.47

18

NUT

09159-10115

$3.21
