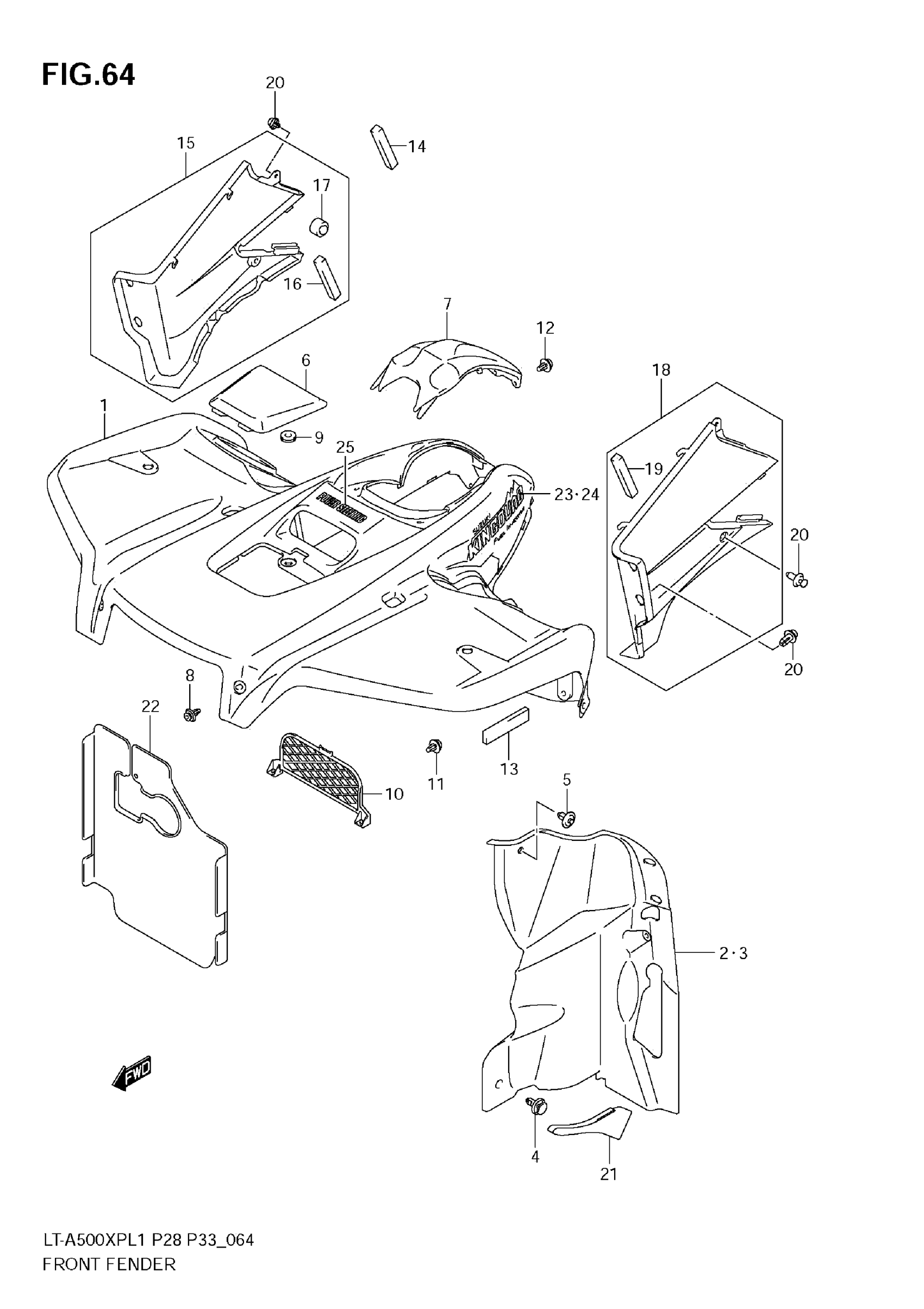

Suzuki LT-A500XPL1 (2011) FRONT FENDER (LT-A500XPZ L1 E28) Diagram

#

Description
Price

1

FENDER, FRONT (CAMOUFLAGE) This part replaces 53111-31GC2-YVA.

53111-31GC3-YVA

Unavailable

2

MUDFLAP, INNER RH

53411-31G02

$28.04

3

MUD FLAP,FENDER This part replaces 53421-31G01.

53421-31G03

$21.07

4

CLIP | LOWER

09409-08335

$2.44

5

CLIP | UPPER

09409-07333

$2.29

6

LID,FR FENDER This part replaces 53341-31GC0-YVA.

53341-31GC3-YVA

Unavailable

7

FENDER, CENTER (CAMOUFLAGE) This part replaces 53119-31GC1-YVA.

53119-31GC2-YVA

Unavailable

8

CLIP

09409-08335

$2.44

9

CUSHION

09320-08018

$2.80

10

COVER,INNER This part replaces 53212-31G00.

53212-31G03

$17.20

11

CLIP

09409-08335

$2.44

12

CLIP

09409-08335

$2.44

13

CUSHION, FENDER SIDE

53145-07G01

$7.65

14

CUSHION, COVER SIDE

53113-31H00

$14.98

15

COVER,SIDE,R This part replaces 53110-31G10-291.

53112-31G04

$38.63

16

CUSHION, COVER SIDE RH

53146-05G00

$8.21

17

CUSHION | RH

09321-10019

$4.42

18

COVER,SIDE,L This part replaces 53110-31G20-291.

53122-31G04

$86.55

19

CUSHION, COVER SIDE LH

53146-05G00

$8.21

20

CLIP

09409-08335

$2.44

21

MUDGUARD, SIDE RH This part replaces 53116-31G00.

53116-31G01

$17.47

22

COVER, CENTER This part replaces 53117-31G00.

53117-31G01

$33.97

23

EMBLEM,FR FENDE This part replaces 68151-31GC0-EFG.

68151-31GC1-EFG

$53.97

24

EMBLEM,LH This part replaces 68152-31GC0-EFG.

68152-31GC1-EFG

$53.97

25

EMBLEM,"POWER-S This part replaces 68151-31GD0-CT5.

68151-31GD1-CT5

$23.48
