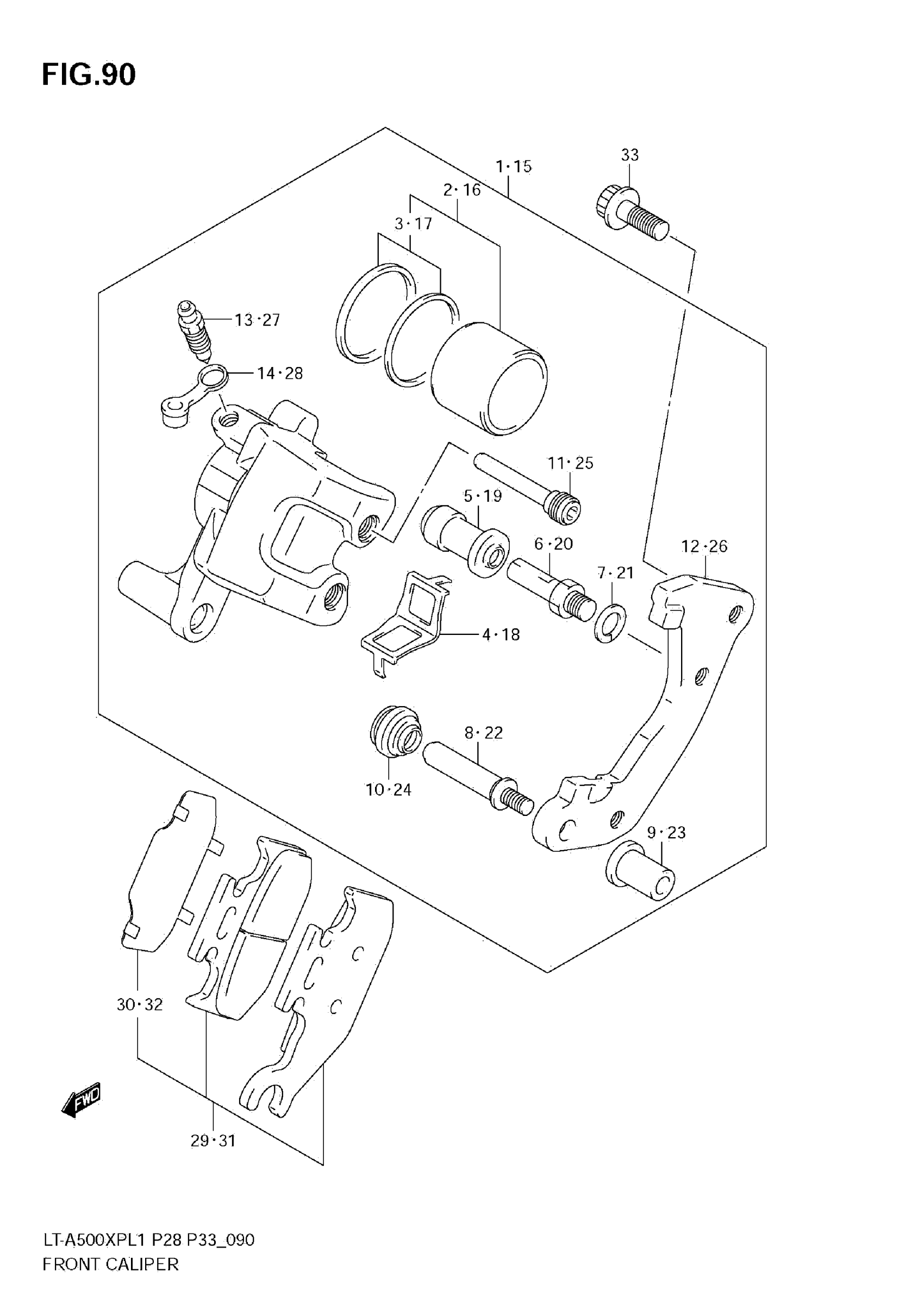

Suzuki LT-A500XPL1 (2011) FRONT CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, FRONT RH

59100-31G20-999

$338.98

2

PISTON SET

59300-13810

$37.72

3

..SEAL SET,PISTON

69100-13820

$8.52

4

SPRING

59315-27C00

$14.02

5

BOOT

59386-13A00

$7.95

6

PIN

59382-13A00

$7.69

7

WASHER

59314-13A00

$2.02

8

PIN

59387-00B20

$18.55

9

NUT

59388-00B20

$15.16

10

BOOT

59303-14500

$5.52

11

.PIN,HANGER

59145-39D00

$21.57

12

BRACKET, RH

59151-31G20

Unavailable

13

BLEEDER

59121-01A00

$8.73

14

CAP

59122-01A00

$4.34

15

CALIPER ASSY, FRONT LH

59300-31G20-999

$326.55

16

PISTON SET

59300-13810

$37.72

17

..SEAL SET,PISTON

69100-13820

$8.52

18

SPRING

59315-27C00

$14.02

19

BOOT

59386-13A00

$7.95

20

PIN

59382-13A00

$7.69

21

WASHER

59314-13A00

$2.02

22

PIN

59387-00B20

$18.55

23

NUT

59388-00B20

$15.16

24

BOOT

59303-14500

$5.52

25

.PIN,HANGER

59145-39D00

$21.57

26

BRACKET, LH

59351-31G20

Unavailable

27

BLEEDER

59121-01A00

$8.73

28

CAP

59122-01A00

$4.34

29

PAD & SHIM SET,R

59100-31870

$58.55

30

SHIM

69132-28C00

$9.47

31

PAD & SHIM SET,L

59100-31880

$58.55

32

SHIM

69132-28C00

$9.47

33

BOLT (8X20)

09106-08176

$3.95
