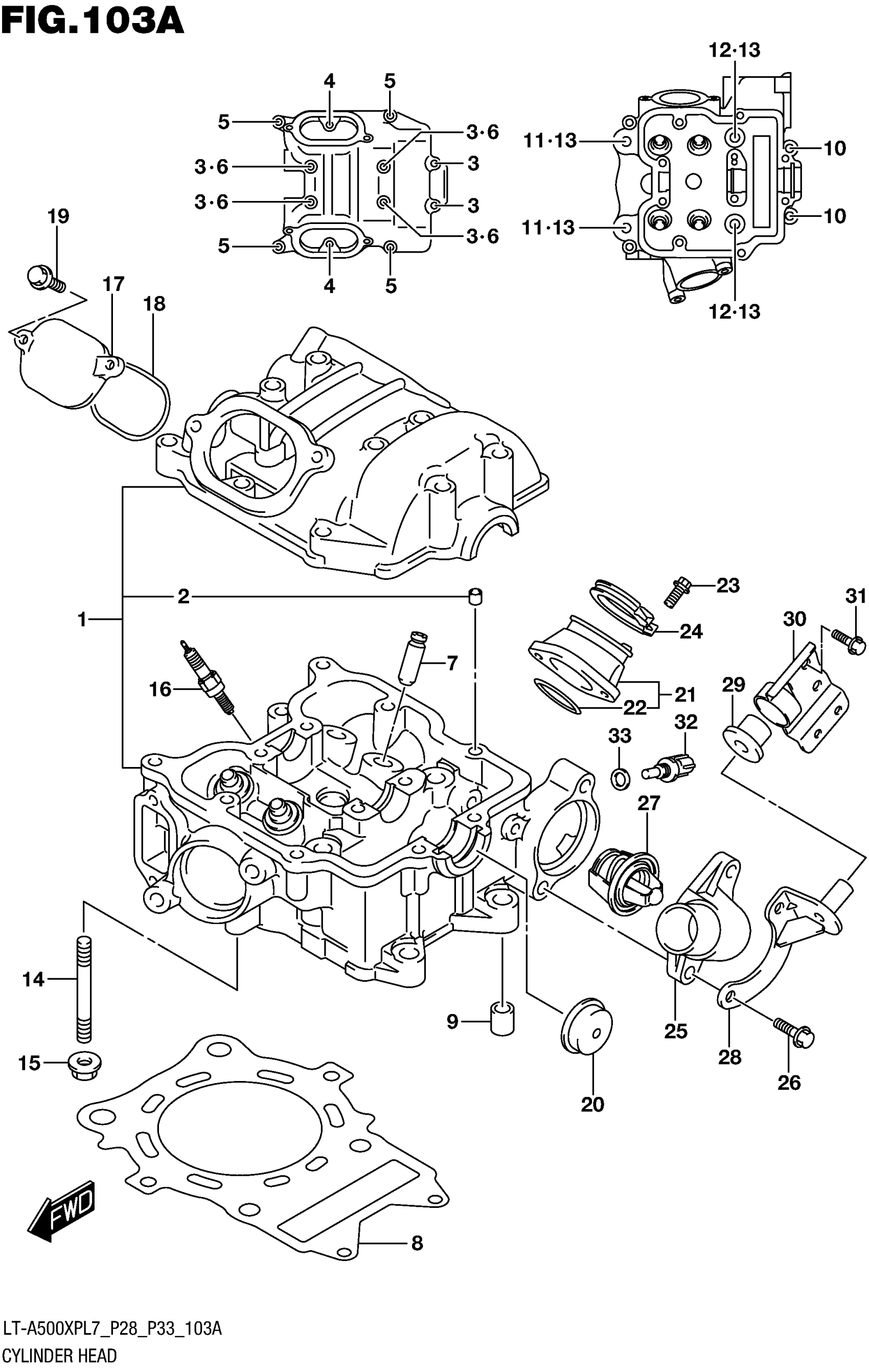

Suzuki LT-A500XPCL7 AXI, (XD3 CAMO) (2017) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-11H50

$1,417.57

2

.PIN (8X11)

09206-08001

$1.77

3

.BOLT (6X60)

09103-06064

$2.13

4

.BOLT

01550-0625A

$1.97

5

BOLT

01550-0635A

$2.31

6

GASKET (5.8X13X1.2)

09168-06023

$2.01

7

GUIDE,VALVE (OS:0.3) | OPT

11115-14D71

$44.28

8

GASKET, CYLINDER HEAD

11141-31H00

$43.55

9

PIN

04211-13189

$2.19

10

BOLT (8X135)

09103-08212

$8.12

11

BOLT (10X190)

09103-10179

$14.02

12

BOLT (L:200)

09103-10180

$14.02

13

.GASKET (10.2X20X2.3)

09168-10031

$2.01

14

STUD BOLT

01421-0850A

$3.33

15

NUT

08316-1008A

$2.47

16-1

SPARK PLUG (LMAR6A-9) | NGK

09482-00623

$38.07

16-2

SPARK PLUG (LMAR8A-9) | OPT

09482-00625

Unavailable

16-2

SPARK PLUG (LMAR8A-9) | NGK

09482-00625

Unavailable

17

CAP,INSPECTION

11175-47D00

$27.22

18

.O RING,INSPECTION CAP

11177-14D01

$4.21

19

BOLT

01550-0620A

$1.97

20

PLUG (OD:30)

09241-25007

$5.58

21

PIPE ASSY, INTAKE This part replaces 13101-31H00.

13101-31H01

$48.88

22

.O RING

13118-11H00

$7.30

23

BOLT (6X18)

09106-06105

$2.80

24

CLAMP

09402-56901

$4.84

25

COVER, THERMOSTAT

17661-31G00

$53.58

26

BOLT

07130-0825A

$2.80

27

THERMOSTAT,WATER This part replaces 17670-06G60.

17670-06G61

$23.59

28

PLATE, ENG MTG DAMPER

11653-11H01

$23.73

29

DAMPER, ENG MTG

11654-31G00

$3.05

30

STOPPER, ENG MTG

11655-31G10

$18.92

31

BOLT (8X12)

01550-0812A

$2.31

32

SENSOR, WATER TEMP

13650-10G00

$79.85

33

GASKET (12X17X1)

09168-12017

$1.97
