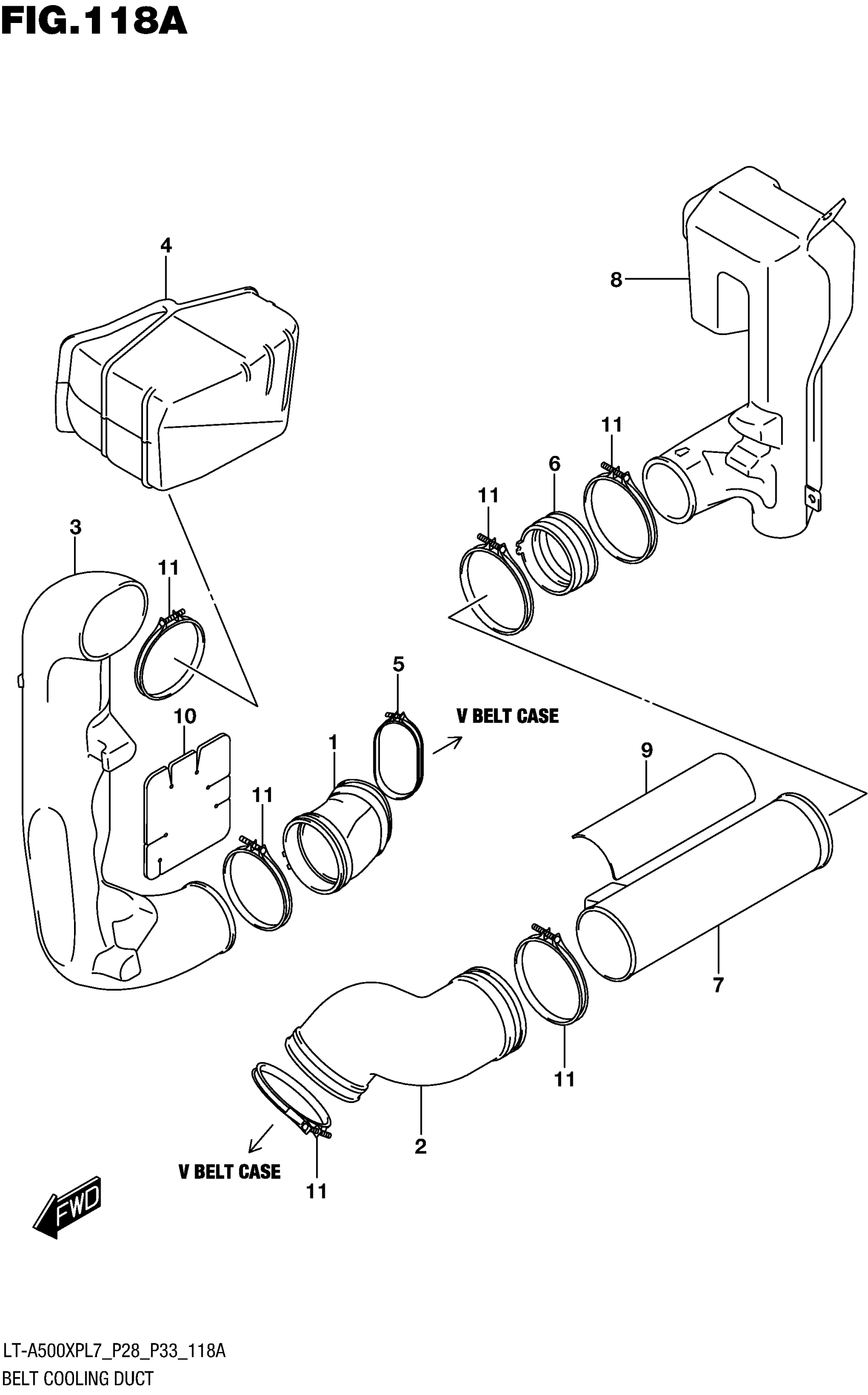

Suzuki LT-A500XPCL7 AXI, (XD3 CAMO) (2017) BELT COOLING DUCT Diagram

#

Description

Price

1

CONNECTOR, CLG DUCT FR This part replaces 11385-11H00.

11385-11H01

$15.85

2

CONNECTOR, CLG DUCT REAR This part replaces 11386-31G00.

11386-31G01

$17.68

3

DUCT, BELT CLG FR NO.1

11387-31G00

$48.77

4

DUCT,BELT COOLI This part replaces 11388-31G10.

11388-31G11

$32.00

5

CLAMP,BELT CLG DUCT FR

11389-09F50

$8.22

6

CONNECTOR, CLG DUCT RR NO.2 This part replaces 11397-31G00.

11397-31G01

$10.95

7

DUCT, BELT CLG RR NO.1

11398-31G00

$49.57

8

DUCT, BELT CLG RR NO.2

11399-31G00

$51.33

9

SHIELD, BELT CLG DUCT RR

11487-31G30

$26.60

10

SHIELD, BELT CLG DUCT FR

11488-31G30

$27.02

11

CLAMP

09402-82208

$6.17
