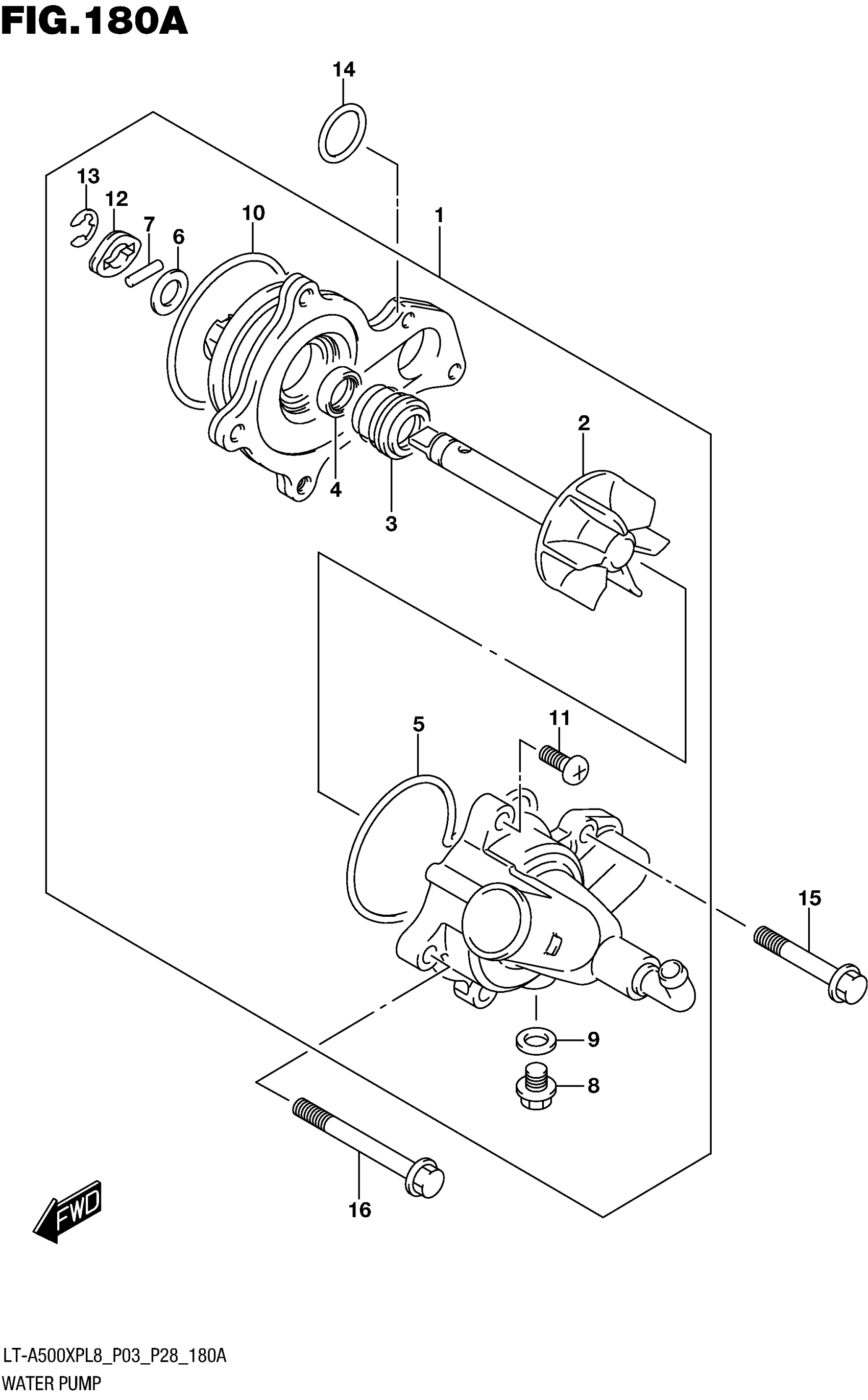

Suzuki LT-A500XP (AXI, RED/GREEN) (2018) WATER PUMP Diagram

Description

Price

PUMP ASSY, WATER This part replaces 17400-11H20.

17400-11H21

$159.45

.IMPELLER

17491-11H00

$63.72

.SEAL, MECHANICAL

17470-02F01

$41.90

.SEAL,OIL (10X21X5)

17461-48G00

$12.45

.O RING This part replaces 17418-11H00.

17418-11H01

$14.75

.WASHER

17432-07G00

$2.61

.PIN

17482-03G00

$2.97

.BOLT,DRAIN

17415-20920

$6.75

GASKET (8.2X14X1)

09168-08016

$1.64

.O-RING

17435-33400

$13.99

.SCREW

02112-0616A

$1.43

.CAP

17432-11H00

Unavailable

.E-RING

08332-1108A

$1.77

.O-RING (D:2.4,ID:21.8)

09280-22001

$1.48

BOLT (6X30)

09103-06297

$3.58

BOLT

01547-0645A

$2.43
