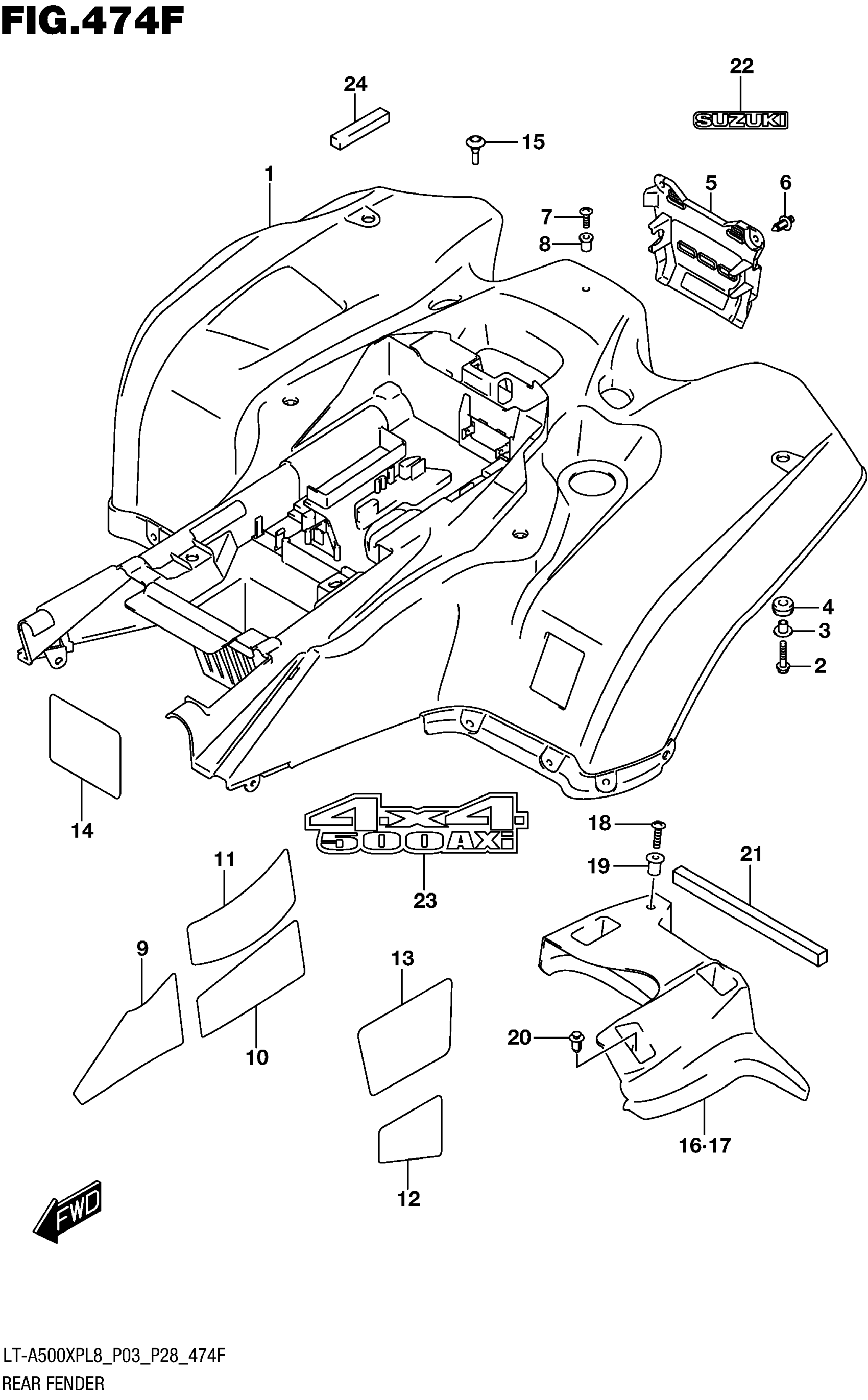

Suzuki LT-A500XP (AXI, RED/GREEN) (2018) REAR FENDER (LT-A500XPBL8 P33) Diagram

#

Description
Price

1

FENDER, REAR (BLACK) This part replaces 63111-31G61-QFA.

63111-31G70-QFA

$590.80

2

BOLT

01550-0625A

$1.97

3

WASHER

09169-06074

$7.95

4

CUSHION (11.5X32X12.2)

09320-11021

$4.17

5

COVER,REAR This part replaces 63251-31G00.

63251-31G01

$18.55

6

CLIP

09409-07333

$2.31

7

SCREW

02142-0520B

$1.78

8

NUT

09159-05019

$7.14

9

SHIELD, REAR FENDER

63122-31G20

$26.92

10

SHIELD, REAR FENDER

63123-31G20

$23.47

11

SHIELD, REAR FENDER

63124-31G20

$17.32

12

SHIELD, REAR FENDER

63126-31G20

$12.98

13

SHIELD, REAR FENDER

63127-31G20

$12.98

14

SHIELD, REAR FENDER

63128-31G20

$14.67

15

PLUG,RR BOX This part replaces 93115-03G00.

93115-03G01

$2.92

16

MUDGUARD, REAR RH (BLACK)

63351-31G00-291

$93.30

17

MUDGUARD, REAR LH (BLACK)

63361-31G00-291

$93.30

18

SCREW

02142-0525B

$2.34

19

NUT

09159-05045

$7.37

20

CLIP

09409-08335

$2.47

21

CUSHION, MUDGUARD REAR FENDER

92143-31G00

Unavailable

22

EMBLEM,"SUZUKI" This part replaces 68171-31GA0-1ZZ.

68171-31GA1-1ZZ

$4.42

23

EMBLEM,RR FENDE This part replaces 68171-31GF0-JLJ.

68171-31GF1-JLJ

$21.52

24

CUSHION, TOOL

47437-31GA0

$10.38
