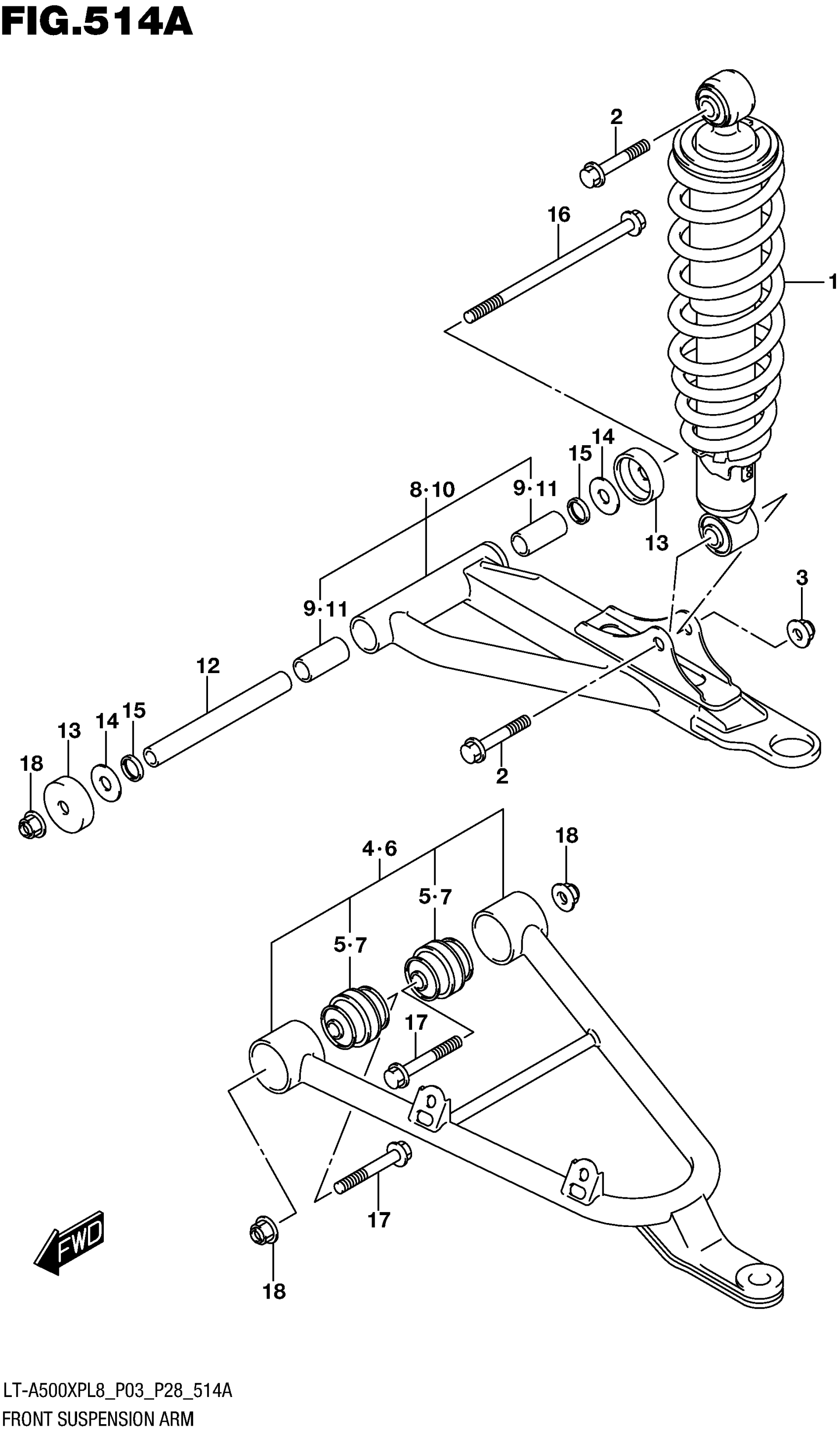

Suzuki LT-A500XP (AXI, RED/GREEN) (2018) FRONT SUSPENSION ARM Diagram

#

Description
Price

1

ABSORBER ASSY, FRONT SHOCK

52100-31G40-019

$191.27

1

(BLACK)

52100-31G40-019

$191.27

2

BOLT (10X48)

09103-10126

$4.50

3

NUT

09159-10115

$3.55

4

ARM SET, SUSPENSION LOWER RH

52410-31830

$319.08

5

.BUSH

09319-10055

$21.02

6

ARM SET, SUSPENSION LOWER LH

52420-31830

$319.08

7

.BUSH

09319-10055

$21.02

8

ARM SET,SUSPENSION UPR,R This part replaces 52430-31840.

52430-34810

$139.42

9

.BUSH

51236-31G00

$16.84

10

ARM SET,SUSPENSION UPR,L This part replaces 52440-31840.

52440-34810

$164.02

11

.BUSH

51236-31G00

$16.84

12

SPACER, FR SUSPENSION ARM

52455-31G10

$27.21

13

SEAL, FR SUSPENSION ARM PIVOT

51255-31G10

$16.82

14

WASHER

08211-10281

$2.03

15

SEAL

52454-45G00

$7.44

16

BOLT (10X160)

09103-10389

$9.78

17

BOLT (10X57)

09103-10255

$7.78

18

NUT

09159-10115

$3.55
