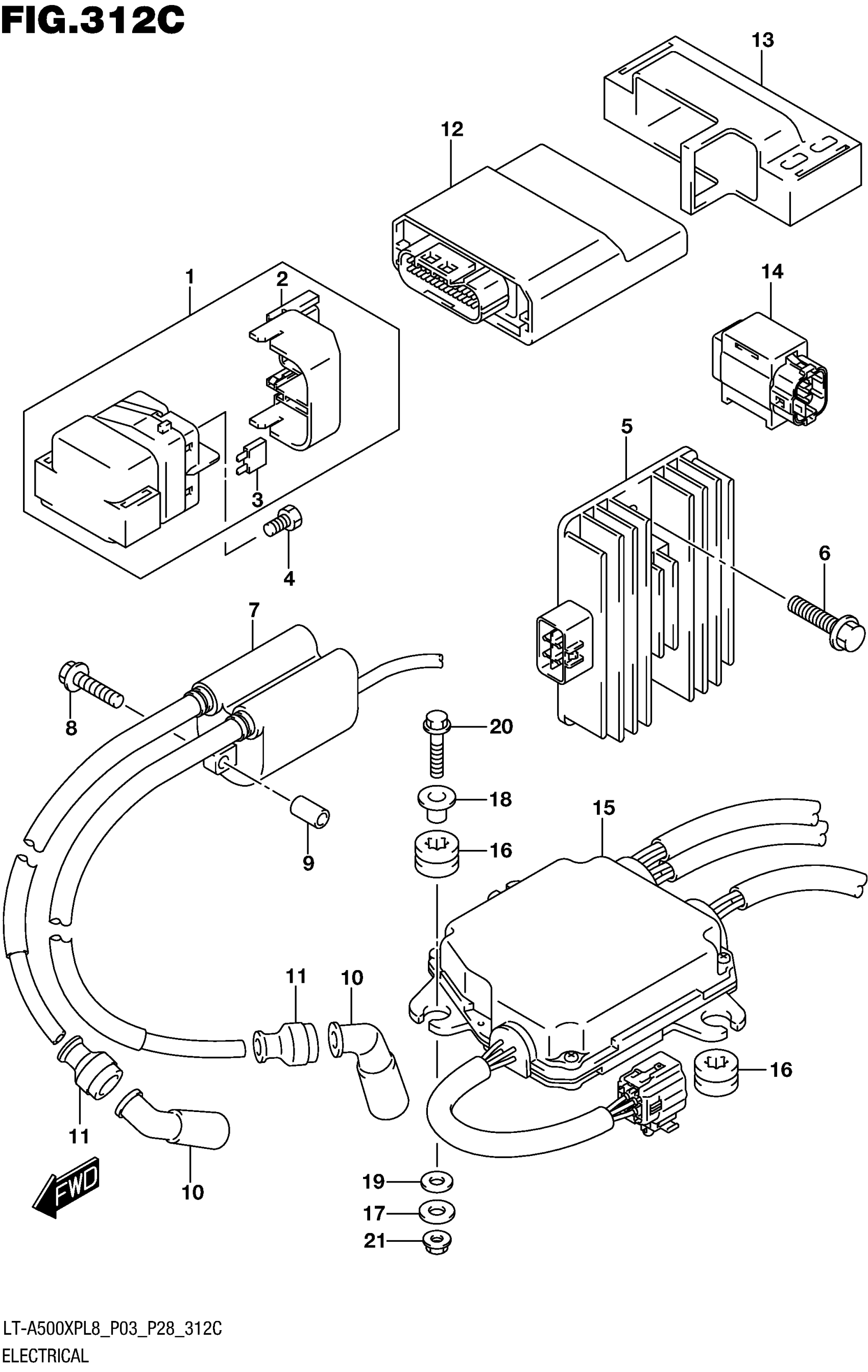

Suzuki LT-A500XP (AXI, RED/GREEN) (2018) ELECTRICAL (LT-A500XPL8 P33) Diagram

Description

Price

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

$92.59

.COVER, STARTER RELAY

31861-38G00

$4.88

.FUSE (30A)

09481-30501

$2.32

SCREW (6X8)

09128-06013

$1.49

RECTIFIER ASSY

32800-42F10

$238.72

BOLT

01550-0620A

$1.97

COIL ASSY, IGNITION This part replaces 33410-40H00.

33410-40H01

$106.57

BOLT

01547-0640A

$2.32

SPACER (6.4X10X18)

09180-06195

$3.68

CAP ASSY,SPARK PLUG

33510-31G10

$32.95

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

CONTROL UNIT, FI

32920-31HD0

$689.02

HOLDER, FI CONTROL UNIT

32980-31GA0

$42.80

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

CONTROL UNIT,EP This part replaces 32910-31H00.

32910-31H01

$929.08

CUSHION, EPS

32912-31G00

Unavailable

WASHER (6.5X15X1.0)

09160-06094

$1.49

WASHER

09169-06075

$3.68

WASHER

09169-06076

$3.05

BOLT

01550-0630A

$2.32

NUT

08316-1006A

$2.19
