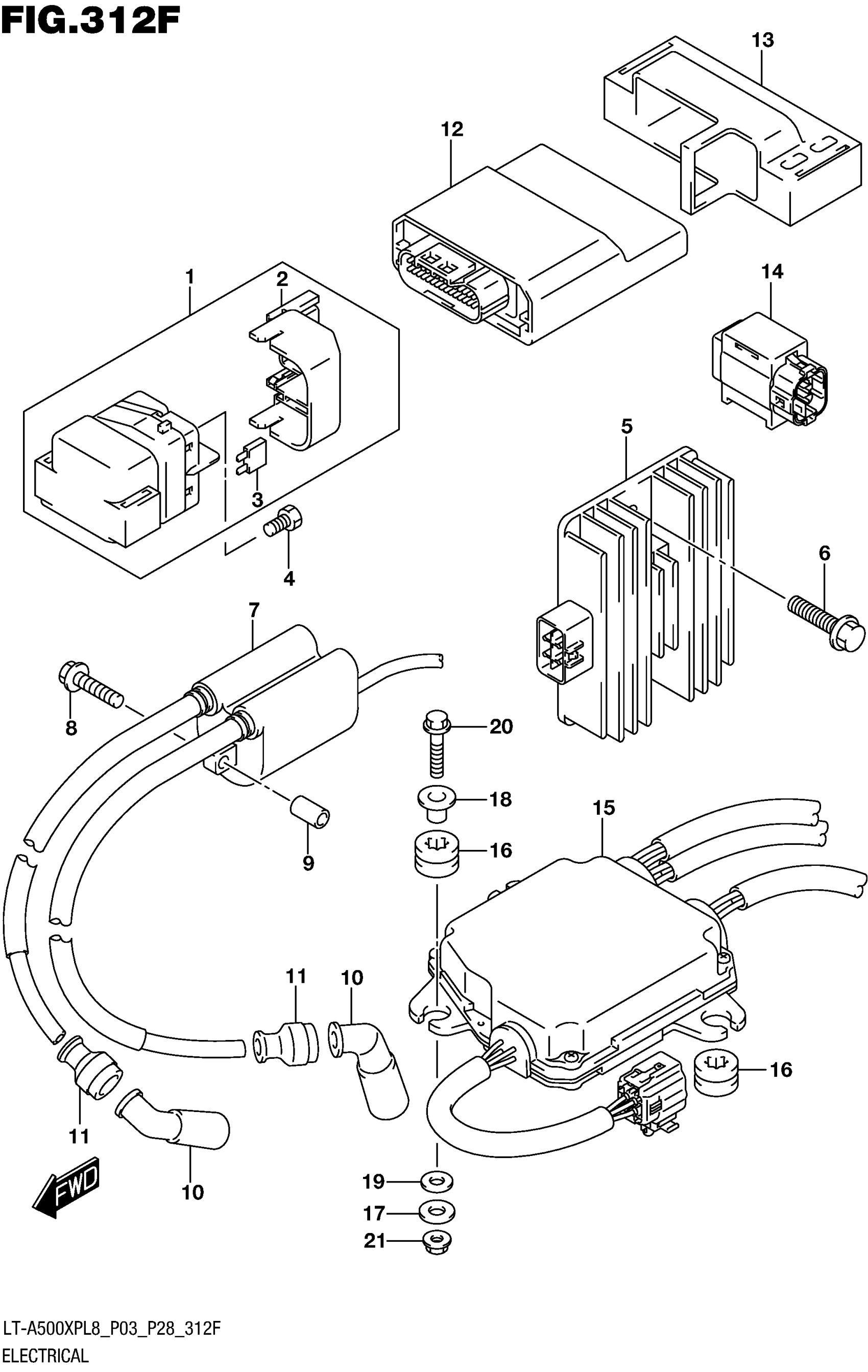

Suzuki LT-A500XP (AXI, RED/GREEN) (2018) ELECTRICAL (LT-A500XPBL8 P33) Diagram

Description

Price

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

$84.76

.COVER, STARTER RELAY

31861-38G00

$5.52

.FUSE (30A)

09481-30501

$2.34

SCREW (6X8)

09128-06013

$1.24

RECTIFIER ASSY

32800-42F10

$218.51

BOLT

01550-0620A

$1.97

COIL ASSY, IGNITION This part replaces 33410-40H00.

33410-40H01

$100.34

BOLT

01547-0640A

$2.31

SPACER (6.4X10X18)

09180-06195

$4.70

CAP ASSY,SPARK PLUG

33510-31G10

$30.16

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$3.97

CONTROL UNIT, FI

32920-31HD0

$752.27

HOLDER, FI CONTROL UNIT

32980-31GA0

$48.30

SENSOR ASSY,FUEL CUT

33960-06G10

$82.31

CONTROL UNIT,EP This part replaces 32910-31H00.

32910-31H01

$1,014.38

CUSHION, EPS

32912-31G00

Unavailable

WWASHER (6.5X15X1.0)

09160-06094

$1.43

WASHER

09169-06075

$4.00

WASHER

09169-06076

$2.88

BOLT

01550-0630A

$2.31

NUT

08316-1006A

$2.19
