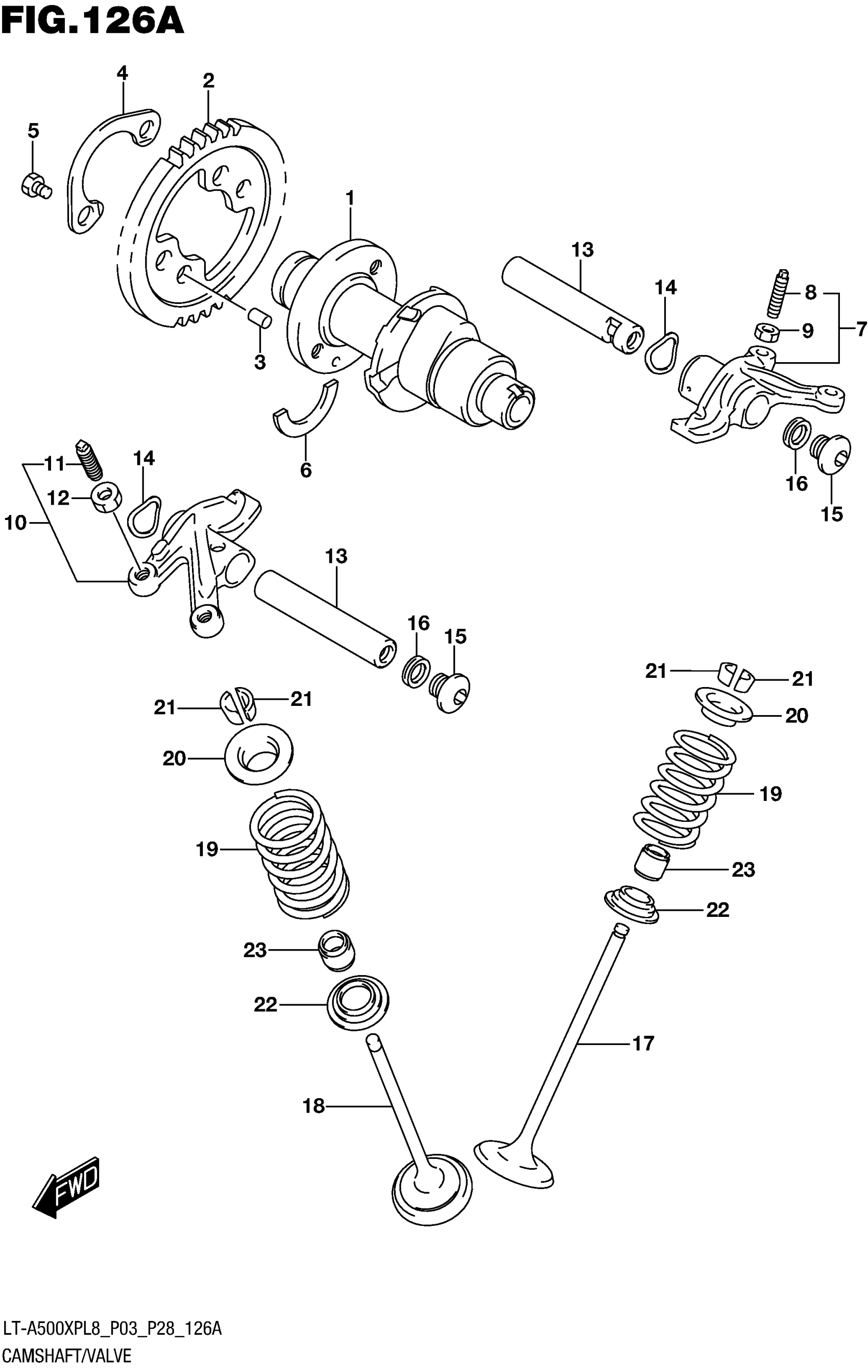

Suzuki LT-A500XP (AXI, RED/GREEN) (2018) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT

12710-31H00

$406.93

2

SPROCKET (NT:42)

12741-09F00

$55.00

3

PIN (5X8)

09261-05005

$1.49

4

WASHER,SPROCKET

12747-44B00

$2.72

5

BOLT (6X10.5)

09100-06166

$3.03

6

C-RING

09390-22002

$2.27

7

ARM, VALVE ROCKER INTAKE

12840-31H00

$122.58

8

.SCREW,TAPPET ADJUSTING

12842-17C50

$17.94

9

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

10

ARM, VALVE ROCKER EXHAUST

12850-31H00

$122.58

11

.SCREW,TAPPET ADJUSTING

12842-17C50

$17.94

12

.NUT,TAPPET ADJUSTING

12843-27A00

$2.94

13

SHAFT,VALVE ROCKER ARM,IN

12861-14D50

$30.93

14

WASHER

09164-12018

$1.49

15

PLUG

09248-14011

$2.98

16

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

17

VALVE,INTAKE

12911-14D10

$38.13

18

VALVE,EXHAUST

12912-14D01

$60.40

19

SPRING, VALVE

12921-03G00

$12.03

20

RETAINER,VALVE SPRING

12931-27A20

$8.12

21

COTTER, VALVE

12932-27A00

$2.26

22

SEAT,VALVE SPRING

12933-81400

$5.17

23

OIL SEAL (5X10X9.7)

09289-05011

$6.32
