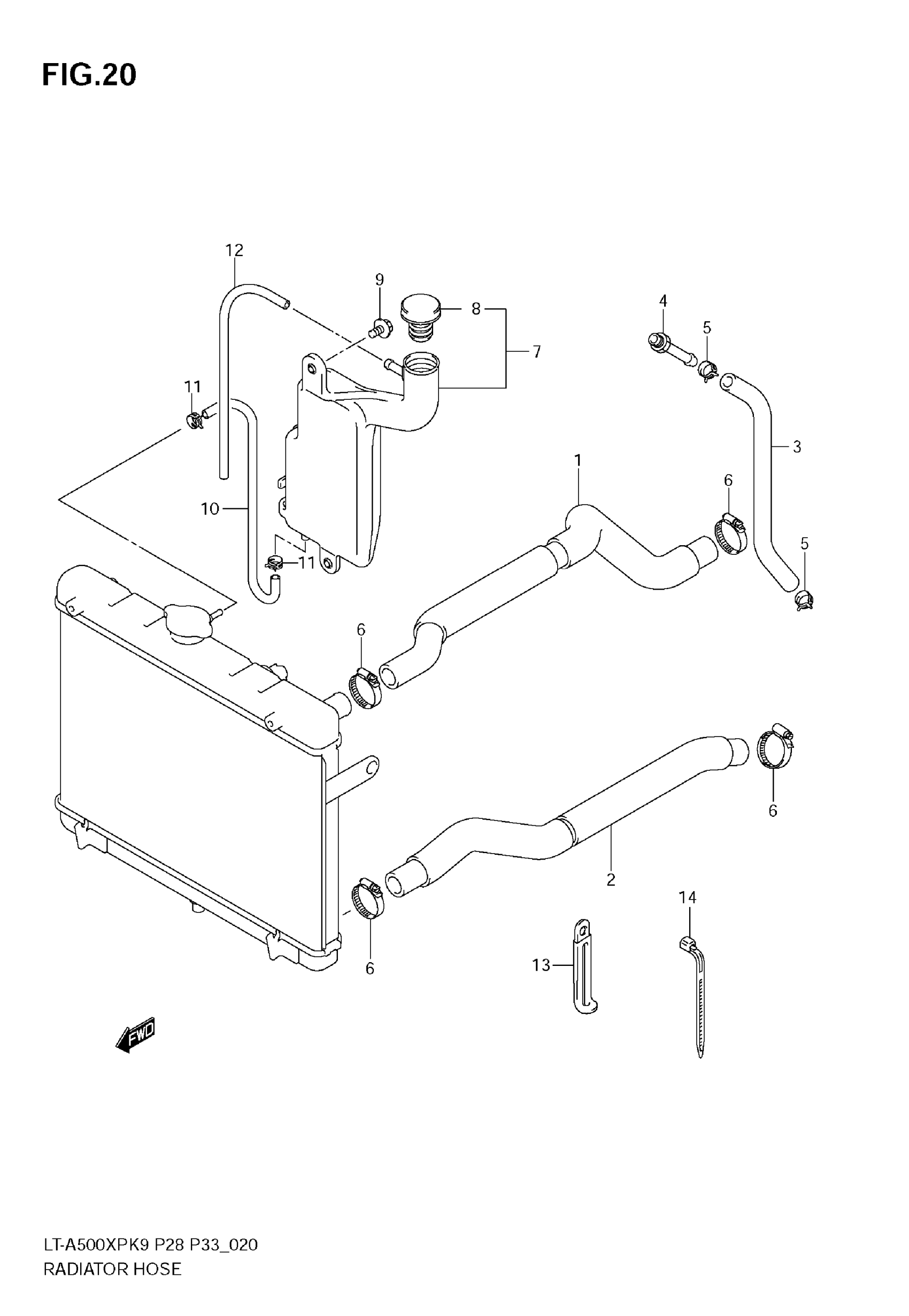

Suzuki LT-A500XP (2009) RADIATOR HOSE Diagram

#

Description
Price

1

HOSE, RADIATOR INLET

17851-31G00

$52.50

2

HOSE, RADIATOR OUTLET

17852-31G00

$52.50

3

HOSE, WATER BYPASS

17854-11H00

$35.78

4

UNION, BYPASS

09362-09011

$7.57

5

CLIP This part replaces 09401-12409.

09401-12414

$2.98

6

CLAMP

09402-32512

$13.97

7

TANK,RESERVOIR | Includes Item(s) 8 This part replaces 17910-31G00.

17911-34K00

$28.78

8

.CAP,RESERVOIR TANK

17931-02FA0

$5.09

9

BOLT, 6X16

09116-06168

$2.50

10

HOSE, RSVR TANK INLET This part replaces 17982-18G00.

17900-44810

$12.05

11

CLIP

09401-08411

$1.77

12

HOSE, OVERFLOW | L:600!360

09352-50901-600

$7.37

13

CLAMP

09404-06429

$1.82

14

CLAMP

09407-19401

$3.32
