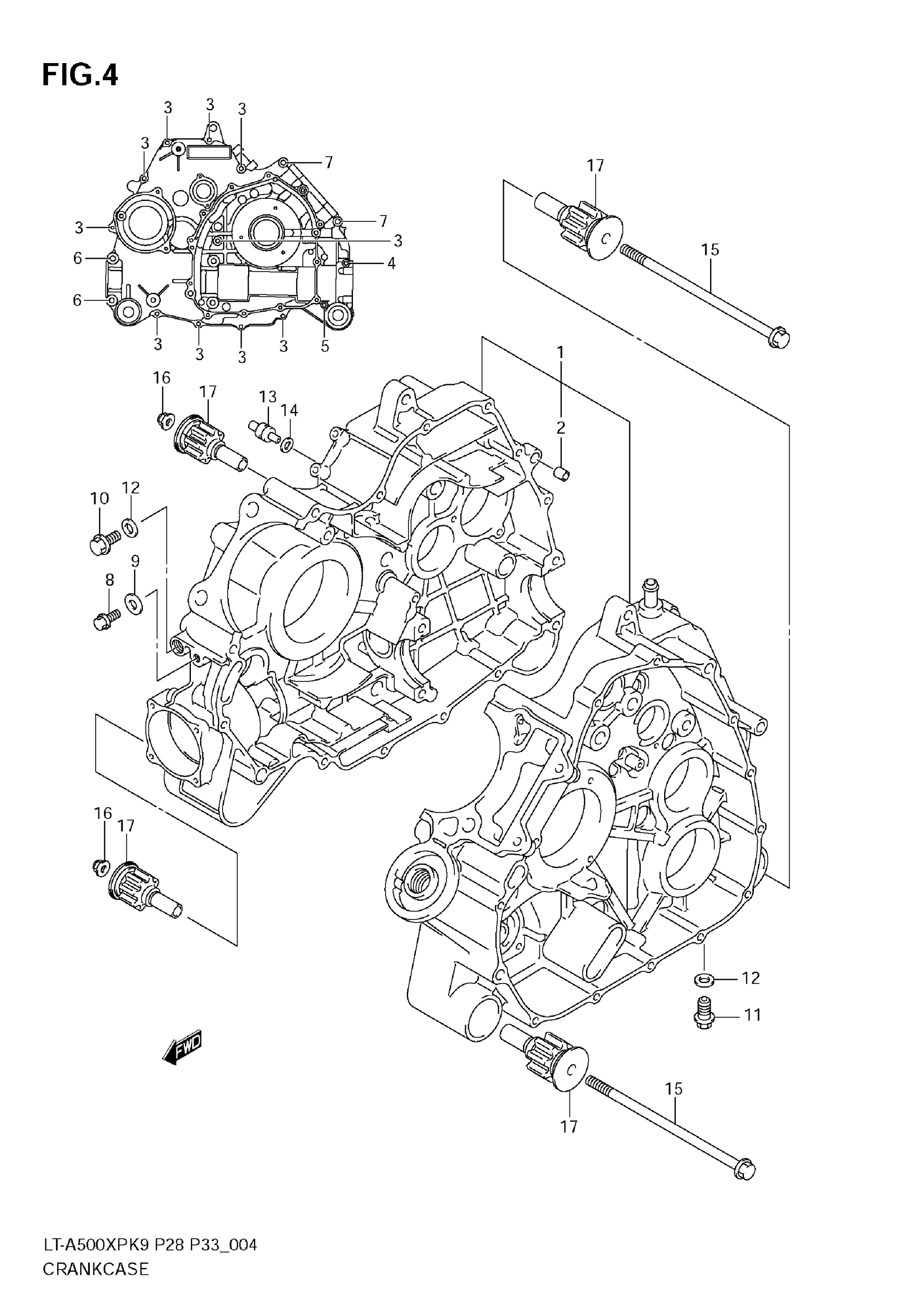

Suzuki LT-A500XP (2009) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | Includes Item(s) 2 - 7 This part replaces 11301-11870.

11301-11871

$1,827.50

2

PIN

04211-11169

$1.77

3

BOLT

01547-0650B

$2.77

4

BOLT

01547-0680B

$2.92

5

BOLT

01547-0690B

$2.93

6

BOLT

01550-0850B

Unavailable

7

BOLT

01550-0875B

Unavailable

8

PLUG, OIL GALLERY

01550-0812B

$2.73

9

GASKET (8.2X14X1)

09168-08016

$1.64

10

PLUG, OIL GALLERY

09247-12006

$2.80

11

PLUG, OIL DRAIN

09247-12104

$2.73

12

GASKET

09168-12002

$1.59

13

JET,T/M OIL GALLERY

09493-20014

$18.33

14

O-RING

09280-04004

$1.76

15

BOLT, ENG MTG (10X195)

09103-10118

$11.91

16

NUT, ENG MTG

09159-10115

$3.21

17

BUSH, ENG MTG

11651-31G10

$20.67
