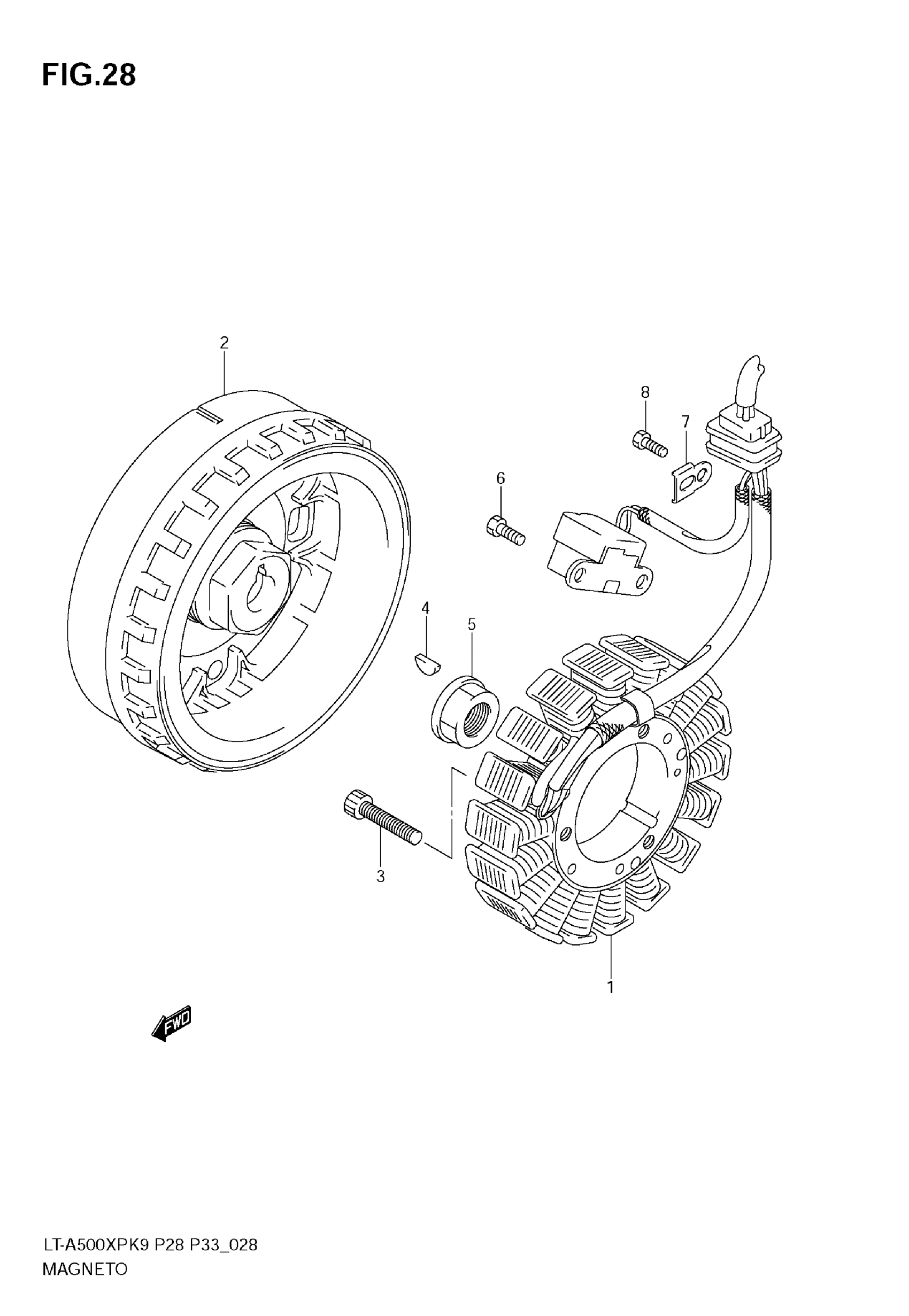

Suzuki LT-A500XP (2009) MAGNETO Diagram

#

Description

Price

1

STATOR ASSY This part replaces 32101-11H00.

32101-11H01

$554.60

2

ROTOR ASSY

32102-11H00

$704.90

3

BOLT, MAGNETO STATOR

07130-0635B

$3.37

4

KEY, MAGNETO ROTOR

08341-31059

$2.48

5

NUT,MAGNETO ROTOR

31792-11H00

$11.78

6

BOLT, SENSOR (5X10)

09100-05019

$1.93

7

CLAMP, MAGNETO LEAD

31497-45000

$1.92

8

BOLT, CLAMP NO.1 (5X10)

09100-05019

$1.93
