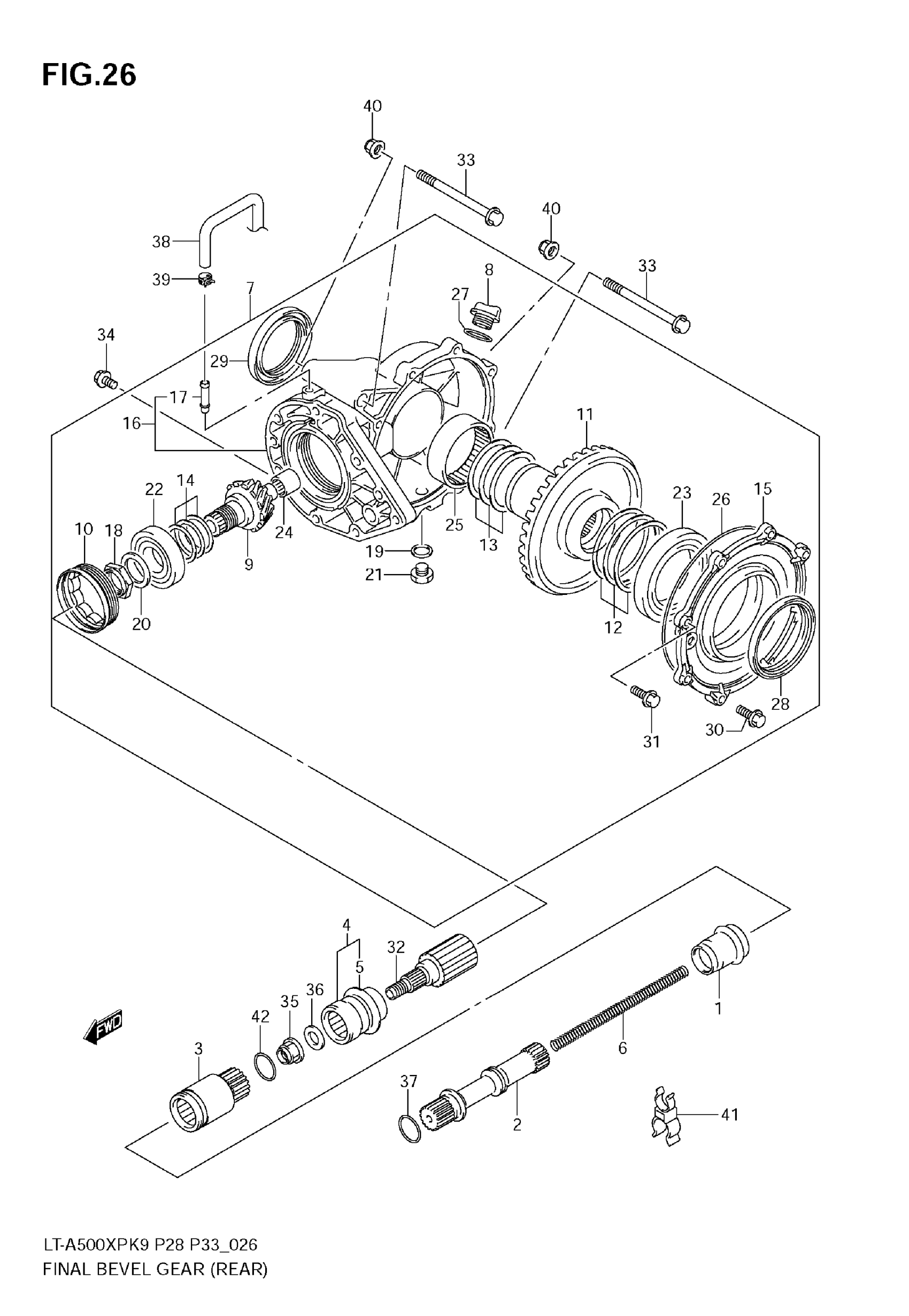

Suzuki LT-A500XP (2009) FINAL BEVEL GEAR (REAR) Diagram

#

Description
Price

1

BOOT,JOINT SHAFT This part replaces 27153-31G40.

27153-31G42

$9.22

2

SHAFT, REAR PROPELLER This part replaces 27155-31G20.

27155-31G30

$95.32

3

JOINT, REAR PROPELLER

27157-31G10

$63.07

4

COUPLING, RR PROP SHAFT | Includes Item(s) 5

27170-31G20

$119.18

5

PLATE, OUTPUT OIL SEAL

27592-31G10

$10.55

6

SPRING,REAR PROPELLER SHAFT

27192-31G10

$5.98

7

CASE ASSY, REAR FINAL GEAR | Includes Item(s) 8 - 31

27410-31G50

$1,457.92

8

PLUG, GEAR OIL FILLER

09259-20008-XC0

$7.50

9

GEAR, RR FINAL DRIVE

27311-31G50

$293.05

10

.STOPPER,FINAL DRIVE BEARING

27312-38F00

$52.73

11

GEAR, RR FINAL DRIVEN

27320-31G00

$321.27

12

SHIM SET, FINAL DRIVEN, L | T:0.30/0.35/0.40 0.50/0.60

27326-31810

$41.88

13

SHIM SET, FINAL DRIVEN, R | T:0.30/0.35/0.40 0.50/0.60

27327-31810

$38.95

14

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40 0.50/0.60

27445-24810

$28.18

15

CASE, REAR FINAL GEAR, L

27451-31G10

Unavailable

16

CASE, REAR FINAL GEAR, R

27460-31G10

Unavailable

17

UNION, CASE BREATHER

09364-08016

Unavailable

18

NUT, REAR FINAL DRIVE

09140-28006

$18.03

19

GASKET, OIL DRAIN | 13.8X18.8X4.8

09168-14002

$2.26

20

WASHER, RR FINAL DRIVE GEAR | 28X38X1.0

09181-28195

$4.77

21

PLUG, OIL DRAIN

09247-14013

$2.30

22

BEARING, FINAL DRIVE | 28X68X18

09262-28023

$127.87

23

BEARING, FINAL DRIVEN, L | 65X100X11.0

09262-65001

$140.28

24

BEARING (20X34X18) | 20X34X18

09263-20062

$46.98

25

BEARING, FINAL DRIVEN, R | 55X67X20

09263-55003

$108.12

26

O-RING, BEARING CASE, L | D:2.4,ID:61

09280-00029

$36.80

27

O-RING, GEAR OIL FILLER | D:3.1,ID:16.8

09280-17003

$1.65

28

SEAL, FINAL DRIVEN GEAR, L | 59X88X8

09283-59001

$26.80

29

SEAL, FINAL DRIVEN GEAR, R | 59X88X8

09283-59001

$26.80

30

BOLT (8X35) | 8X35

09103-08357

$4.17

31

BOLT, RR FINAL GEAR CASE | 10X45

09103-10294

Unavailable

32

SHAFT, RR FINAL DRIVE

27594-31G50

$195.10

33

BOLT, REAR FINAL GEAR | 10X110

09103-10148

$6.94

34

BOLT, REAR FINAL GEAR | 10X30

09103-10405

$3.87

35

NUT, RR PROP SHAFT COUP

09159-14010

$14.12

36

WASHER, REAR PROP SHAFT | 14X26X2.0

09181-14002

$2.93

37

.O-RING (D:3.1,ID:19.4) | D:3.1,ID:19.4

09280-20002

$1.93

38

HOSE, BREATHER

27491-31G00

$43.27

39

CLAMP, BREATHER CASE

09401-10403

$1.65

40

NUT, REAR FINAL GEAR

09159-10115

$3.55

41

CLAMP, BREATHER HOSE

09408-00235

$2.80

42

O RING (D:3.1,ID:26.4)

09280-26006

$2.76
