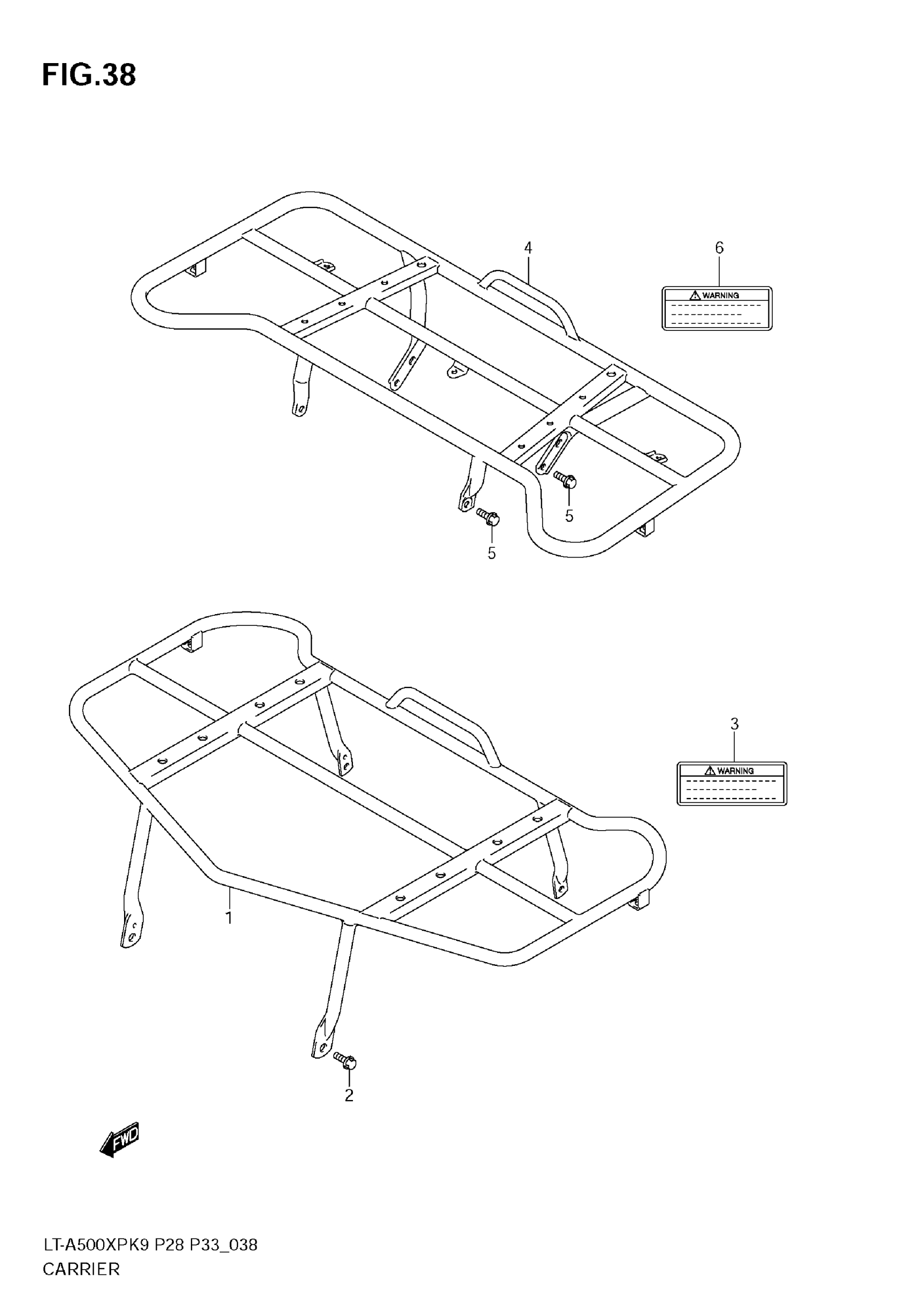

Suzuki LT-A500XP (2009) CARRIER Diagram

#

Description

Price

1

CARRIER, FRONT (BLACK) | LT-A500XP This part replaces 46410-31G12-YSN.

46410-31G13-YSN

$266.53

1

CARRIER,FRONT This part replaces 46410-31G12-YFS.

46410-31G13-YFS

Unavailable

2

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

3

LABEL, FRONT CARRIER | E33

68381-31G00

$9.28

3

LABEL, FRONT CARRIER (FRENCH) | E28

68385-31G00

Unavailable

4

CARRIER, REAR (BLACK) | LT-A500XP This part replaces 46310-31GB1-YSN.

46310-31GB2-YSN

$309.28

4

CARRIER,REAR This part replaces 46310-31GB1-YFS.

46310-31GB2-YFS

$316.62

5

BOLT (8X16) This part replaces 09103-08283.

09103-08570

$2.34

6

LABEL, REAR CARRIER | E33

68381-31G10

$8.05

6

LABEL, REAR CARRIER (FRENCH) | E28

68385-31G10

Unavailable
