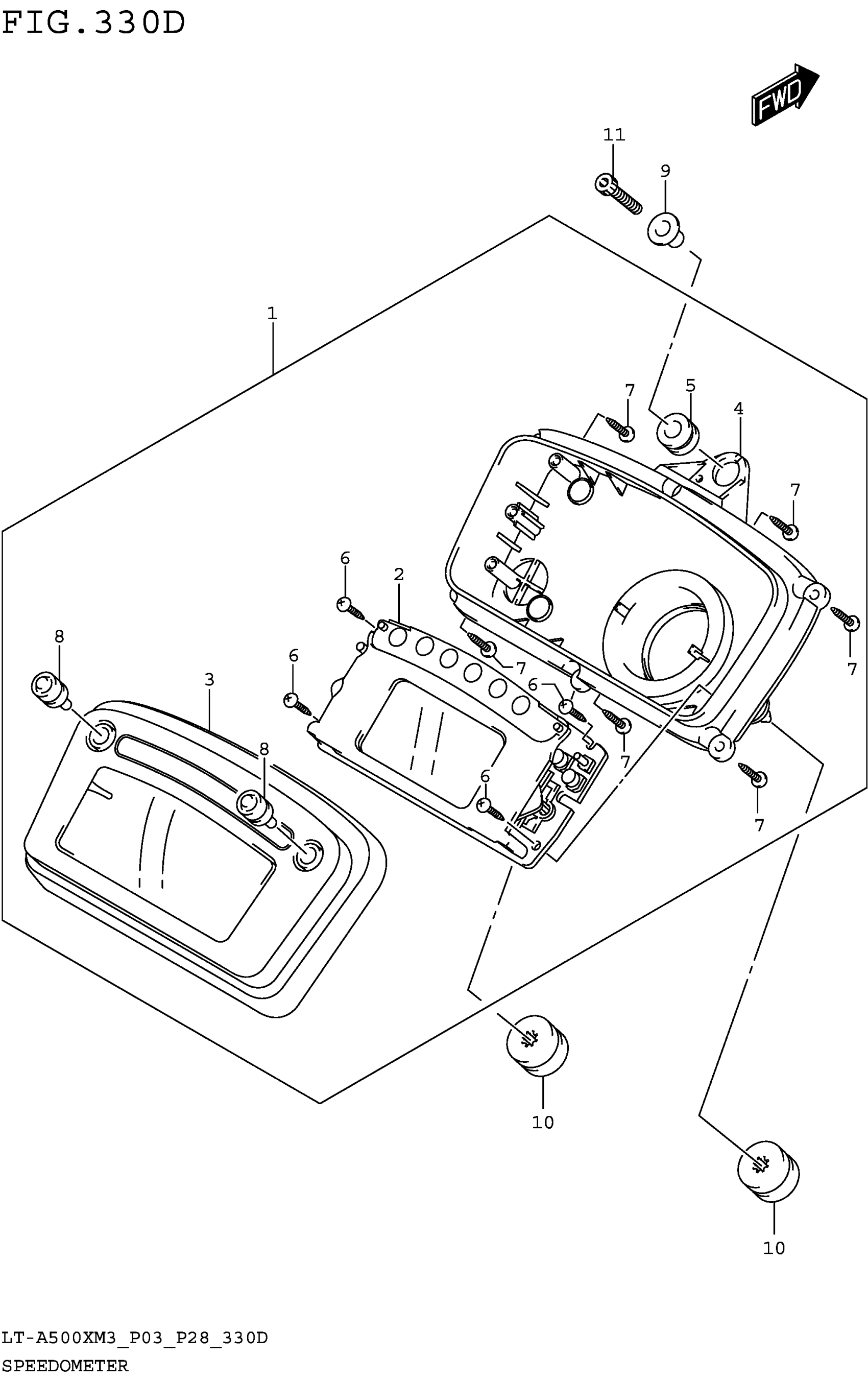

Suzuki LT-A500XM3 (2023) SPEEDOMETER (LT-A500XPZM3 P03) Diagram

#

Description
Price

1

SPEEDOMETER ASSY

34100-35K11

$272.98

2

.SPEEDOMETER

34120-35K11

$245.12

3

.CASE, UPPER | UPPER

34150-31G30

$64.55

4

.CASE, LOWER | LOWER

34111-31G30

$15.00

5

.CUSHION, RUBBER

34995-31G30

$2.45

6

.SCREW (3X10)

34147-31G30

$1.75

7

.SCREW (3X12)

34149-31G30

Unavailable

8

.SWITCH RUBBER

34124-31G30

$7.79

9

SPACER, SPEEDOMETER

34187-47F00

$7.85

10

CUSHION,SPEEDOMETER

34955-13E01

$2.92

11

BOLT

07130-0520B

$2.53
