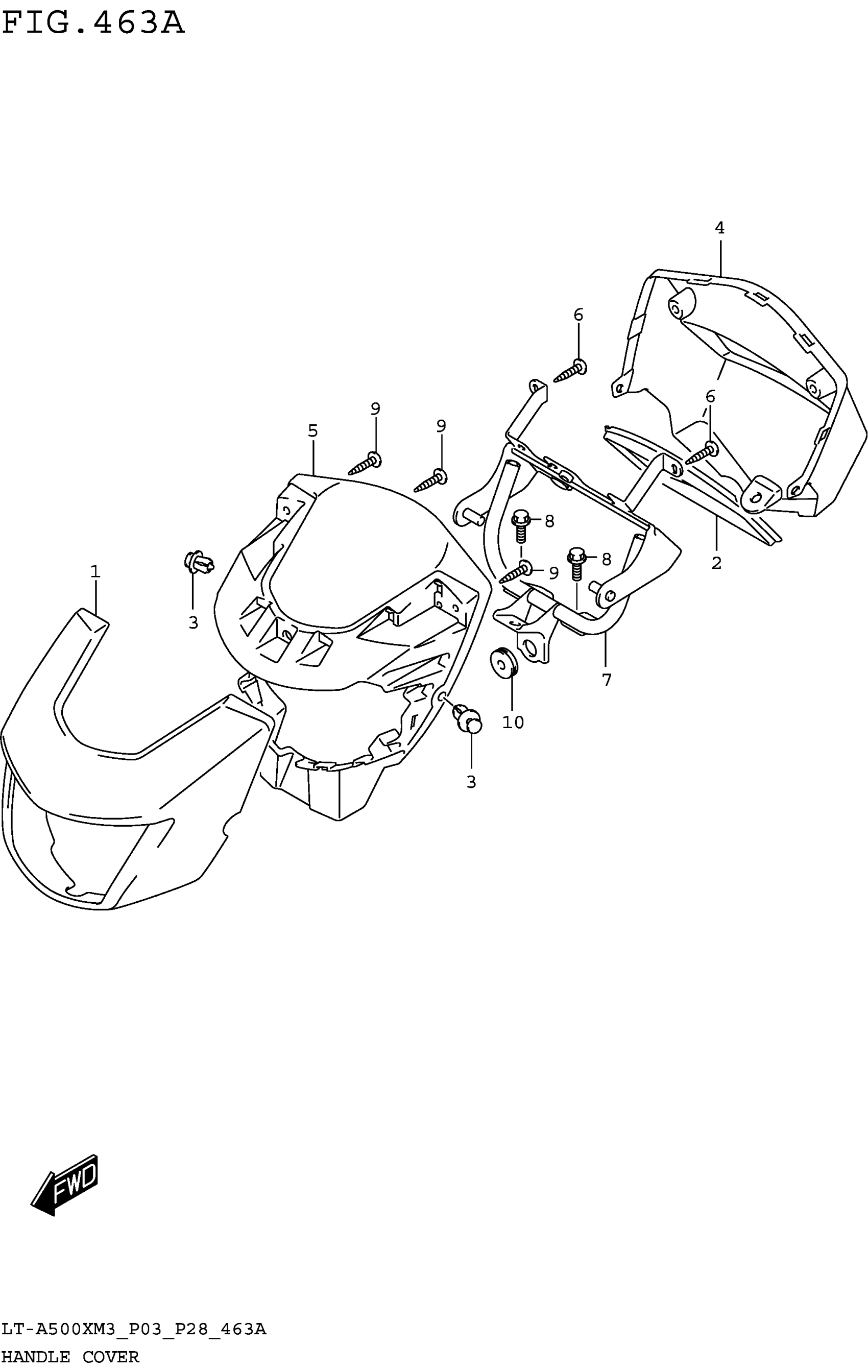

Suzuki LT-A500XM3 (2023) HANDLE COVER Diagram

#

Description

Price

1-1

COVER, HANDLE FRONT (GREEN)

56311-34K03-YLG

$18.02

1-2

COVER, HANDLE FRONT (RED)

56311-34K03-YT9

$20.17

1-3

COVER, HANDLE FRONT (KANATI)

56311-34K12-QTM

$146.42

1-4

COVER, HANDLE FRONT (GRAY)

56311-34K22-QTF

$117.25

2

MOLDING, HANDLE COVER

56317-34K00

$9.58

3

CLIP

09409-06328

$3.00

4

COVER,HANDLE RE This part replaces 56321-34K03.

56321-34K04-291

$14.90

5

COVER,HANDLE LO This part replaces 56331-34K03.

56331-34K04-291

$20.19

6

SCREW

03141-0525A

$1.43

7

BRACE,HANDLE COVER This part replaces 56160-34K00.

56160-34K20

$80.24

8

BOLT (8X12)

01550-0812A

$2.38

9

SCREW

03541-0512A

$1.41

10

CUSHION (8x26x7)

09320-08018

$2.82
