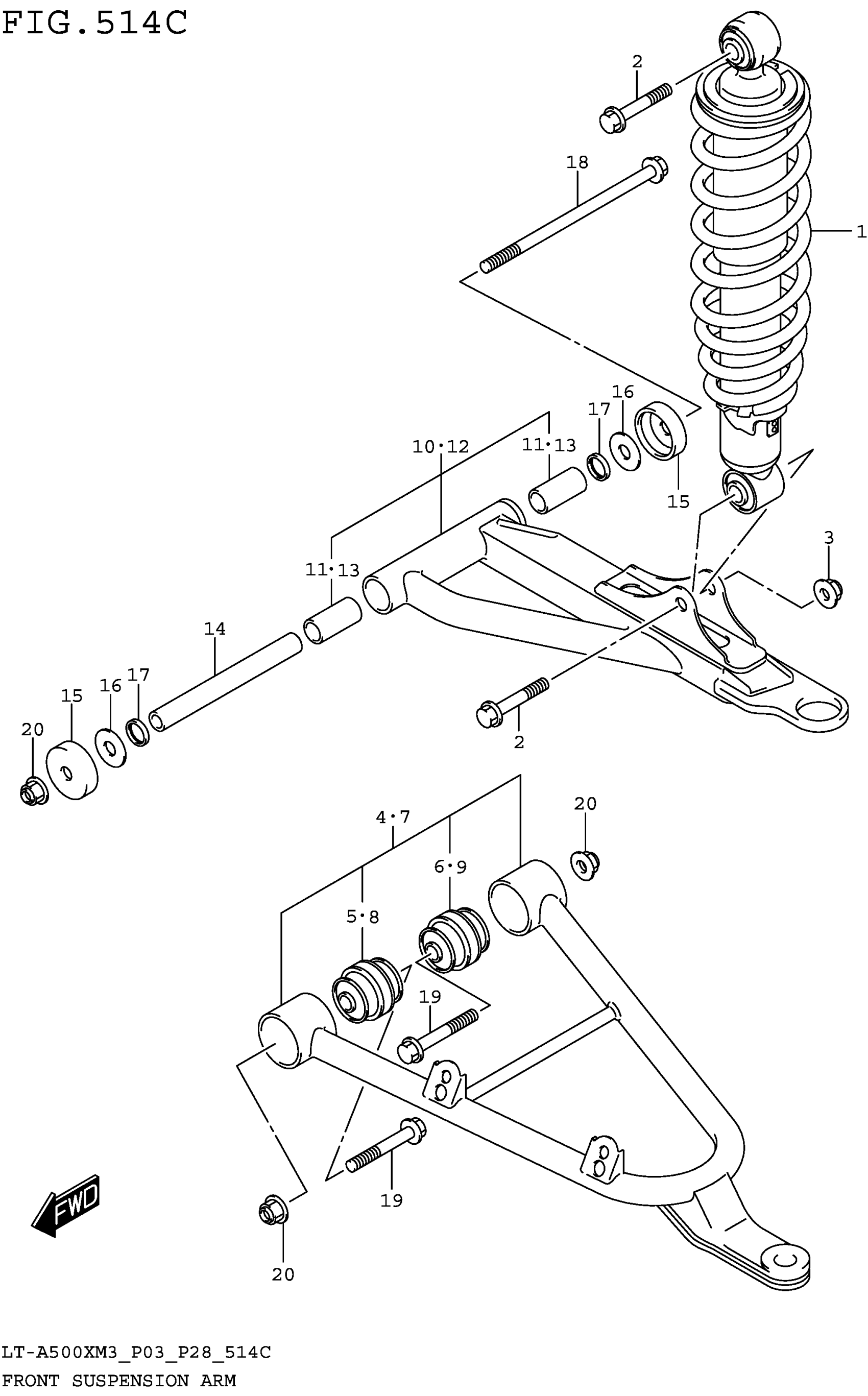

Suzuki LT-A500XM3 (2023) FRONT SUSPENSION ARM (LT-A500XPM3 P33) Diagram

#

Description
Price

1

ABSORBER ASSY,F This part replaces 52100-34K30.

52100-34K30-019

$197.45

2

BOLT (10X48)

09103-10126

$4.50

3

NUT (M10)

09159-10115

$3.55

4

ARM SET,SUSPENSION LOWER,RH This part replaces 52410-34810.

52410-34820

$195.93

5

.BUSH (10X35.1X38)

09319-10055

$21.02

6

.BUSH, SPNSN ARM

61240-09F10

$29.25

7

ARM SET,SUSPENSION LOWER,LH This part replaces 52420-34810.

52420-34820

$161.45

8

.BUSH (10X35.1X38)

09319-10055

$21.02

9

.BUSH, SPNSN ARM

61240-09F10

$29.25

10

ARM SET,SUSPENSION UPR,R This part replaces 52430-31840.

52430-34810

$139.42

11

.BUSH, SUSPENSION ARM PIVOT

51236-31G00

$16.84

12

ARM SET,SUSPENSION UPR,L This part replaces 52440-31840.

52440-34810

$164.02

13

.BUSH, SUSPENSION ARM PIVOT

51236-31G00

$16.84

14

SPACER, FR SUSPENSION ARM | PIVOT

52455-31G10

$27.21

15

SEAL, FR SPNSN ARM PIVOT

51255-31G10

$16.82

16

WASHER

08211-10281

$2.03

17

SEAL, SPNSN ARM PVT INNER DUS

52454-45G00

$7.44

18

BOLT (10X160)

09103-10389

$9.78

19

BOLT (10X57)

09103-10255

$7.78

20

NUT (M10)

09159-10115

$3.55
