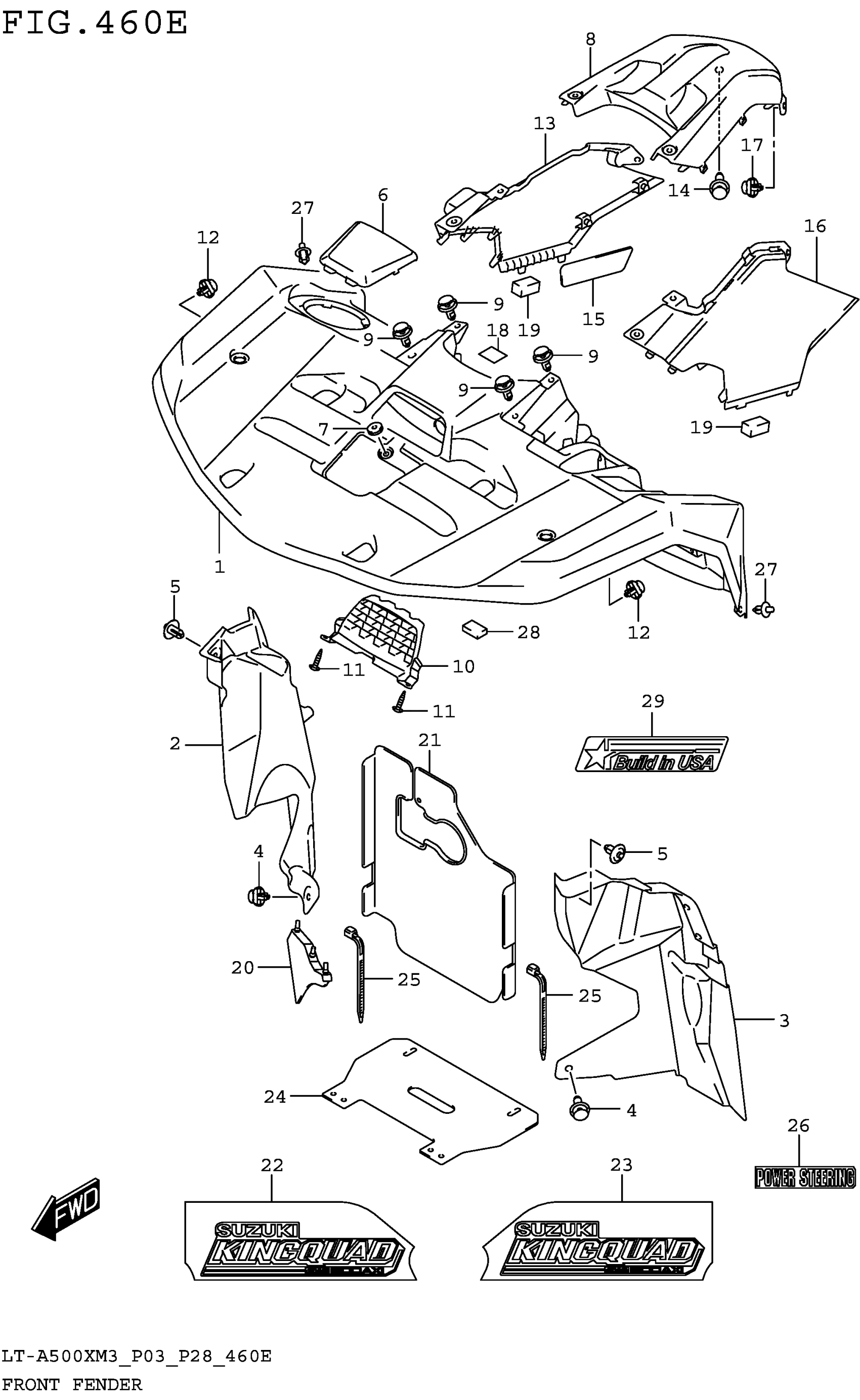

Suzuki LT-A500XM3 (2023) FRONT FENDER (LT-A500XPZM3 P03) Diagram

#

Description
Price

1-1

FENDER, FRONT (GREEN)

53111-34K01-YLG

$635.03

1-2

FENDER, FRONT (RED)

53111-34K01-YT9

$635.03

1-3

FENDER, FRONT (KANATI)

53111-34K20-QTM

$1,082.07

1-4

FENDER, FRONT (GRAY)

53111-34K40-QTF

$899.03

2

MUDFLAP, INNER RH

53411-34K01

$20.83

3

MUDFLAP, INNER LH

53421-34K01

$20.72

4

CLIP

09409-08008

$1.87

5

CLIP (D:2.4,ID:23.7)

09409-07333

$2.31

6-1

LID, FENDER FRONT (GREEN)

53341-31G06-YLG

$10.28

6-2

LID, FENDER FRONT (RED)

53341-31G06-YT9

$10.61

6-3

LID, FENDER FRONT (KANATI)

53341-31GC5-QTM

$64.62

6-4

LID, FENDER FRONT (GRAY)

53341-31G54-QTF

$44.82

7

CUSHION (8x26x7)

09320-08018

$3.04

8

FENDER, CENTER

53119-34K04

$120.33

9

CLIP

09409-08008

$1.87

10

COVER, INNER

53212-34K03

$10.77

11

SCREW

03541-0516A

$1.49

12

CLIP

09409-08008

$1.87

13-1

COVER, SIDE RH (GREEN)

53112-34K03-YLG

$78.85

13-2

COVER, SIDE RH (RED)

53112-34K03-YT9

$80.48

13-3

COVER, SIDE RH (KANATI)

53112-34K12-QTM

$251.57

13-4

COVER, SIDE RH (GRAY)

53112-34K22-QTF

$177.48

14

CLIP

09409-08008

$1.87

15

SHIELD, SIDE COVER NO.2

53113-34K00

$8.72

16-1

COVER, SIDE LH (GREEN)

53122-34K03-YLG

$123.17

16-2

COVER, SIDE LH (RED)

53122-34K03-YT9

$106.01

16-3

COVER, SIDE LH (KANATI)

53122-34K12-QTM

$251.57

16-4

COVER, SIDE LH (GRAY)

53122-34K22-QTF

$177.48

17

CLIP

09409-08008

$1.87

18

CUSHION | (10X20X4) This part replaces 47829-10F00.

44612-13600

$4.65

19

CUSHION, COVER SIDE

53114-34K00

$1.70

20

MUDGUARD, SIDE RH

53116-31G01

$15.47

21

COVER, CENTER

53117-31G01

$30.10

22

TAPE, COVER SIDE RH (GRAY/RED

68151-35K00-BM6

$19.43

23

TAPE, COVER SIDE LH (GRAY/RED

68152-35K00-BM6

$19.43

24

GUARD, RADIATOR

53113-31G10

$19.43

25

CLAMP (L:125)

09407-14403

$2.26

26

EMBLEM, POWER-STEERING (GRAY)

68151-31GD1-BM7

$10.03

27

CLIP

09409-08008

$1.87

28

CUSHION, REAR FENDER EXT PLAT

63113-48G00

$11.00

29

EMBLEM,FRONT FENDER (GRAY,GRA

68151-34KA0-BM7

$18.63
