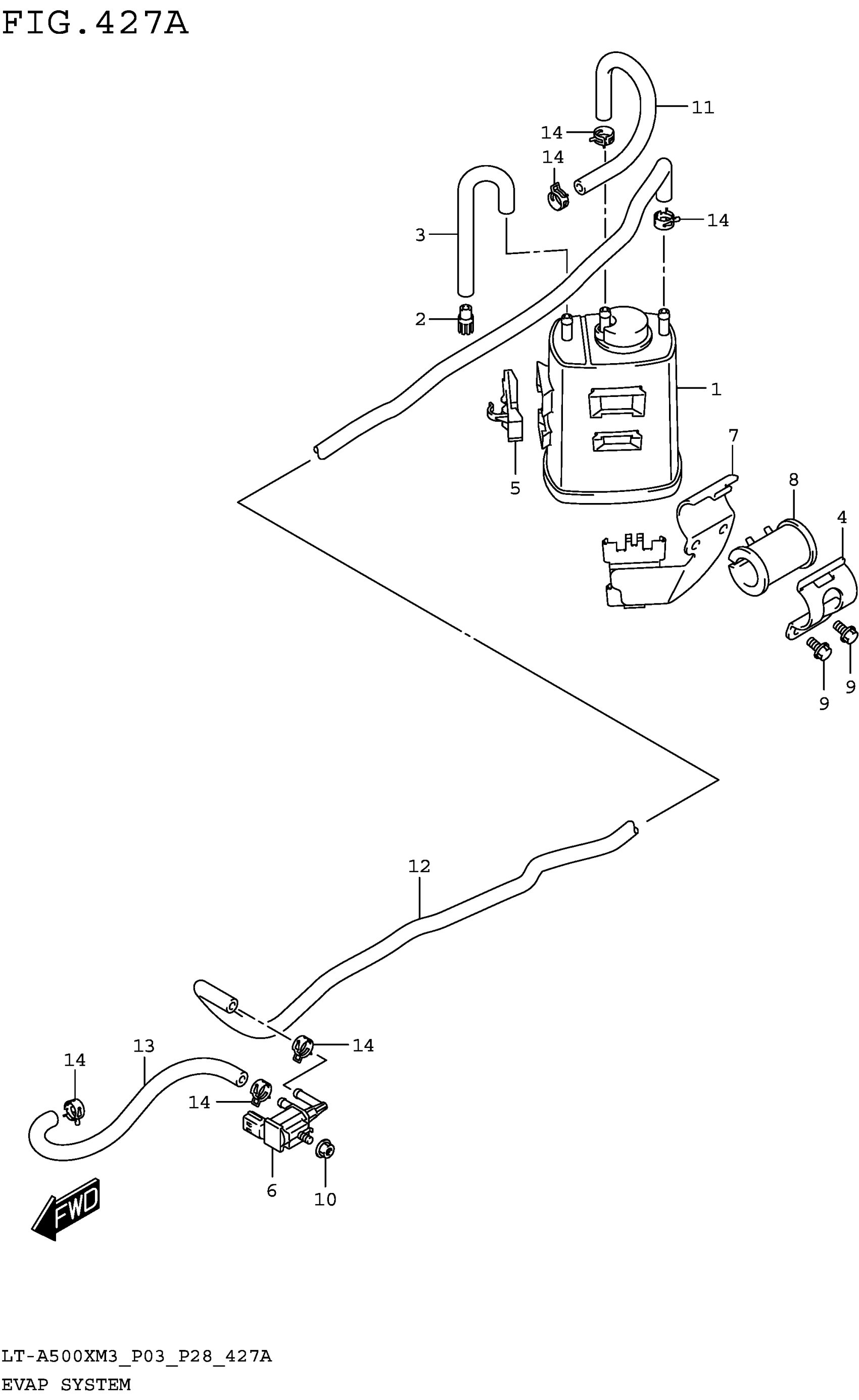

Suzuki LT-A500XM3 (2023) EVAP SYSTEM (LT-A500XPM3 P33) Diagram

#

Description
Price

1

CANISTER

18560-81AA0

$139.03

2

FILTER, PURGE AIR SUCTION

18566-60G00

Unavailable

3

HOSE, CANISTER SUCTION

18567-72L00

$11.53

4

HOLDER, CANISTER BRACKET

18578-34K00

$30.96

5

CLAMP, CANISTER SUCTION

18581-72L00

$2.60

6

VALVE,CANISTER PURGE

18117-52G10

$168.22

7

BRACKET, CANISTER

18570-34K00

$46.87

8

CUSHION, CANISTER BRACKET

18571-34K00

$38.02

9

BOLT

01550-0612A

$1.97

10

NUT (6X12)

08316-1006A

$2.19

11

HOSE, CANISTER SURGE

18561-34K00

$29.18

12

HOSE, CANISTER PURGE NO.1

18562-34K00

$77.62

13

HOSE, CANISTER PURGE NO.2

18563-35K00

$23.10

14

CLIP (ID:10.5,H:8)

09401-10409

$2.28
