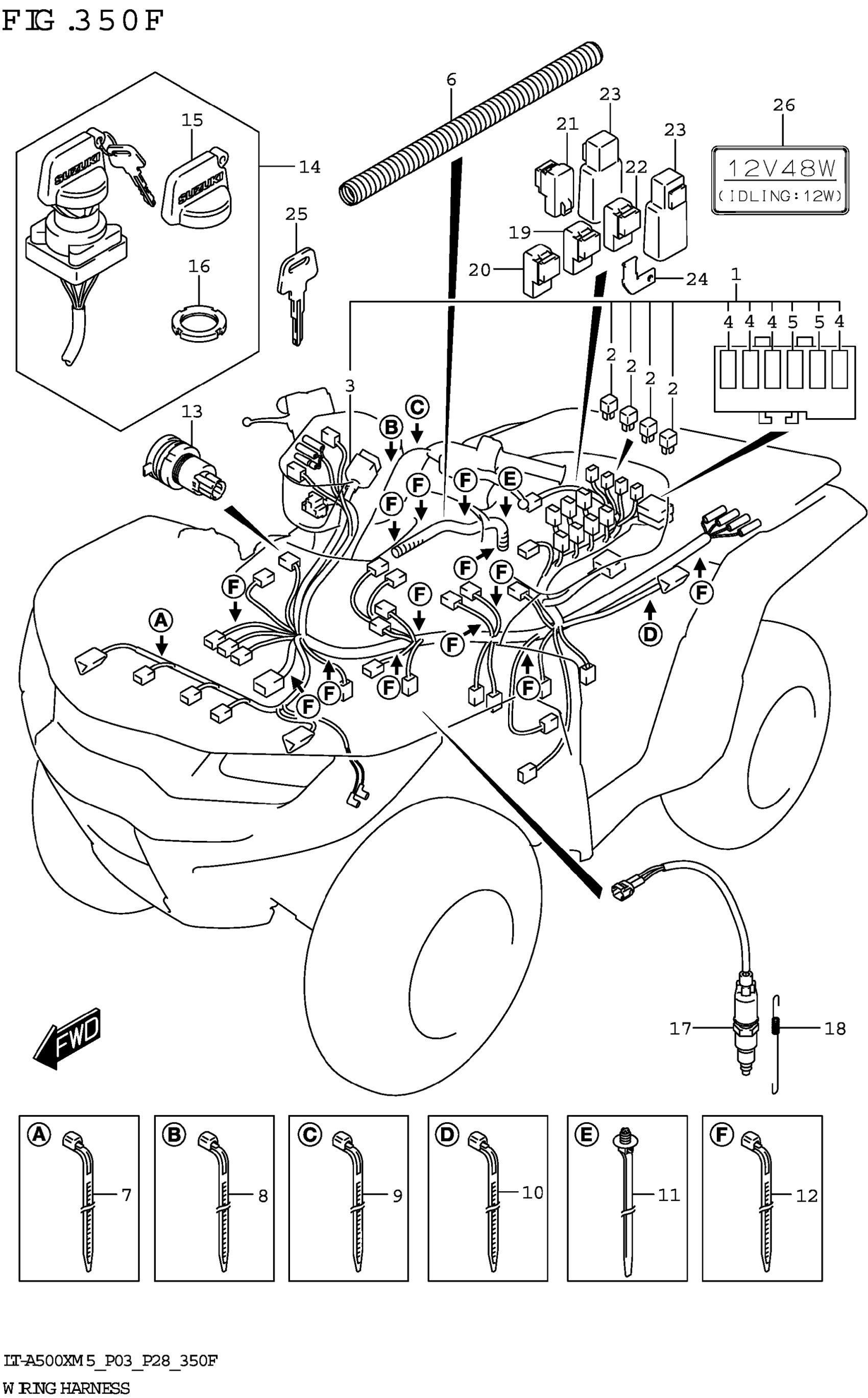

Suzuki LT-A500XM2 (2025) WIRING HARNESS ((LT-A500XP,LT-A500XPZ):(P03,P28)) Diagram

#

Description
Price

1

HARNESS, WIRING

36610-35K74

$592.37

2

.RECTIFIER ASSY

32800-16A00

$23.07

3

.COVER, SPEED

36618-31G00

Unavailable

4

.FUSE (10A)

09481-10501

$2.06

5

.FUSE (15A)

09481-15501

$2.02

6

GUIDE, WIRING HARNESS

36619-31G00

$18.08

7

CLAMP (L:95)

09407-11401

$2.63

8

CLAMP (L:187)

09407-18401

$2.07

9

CLAMP (L:165)

09407-18402

$2.19

10

CLAMP (L:125)

09407-14403

$2.26

11

CLAMP (L:170)

09407-17403

$4.91

12

CLAMP (L:190)

09407-19401

$3.05

13

TERMINAL,POWER SOURCE

38850-03G20

$26.58

14

SWITCH ASSY,IGNITION

37110-34K10

$68.91

15

.MASCOT,KEY

37142-19B01

$4.99

16

.NUT,IGNITION SWITCH

37112-24500

$11.48

17

SWITCH ASSY,STOP LAMP

37740-38F01

$115.27

18

SPRING

09443-06080

$4.73

19

RELAY ASSY | FOR FUEL PUMP

38740-31G11

$27.46

20

RELAY ASSY | FOR BRAKE PARKING

38740-31G11

$27.46

21

RELAY ASSY | FOR DEF LOCK

38740-31G11

$27.46

22

RELAY ASSY | FOR BACKUP LAMP

38740-31G11

$27.46

23

RELAY ASSY | FOR DRIVE

38860-65G00

$45.80

24

BRACKET, SIDE STAND RELAY | OPT

38741-05300

Unavailable

25-1

KEY,BLANK (TYPE:C) | OPT

37146-19B00

$8.07

25-2

KEY,BLANK (TYPE:D) | OPT

37146-19B10

$8.07

25-3

KEY,BLANK (TYPE:E) | OPT

37146-19B20

$8.07

25-4

KEY,BLANK (TYPE:F) | OPT

37146-19B30

$8.07

26

LABEL,MAX AMP

39412-34K20

Unavailable
