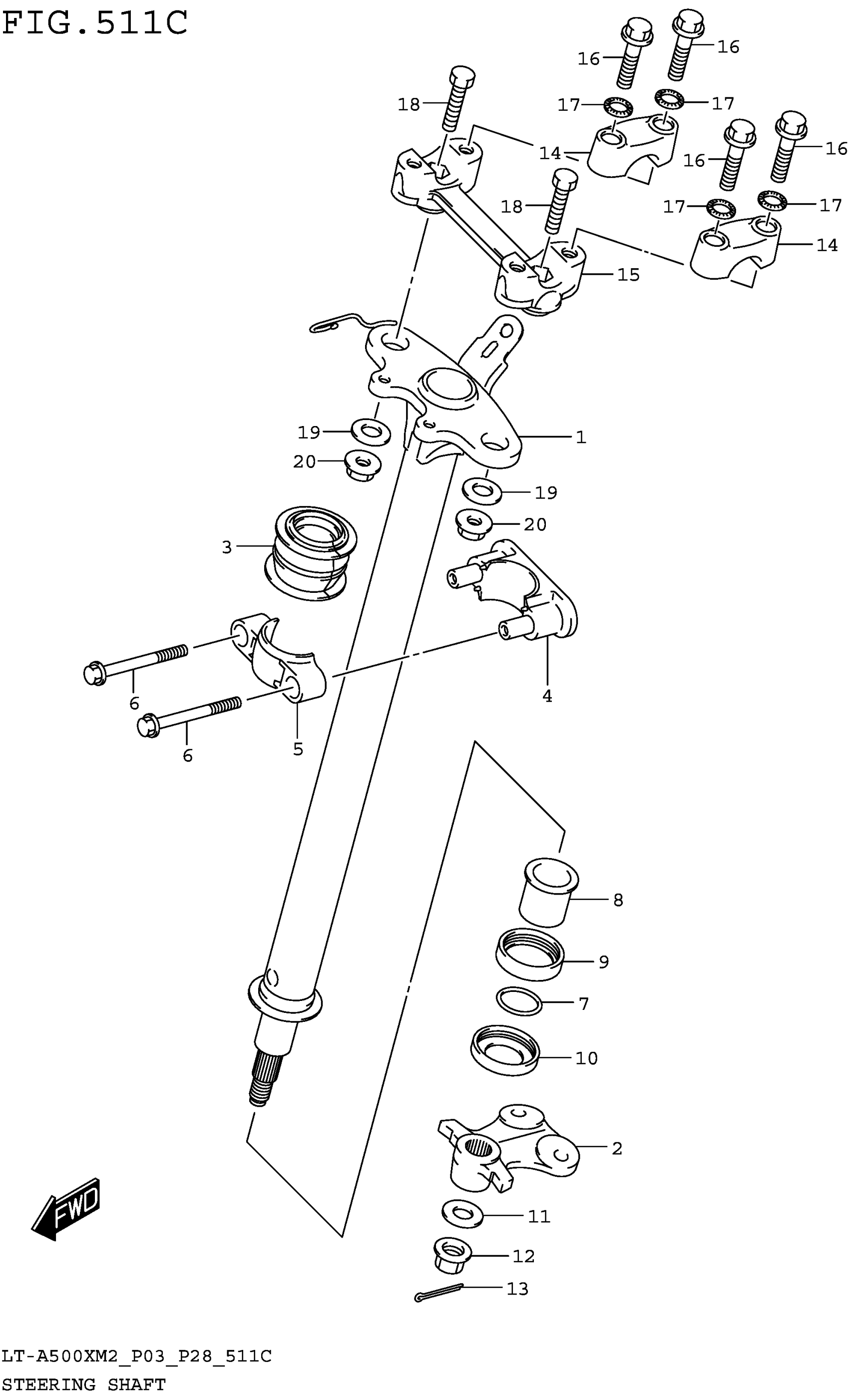

Suzuki LT-A500XM2 (2025) STEERING SHAFT (LT-A500XM2 P33) Diagram

#

Description
Price

1

SHAFT, STEERING

51650-34K00

$177.57

2

PLATE, STEERING ARM

51653-34K00

$94.48

3

BUSH, STEERING SHAFT HOLDER

51678-31G01

$10.66

4

HOLDER, STEERING SHAFT

51670-31G00

$40.32

5

HOLDER, STEERING SHAFT FRONT

51673-31G00

$28.80

6

BOLT

01550-0875A

$3.25

7

O RING

09280-24014

Unavailable

8

BUSH, STEERING SHAFT LOWER | (24X30X32.2)

51661-31G00

$27.50

9

SEAL, DUST | STEERING SHAFT

51662-31G01

$9.41

10

SEAL, DUST | STEERING LOWER

51663-31G11

$14.08

11

WASHER (14.5X30X3.2)

09160-14062

$2.79

12

NUT

09159-14027

$15.28

13

PIN

04111-2020A

$1.22

14

CLAMP, HANDLE HOLDER UPPER

56211-09F10

$8.63

15

CLAMP, HANDLE HOLDER

56211-31G10

$48.73

16

BOLT (8X35)

01550-0835A

$2.80

17

WASHER

09164-08015

$2.90

18

BOLT

01500-1035A

$4.03

19

WASHER (10.5X22X2.3) This part replaces 09160-10060.

09160-10039

$2.24

20

NUT (M10)

09159-10115

$3.21
