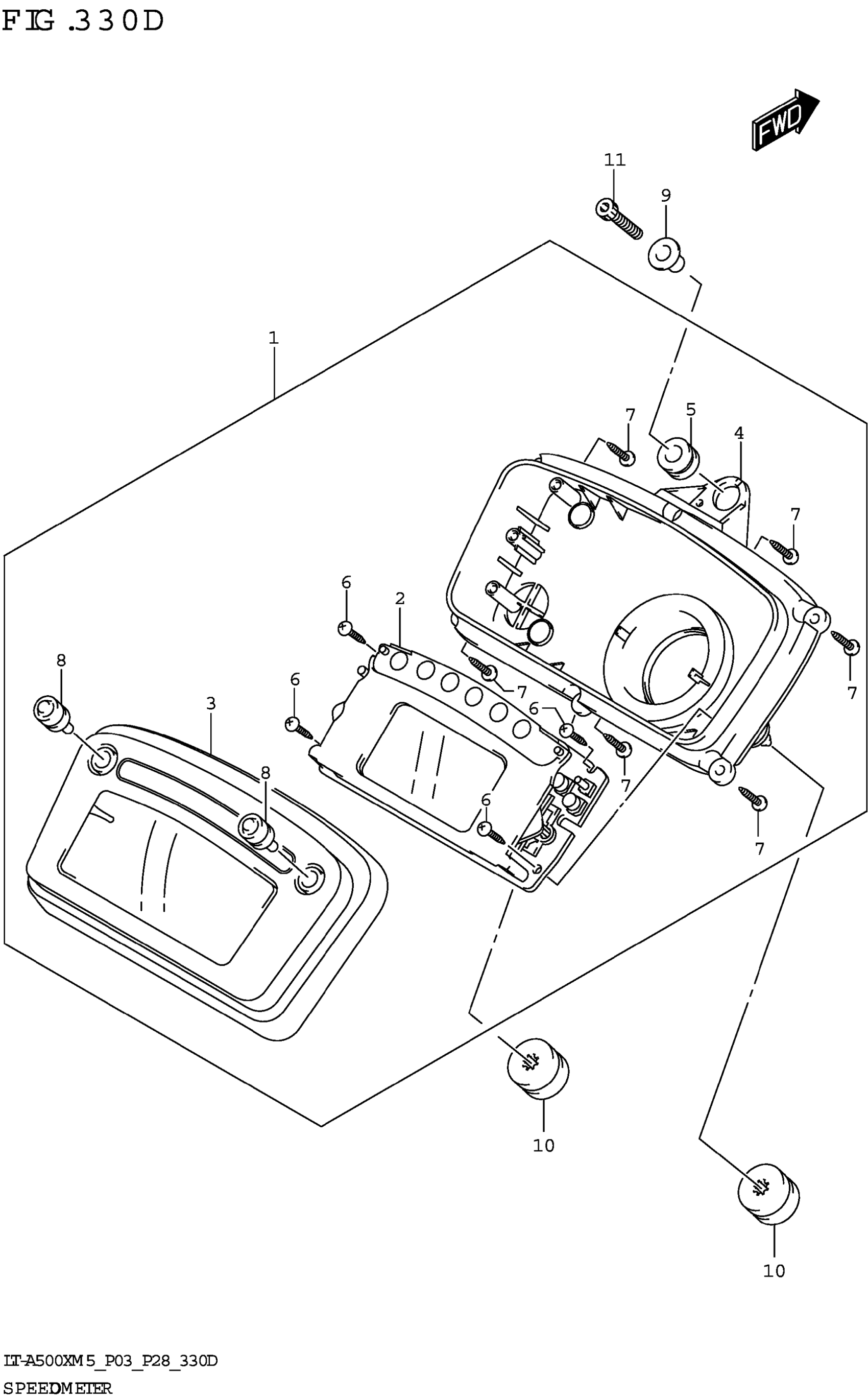

Suzuki LT-A500XM2 (2025) SPEEDOMETER (LT-A500X:(P03,P33)) Diagram

#

Description

Price

1

SPEEDOMETER ASSY | FROM 202210

34100-35K32

Unavailable

2

.SPEEDOMETER | FROM 202210

34120-35K32

Unavailable

3

.CASE, UPPER | FROM 202210 UPPER

34150-31G30

$64.55

4

.CASE, LOWER | FROM 202210 LOWER

34111-31G30

$15.00

5

.CUSHION, RUBBER | FROM 202210

34995-31G30

$2.45

6

.SCREW (3X10) | FROM 202210

34147-31G30

$1.75

7

.SCREW (3X12) | FROM 202210

34149-31G30

Unavailable

8

.SWITCH RUBBER | FROM 202210

34124-31G30

$7.79

9

SPACER, SPEEDOMETER | FROM 202210

34187-47F00

$7.85

10

CUSHION,SPEEDOMETER | FROM 202210

34955-13E01

$2.92

11

BOLT | FROM 202210

07130-0520B

$2.53
