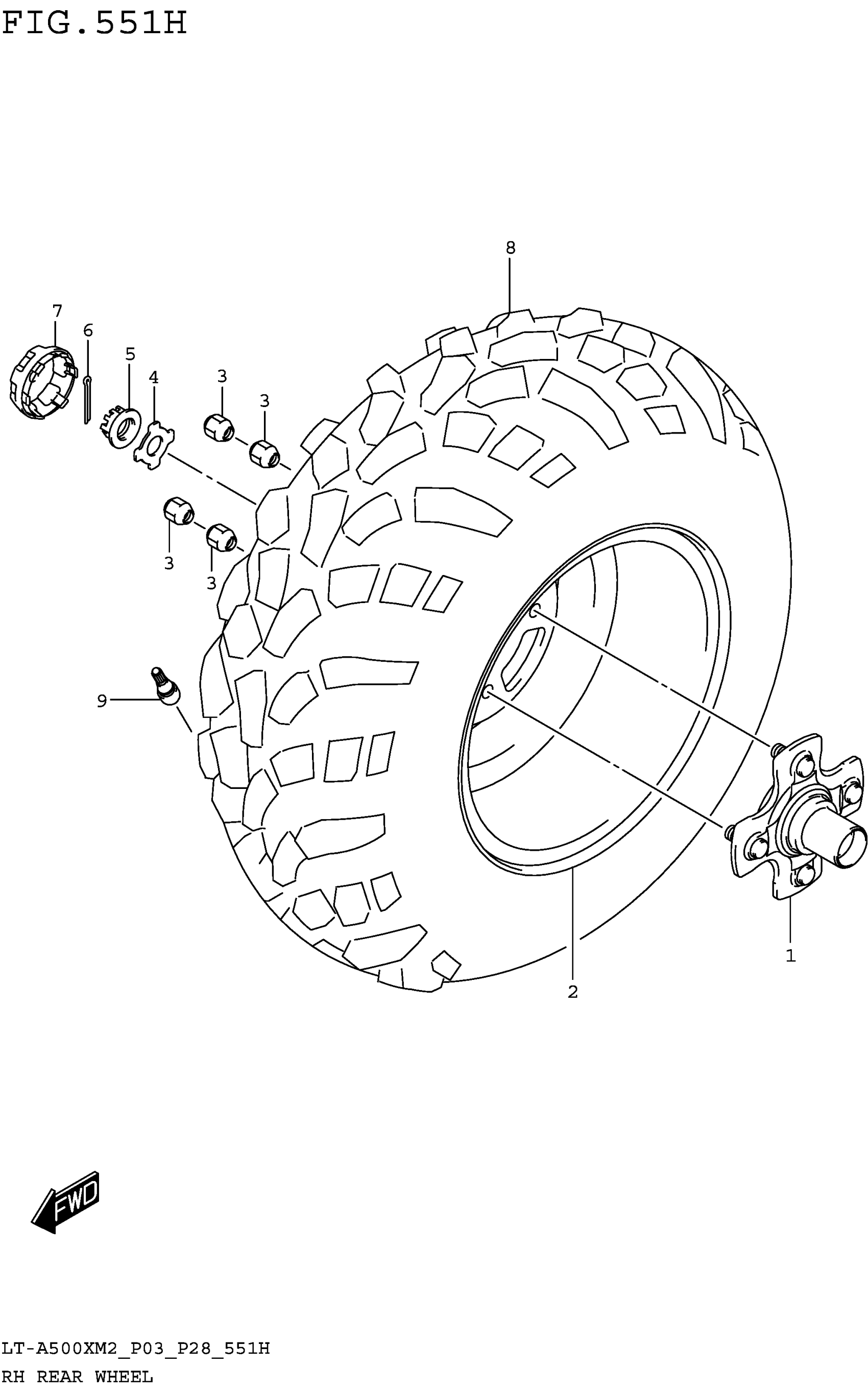

Suzuki LT-A500XM2 (2025) RH REAR WHEEL (LT-A500XPZM2 P28) Diagram

HUB, REAR WHEEL

64110-31G10

$222.42

REAR WHEEL-ALUM This part replaces 65311-34K00-291.

65311-34K00

$213.65

WHEEL,REAR This part replaces 65311-34K20-019.

65311-34K20

$269.42

NUT (H:23)

09159-10045

$6.42

WASHER, HUB

64723-03G00

$20.80

NUT

09141-20008

$18.05

PIN

04111-4035A

$1.49

CAP,WHEEL CENTER

54725-34K00

$12.42

CAP,WHEEL CENTER

54725-34K20

$33.52

TIRE,REAR (AT25X10-12) | AT489,CARLISLE

65110-31G30

$296.43

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85
