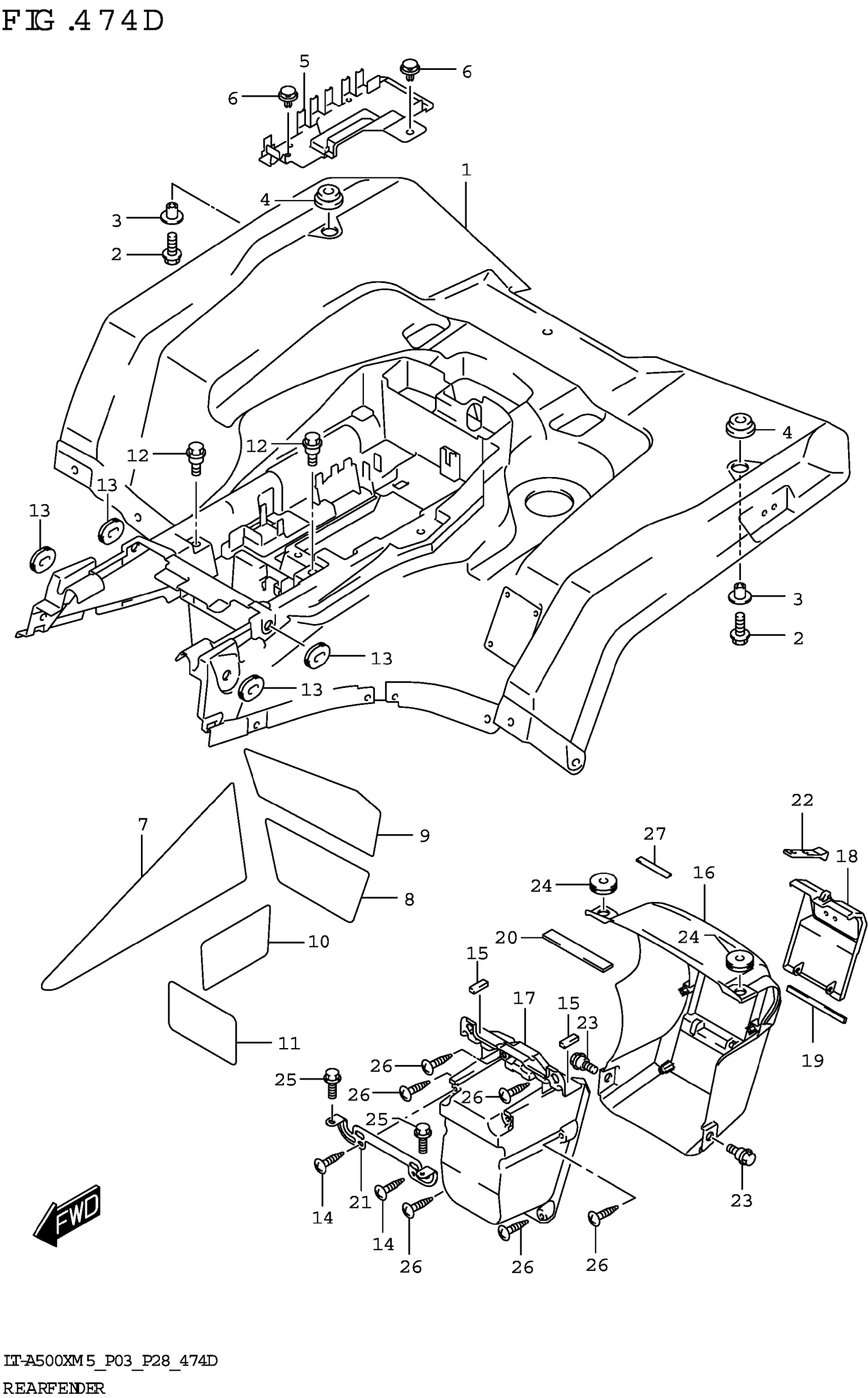

Suzuki LT-A500XM2 (2025) REAR FENDER (LT-A500XP:(P03,P33)) Diagram

#

Description
Price

1-1

FENDER, REAR (RED) | BODY COLOR:YT9

63111-34K01-YT9

$573.97

1-2

FENDER, REAR (GREEN) | BODY COLOR:YLG

63111-34K01-YLG

$573.97

1-3

FENDER,REAR (BEIGE) | BODY COLOR:YTV

63111-34K01-YTV

$854.70

1-4

FENDER,REAR | BODY COLOR:Q1L

63111-34K01-Q1L

$854.70

1-5

FENDER,REAR (KANATI) | BODY COLOR:QTM

63111-34K21-QTM

Unavailable

1-6

FENDER,REAR (CARBON) | BODY COLOR:QZ8

63111-34K21-QZ8

$1,411.92

2

BOLT (6X25)

01550-0625A

$1.97

3

WASHER (6.5X24X1.6)

09169-06074

$7.95

4

CUSHION (11.5X32X12.2)

09320-11021

$4.17

5

COVER, REAR FENDER

63112-34K03

$9.62

6

CLIP

09409-08008

$1.87

7

SHIELD, REAR FENDER

63122-34K00

$12.18

8

SHIELD, REAR FENDER

63123-34K00

$10.75

9

SHIELD, REAR FENDER

63124-34K00

$10.48

10

SHIELD, REAR FENDER

63127-34K00

$8.35

11

SHIELD, REAR FENDER

63128-34K00

$8.25

12

BOLT, CARRIER COVER

46386-34K00

$4.70

13

CUSHION

09320-08029

$2.41

14

SCREW

03541-0620A

$2.45

15

CUSHION (10X30X6)

33652-47F00

$3.70

16

COVER, REAR

63251-34K03

$20.58

17

BOX, INNER

63252-34K03

$19.02

18

LID, OUTER

63253-34K01

$22.39

19

CUSHION, REAR COVER

63255-34K00

$1.50

20

CUSHION, REAR COMB NO.2

63256-34K00

$16.58

21

BRACKET, REAR COVER

63371-34K00

Unavailable

22

BAND, REAR BOX

93191-09F20

$12.65

23

BOLT, CARRIER COVER

46386-34K00

$4.70

24

CUSHION (8x26x7)

09320-08018

$3.04

25

BOLT

01550-0612A

$1.97

26

SCREW

03541-0516A

$1.49

27

CUSHION (8X50X8)

47122-17K00

$2.14
