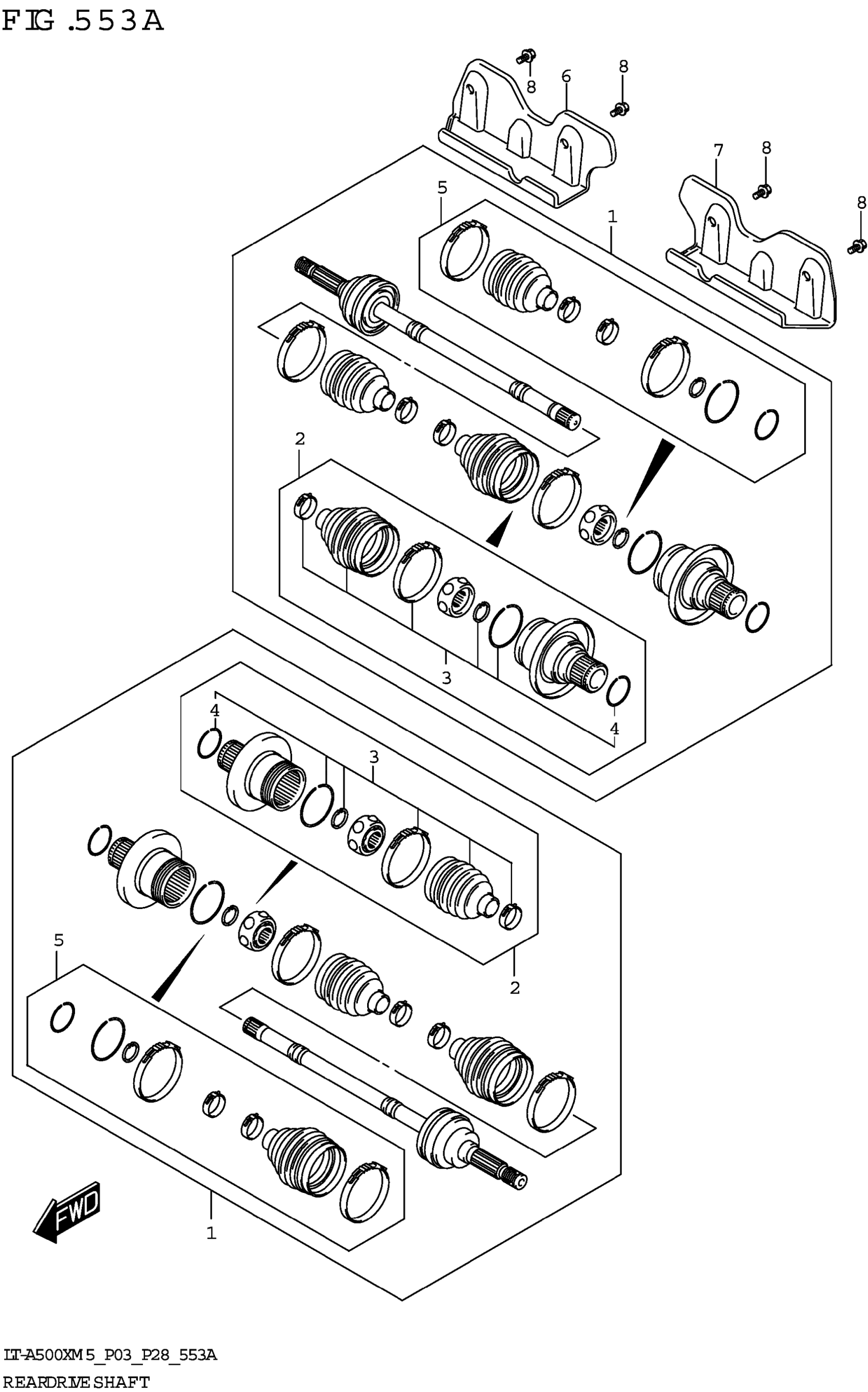

Suzuki LT-A500XM2 (2025) REAR DRIVE SHAFT Diagram

#

Description

Price

1

SHAFT ASSY, REAR DRIVE

64901-31G31

$294.19

2

.JOINT SET

64933-31G21

$305.85

3

..BOOT SET, INNER

64931-31G21

$119.03

4

...CIRCLIP

54925-31G01

$6.95

5

.BOOT SET, OUTER

64930-31G21

$152.95

6

PROTECTOR,RR DRIVE SHAFT,R

64903-31G11

$24.99

7

PROTECTOR,RR DRIVE SHAFT,L

64904-31G11

$24.84

8

BOLT (6X12) This part replaces 09111-06063.

09111-06085

$4.16
