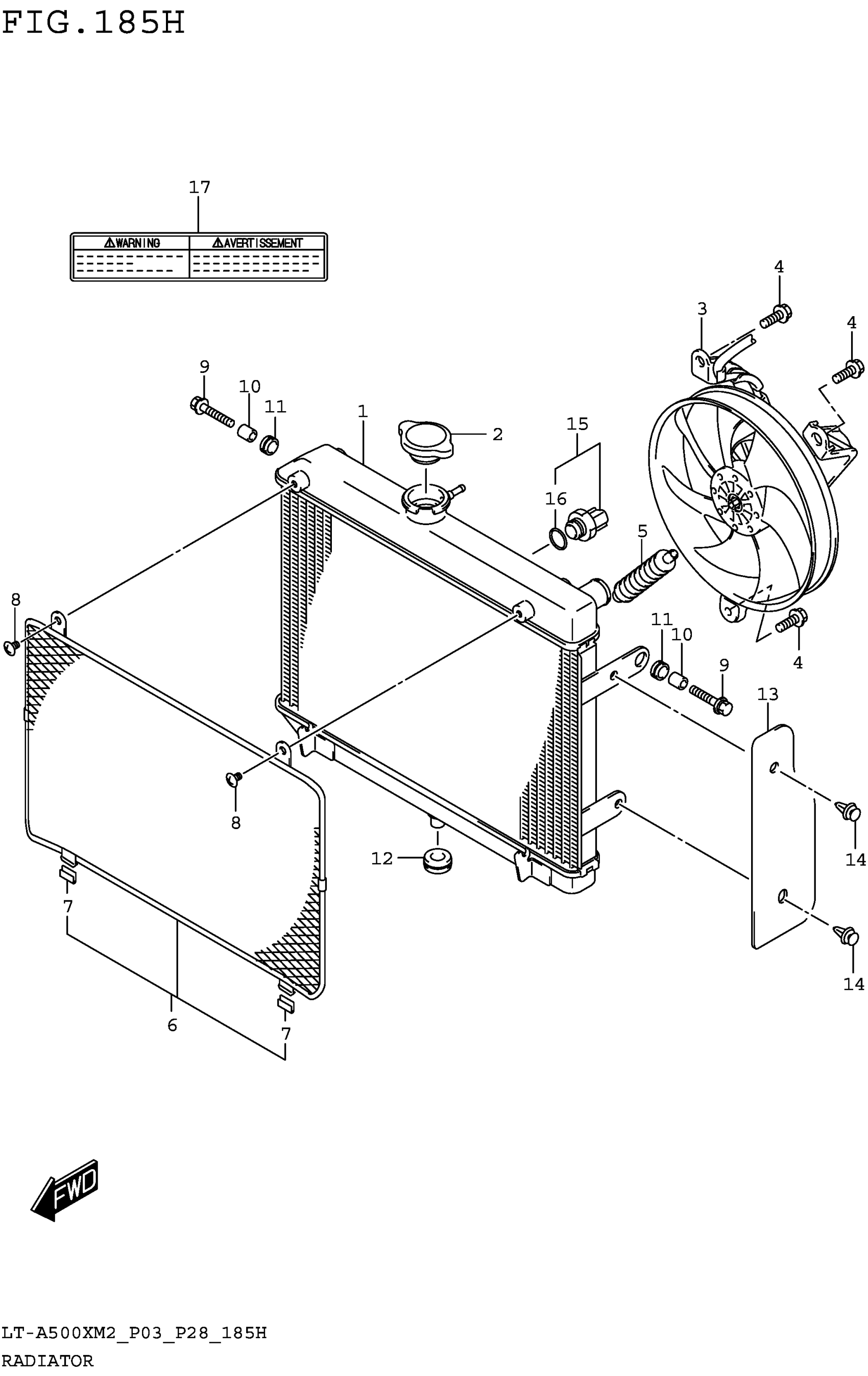

Suzuki LT-A500XM2 (2025) RADIATOR (LT-A500XPZM2 P28) Diagram

Description

Price

RADIATOR ASSY This part replaces 17710-31G51.

17710-31G52

$239.39

CAP,RADIATOR (1.1)

17730-14G00

$42.83

FAN ASSY, RADIATOR

17800-31G20

$239.19

BOLT

01550-0610B

$2.42

.BOOT,RDTR FAN MOTOR

17820-07G10

$7.48

COVER, RADIATOR

17760-09F01

$61.90

.PROTECTOR, CTR

17765-09F01

$2.92

SCREW

02142-0608A

$1.49

BOLT (6X25)

09118-06097

$2.50

SPACER (6.5X10X12)

09180-06290

$2.35

CUSHION

09320-10042

$3.12

CUSHION This part replaces 09320-12029.

09320-12036

$2.38

GUARD, RADIATOR FAN

17811-31G00

$53.08

CLIP (D:2.4,ID:23.7)

09409-07333

$2.31

SWITCH, RADIATOR FAN

17680-50F01

$66.46

.O RING

17689-50F00

$2.53

LABEL, COOLING FAN

17991-02F41

$4.64
