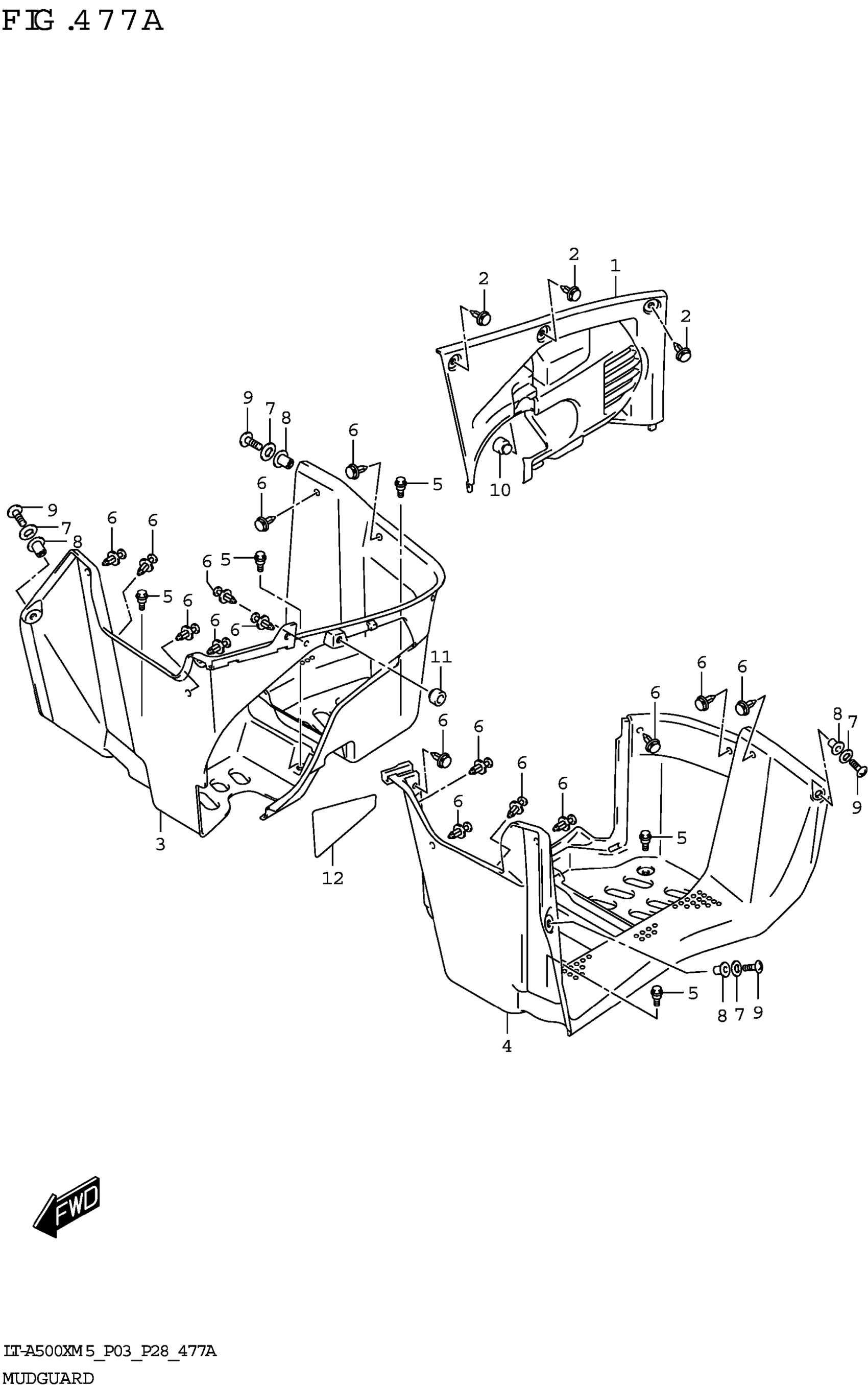

Suzuki LT-A500XM2 (2025) MUDGUARD (P03,P28,P33) Diagram

#

Description
Price

1

LID,FOOTREST GUARD

63342-34K01

$58.25

2

CLIP

09409-08008

$1.87

3

MUDGUARD,FOOTRE This part replaces 63331-34K02.

63331-34K02-291

$31.71

4

MUDGUARD,FOOTRE This part replaces 63341-34K02.

63341-34K02-291

$68.50

5

BOLT, CARRIER COVER

46386-34K00

$4.70

6

CLIP

09409-08008

$1.87

7

WASHER (5.5X20X1.4)

09160-05046

$1.92

8

NUT (M5)

09159-05019

$7.14

9

SCREW

02142-0520B

$1.78

10

CUSHION

09321-10019

$4.90

11

CUSHION

09321-10019

$4.90

12

SHIELD, SIDE COVER NO.1

63268-34K00

$14.28
