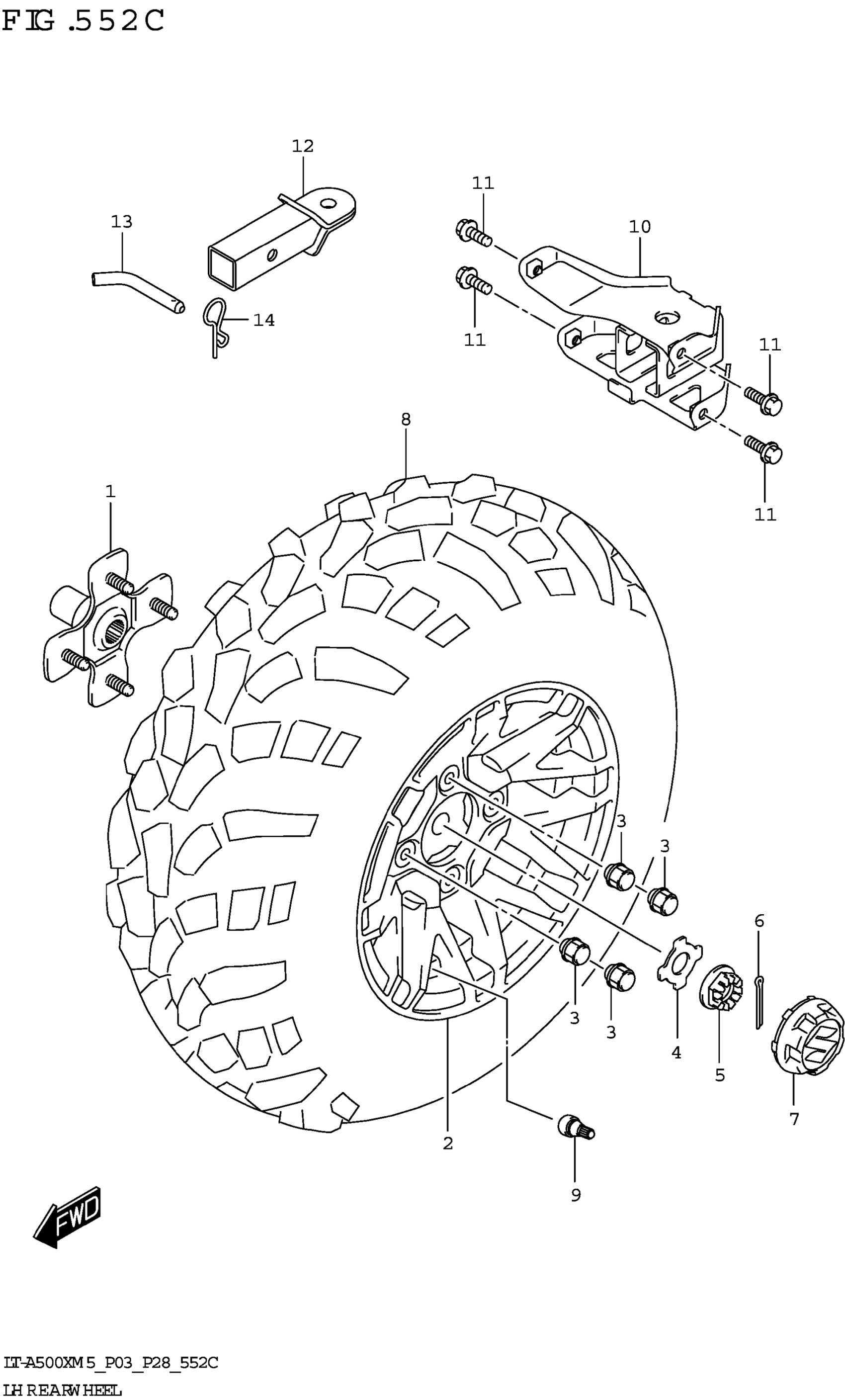

Suzuki LT-A500XM2 (2025) LH REAR WHEEL (LT-A500XPZ:(P03,P28,P33)) Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-31G10

$222.42

2

WHEEL,REAR This part replaces 65311-34K20-019.

65311-34K20

$269.42

3

NUT (H:23)

09159-10045

$6.42

4

WASHER, HUB

64723-03G00

$20.80

5

NUT

09141-20008

$18.05

6

PIN

04111-4035A

$1.49

7

CAP,WHEEL CENTER

54725-34K20

$33.52

8

TIRE,REAR | CARLSTAR

65110-31G40

$296.43

9

VALVE ASSY,WHEEL RIM (TR412)

43130-24AD0

Unavailable

10

PLATE, TRAILER HITCH

95210-34K00

$113.88

11

BOLT (10X20)

09103-10394

$2.65

12

ADAPTER,TRAILER TOW

95230-34K00

$325.28

13

PIN,HITCH ADAPTER

95238-34K00

Unavailable

14

PIN,COTTER

95239-34K00

Unavailable
