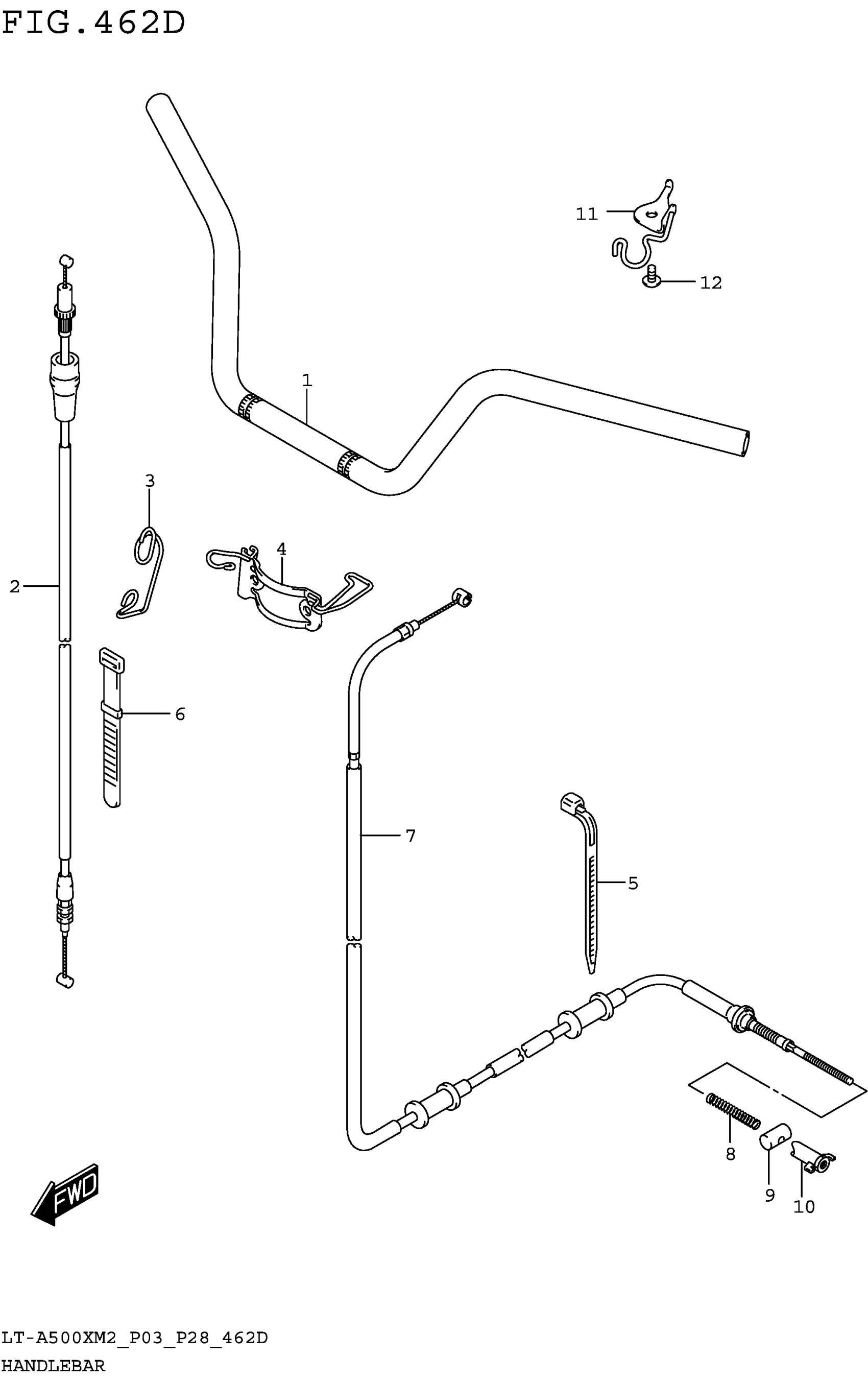

Suzuki LT-A500XM2 (2025) HANDLEBAR (LT-A500XPM2 P03) Diagram

Description

Price

HANDLEBAR This part replaces 56111-31G20.

56111-31G40

$99.17

CABLE ASSY, THROTTLE

58300-31G21

$33.62

GUIDE, THROTTLE CABLE

58626-31G20

$9.82

GUIDE, CABLE

58620-31G30

$29.28

CLAMP (L:165)

09407-18402

$2.19

CLAMP (L:187)

09407-18401

$2.07

CABLE, PARKING BRAKE

58810-34K00

$69.40

SPRING

09440-08042

$2.92

09209-13006

$5.24

NUT

09150-06015

$3.56

GUIDE, PARKING CABLE

58620-34K00

$7.65

SCREW

03541-0616B

$2.59
