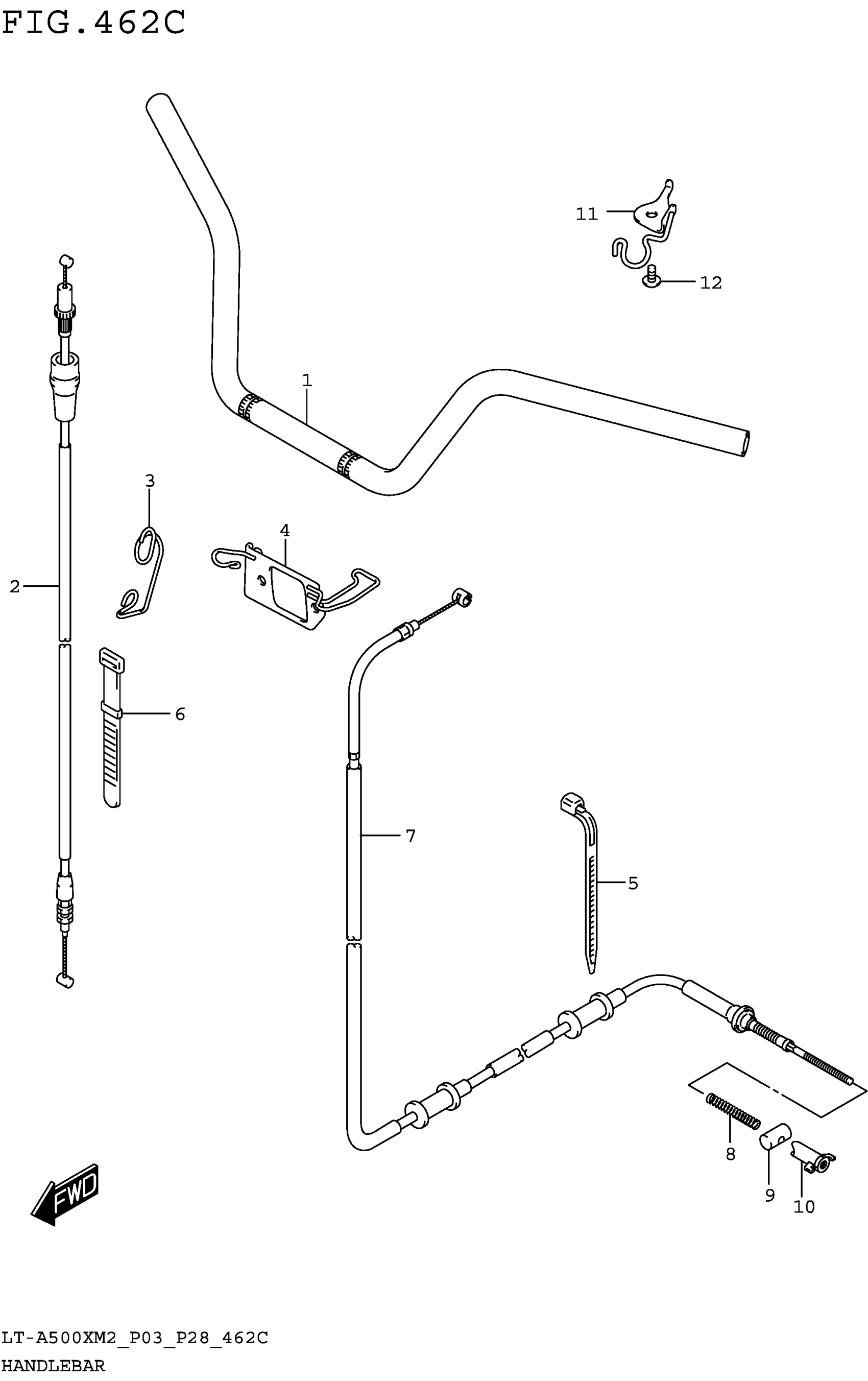

Suzuki LT-A500XM2 (2025) HANDLEBAR (LT-A500XM2 P33) Diagram

Description

Price

HANDLEBAR This part replaces 56111-31G20.

56111-31G40

$90.78

CABLE ASSY, THROTTLE

58300-31G21

$37.93

GUIDE, THROTTLE CABLE

58626-31G20

$11.08

GUIDE, CABLE

58620-31G40

$40.28

CLAMP (L:165)

09407-18402

$2.21

CLAMP (L:187)

09407-18401

$1.86

CABLE, PARKING BRAKE

58810-34K00

$74.35

SPRING

09440-08042

$2.80

09209-13006

$4.73

NUT

09150-06015

$3.26

GUIDE, PARKING CABLE

58620-34K00

$8.67

SCREW

03541-0616B

$3.00
