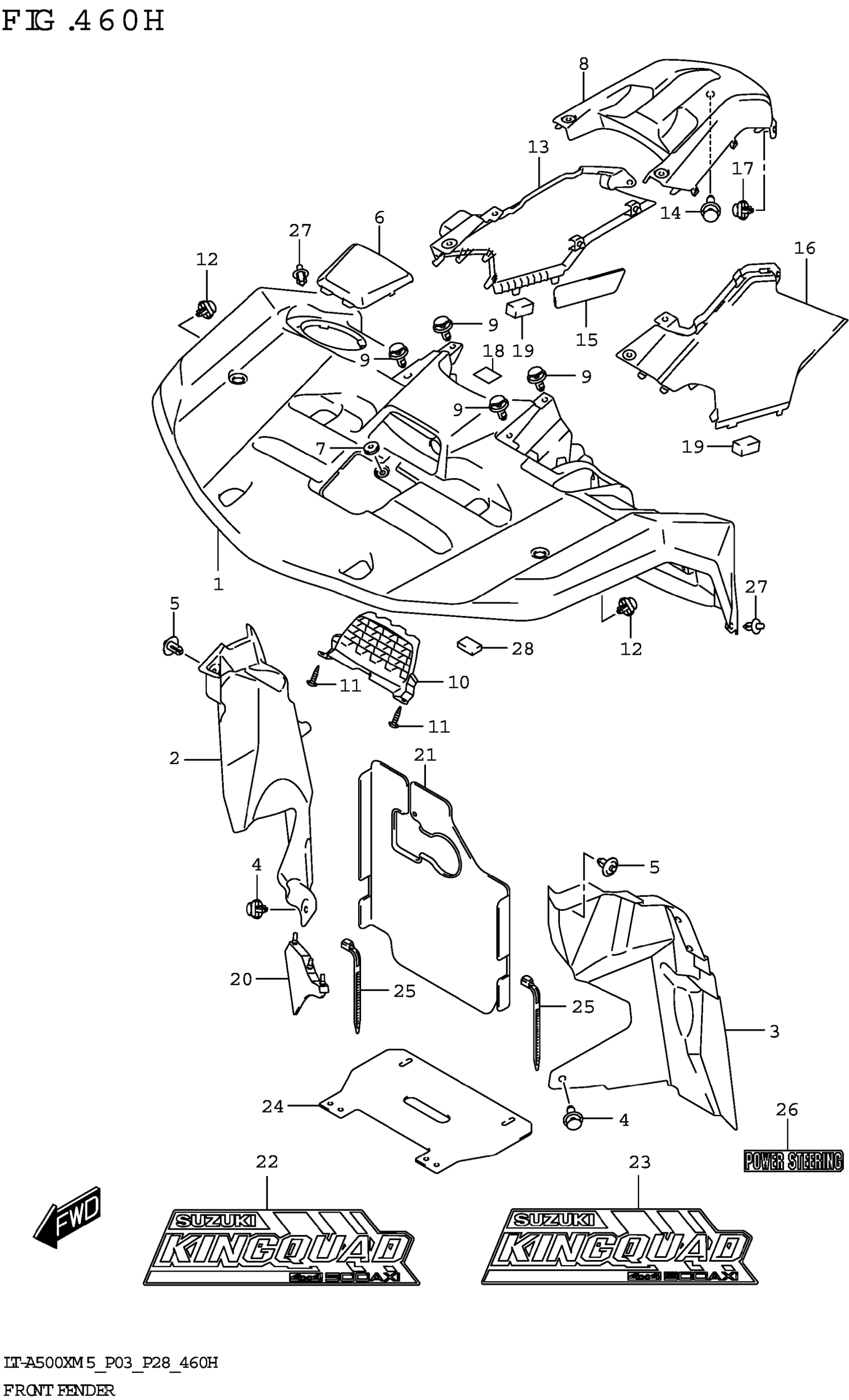

Suzuki LT-A500XM2 (2025) FRONT FENDER (LT-A500XPZ:P28) Diagram

#

Description
Price

1-1

FENDER,FRONT | BODY COLOR:Q1L

53111-34K01-Q1L

$701.32

1-2

FENDER FRONT (KANATI) | BODY COLOR:QTM

53111-34K21-QTM

Unavailable

1-3

FENDER FRONT (CARBON) | BODY COLOR:QZ8

53111-34K21-QZ8

$1,069.67

2

MUDFLAP, INNER RH

53411-34K01

$20.83

3

MUDFLAP, INNER LH

53421-34K01

$20.72

4

CLIP

09409-08008

$1.87

5

CLIP (D:2.4,ID:23.7)

09409-07333

$2.31

6-1

LID,FENDER FRONT | BODY COLOR:Q1L

53341-31G06-Q1L

$52.05

6-2

LID,FENDER FRONT (KANATI) | BODY COLOR:QTM

53341-31GC6-QTM

Unavailable

6-3

LID,FENDER FRONT (CARBON) | BODY COLOR:QZ8

53341-31GC6-QZ8

Unavailable

7

CUSHION (8x26x7)

09320-08018

$3.04

8

FENDER, CENTER

53119-34K04

$120.33

9

CLIP

09409-08008

$1.87

10

COVER, INNER

53212-34K03

$10.77

11

SCREW

03541-0516A

$1.49

12

CLIP

09409-08008

$1.87

13-1

COVER,SIDE,R | BODY COLOR:Q1L

53112-34K03-Q1L

$84.50

13-2

COVER,SIDE,R (KANATI) | BODY COLOR:QTM

53112-34K13-QTM

Unavailable

13-3

COVER,SIDE,R (CARBON) | BODY COLOR:QZ8

53112-34K13-QZ8

Unavailable

14

CLIP

09409-08008

$1.87

15

SHIELD, SIDE COVER NO.2

53113-34K00

$8.72

16-1

COVER,SIDE,L | BODY COLOR:Q1L

53122-34K03-Q1L

$132.03

16-2

COVER,SIDE,L (KANATI) | BODY COLOR:QTM

53122-34K13-QTM

Unavailable

16-3

COVER,SIDE,L (CARBON) | BODY COLOR:QZ8

53122-34K13-QZ8

Unavailable

17

CLIP

09409-08008

$1.87

18

CUSHION | 0X4) This part replaces 47829-10F00.

44612-13600

$4.65

19

CUSHION, COVER SIDE

53114-34K00

$1.70

20

MUDGUARD, SIDE RH

53116-31G01

$15.47

21

COVER, CENTER

53117-31G01

$30.10

22

TAPE,COVER SIDE,R (BLACK,WHIT | )

68151-35K10-ANT

$25.18

23

TAPE,COVER SIDE,L (BLACK,WHIT | )

68152-35K10-ANT

$25.18

24

GUARD, RADIATOR

53113-31G10

$19.43

25

CLAMP (L:125)

09407-14403

$2.26

26

EMBLEM, POWER-STEERING (GRAY) | AY)

68151-31GD1-BM7

$10.03

27

CLIP

09409-08008

$1.87

28

CUSHION, REAR FENDER EXT PLAT

63113-48G00

$11.00
