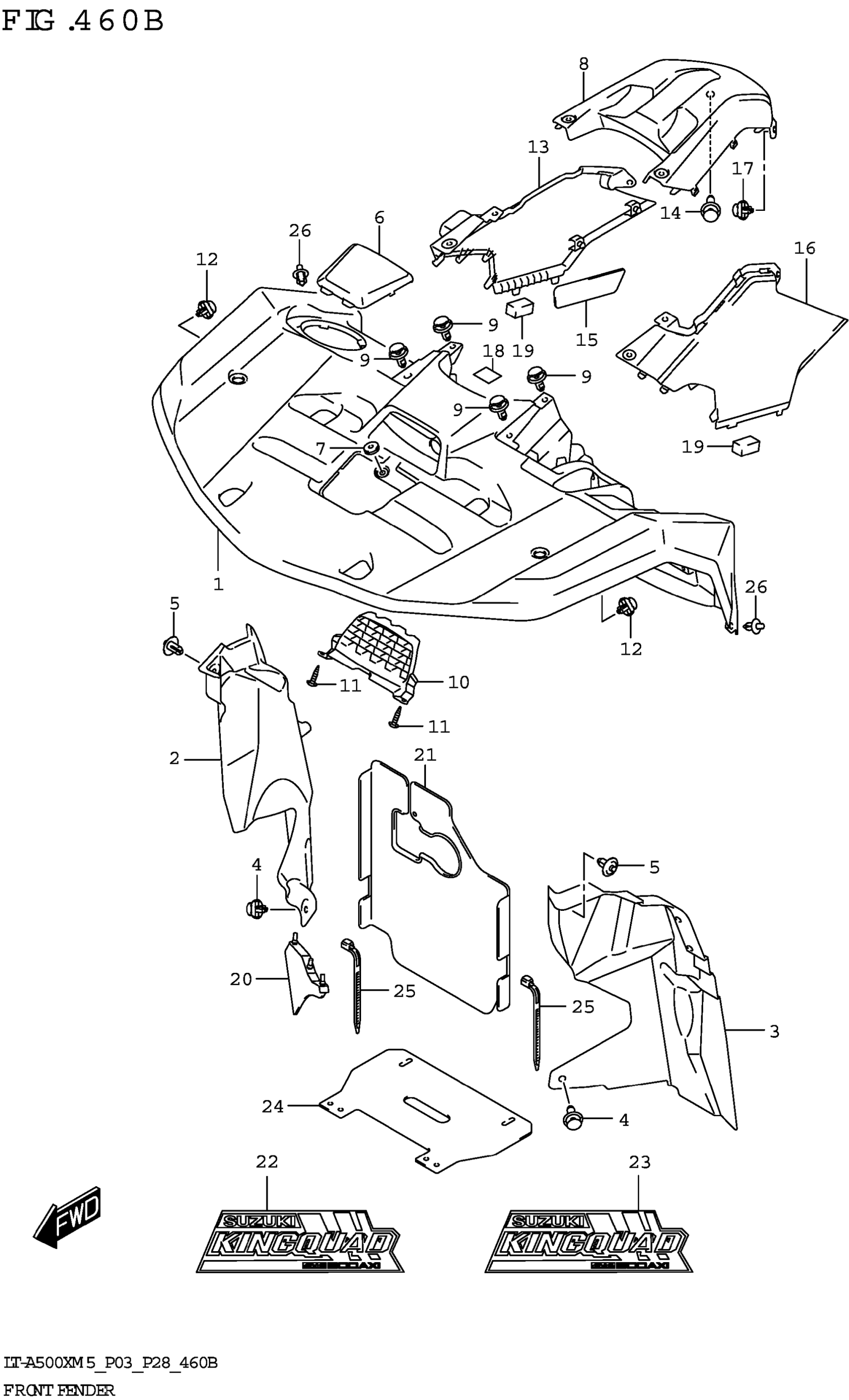

Suzuki LT-A500XM2 (2025) FRONT FENDER (LT-A500X:P28) Diagram

#

Description
Price

1

FENDER, FRONT (GREEN) | BODY COLOR:YLG

53111-34K01-YLG

$635.03

2

MUDFLAP, INNER RH

53411-34K01

$20.83

3

MUDFLAP, INNER LH

53421-34K01

$20.72

4

CLIP

09409-08008

$1.87

5

CLIP (D:2.4,ID:23.7)

09409-07333

$2.31

6

LID, FENDER FRONT (GREEN)

53341-31G06-YLG

$10.28

7

CUSHION (8x26x7)

09320-08018

$3.04

8

FENDER, CENTER

53119-34K04

$120.33

9

CLIP

09409-08008

$1.87

10

COVER, INNER

53212-34K03

$10.77

11

SCREW

03541-0516A

$1.49

12

CLIP

09409-08008

$1.87

13

COVER, SIDE RH (GREEN)

53112-34K03-YLG

$78.85

14

CLIP

09409-08008

$1.87

15

SHIELD, SIDE COVER NO.2

53113-34K00

$8.72

16

COVER, SIDE LH (GREEN)

53122-34K03-YLG

$123.17

17

CLIP

09409-08008

$1.87

18

CUSHION | 0X4) This part replaces 47829-10F00.

44612-13600

$4.65

19

CUSHION, COVER SIDE

53114-34K00

$1.70

20

MUDGUARD, SIDE RH

53116-31G01

$15.47

21

COVER, CENTER

53117-31G01

$30.10

22

TAPE,COVER SIDE,R (WHITE/BLAC | )

68151-35K10-8YM

$25.18

23

TAPE,COVER SIDE,L (WHITE/BLAC | )

68152-35K10-8YM

$25.18

24

GUARD, RADIATOR

53113-31G10

$19.43

25

CLAMP (L:125)

09407-14403

$2.26

26

CLIP

09409-08008

$1.87
