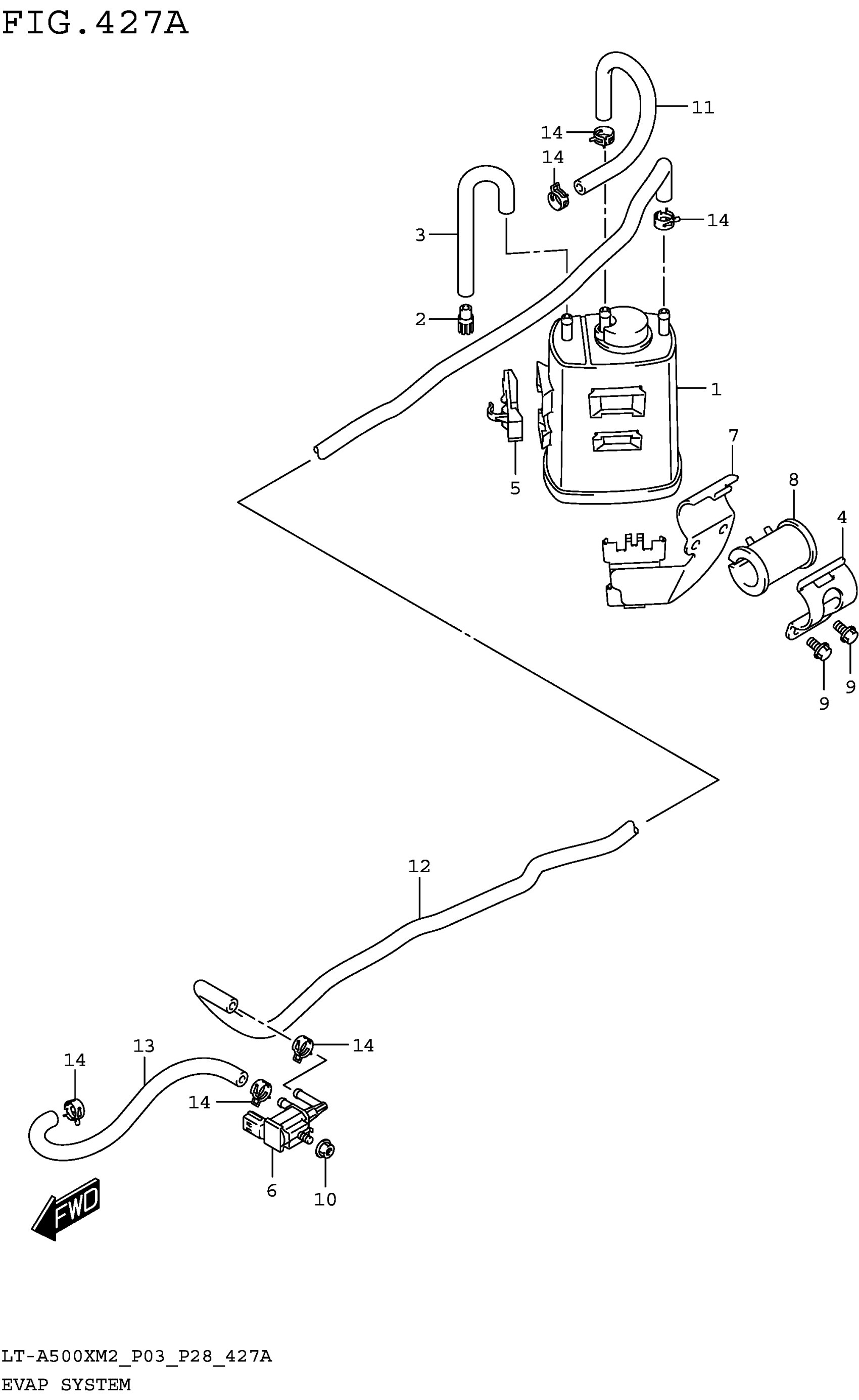

Suzuki LT-A500XM2 (2025) EVAP SYSTEM (LT-A500XM2 P33) Diagram

#

Description
Price

1

CANISTER

18560-81AA0

$124.93

2

FILTER, PURGE AIR SUCTION

18566-60G00

Unavailable

3

HOSE, CANISTER SUCTION

18567-72L00

$10.22

4

HOLDER, CANISTER BRACKET

18578-34K00

$27.43

5

CLAMP, CANISTER SUCTION

18581-72L00

$2.30

6

VALVE,CANISTER PURGE

18117-52G10

$151.17

7

BRACKET, CANISTER

18570-34K00

$41.53

8

CUSHION, CANISTER BRACKET

18571-34K00

$33.68

9

BOLT

01550-0612A

$1.97

10

NUT (6X12)

08316-1006A

$2.19

11

HOSE, CANISTER SURGE

18561-34K00

$25.85

12

HOSE, CANISTER PURGE NO.1

18562-34K00

$68.77

13

HOSE, CANISTER PURGE NO.2

18563-35K00

$20.47

14

CLIP (ID:10.5,H:8)

09401-10409

$2.26
