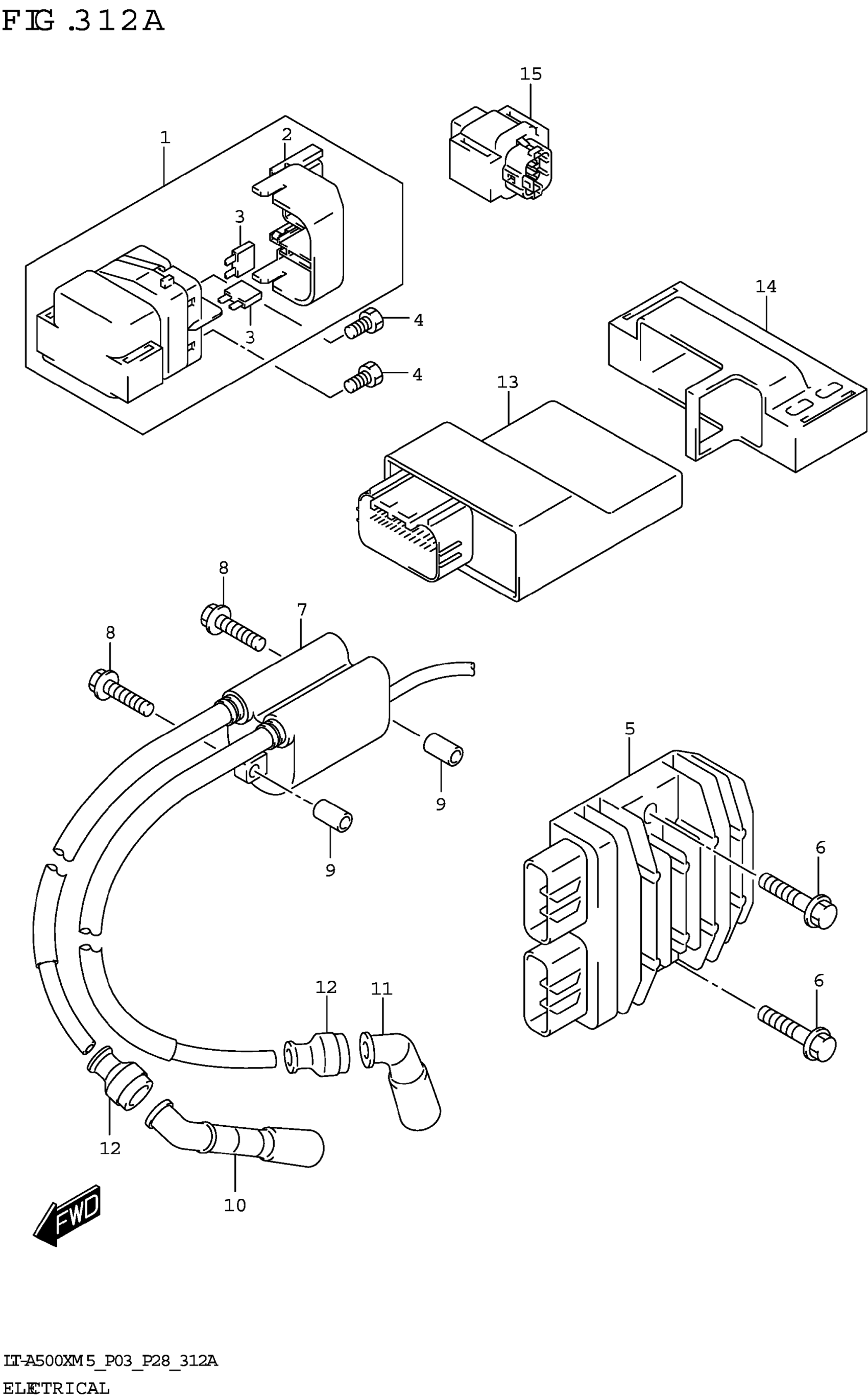

Suzuki LT-A500XM2 (2025) ELECTRICAL (LT-A500X:(P03,P28)) Diagram

#

Description
Price

1

RELAY ASSY, STARTING MOTOR This part replaces 31800-41G00.

31800-41G10

$92.59

2

.COVER

31861-38G00

$4.88

3

.FUSE (30A)

09481-30501

$2.32

4

SCREW (6X8)

09128-06013

$1.49

5

RECTIFIER ASSY

32800-26J02

$262.27

6

BOLT (6X25)

01550-0625A

$1.97

7

COIL ASSY, IGNITION

33410-40H01

$106.57

8

BOLT

01547-0640A

$2.32

9

SPACER (6.4X10X18)

09180-06195

$3.68

10

CAP ASSY,SPARK PLUG

33510-31G00

$39.09

11

CAP ASSY,SPARK PLUG

33510-31G10

$32.95

12

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

13

CONTROL UNIT, FI

32920-35K01

$614.78

14

HOLDER, FI CONTROL UNIT

32980-31GA0

$42.80

15

SENSOR ASSY,FUEL CUT

33960-27G00

$109.88
