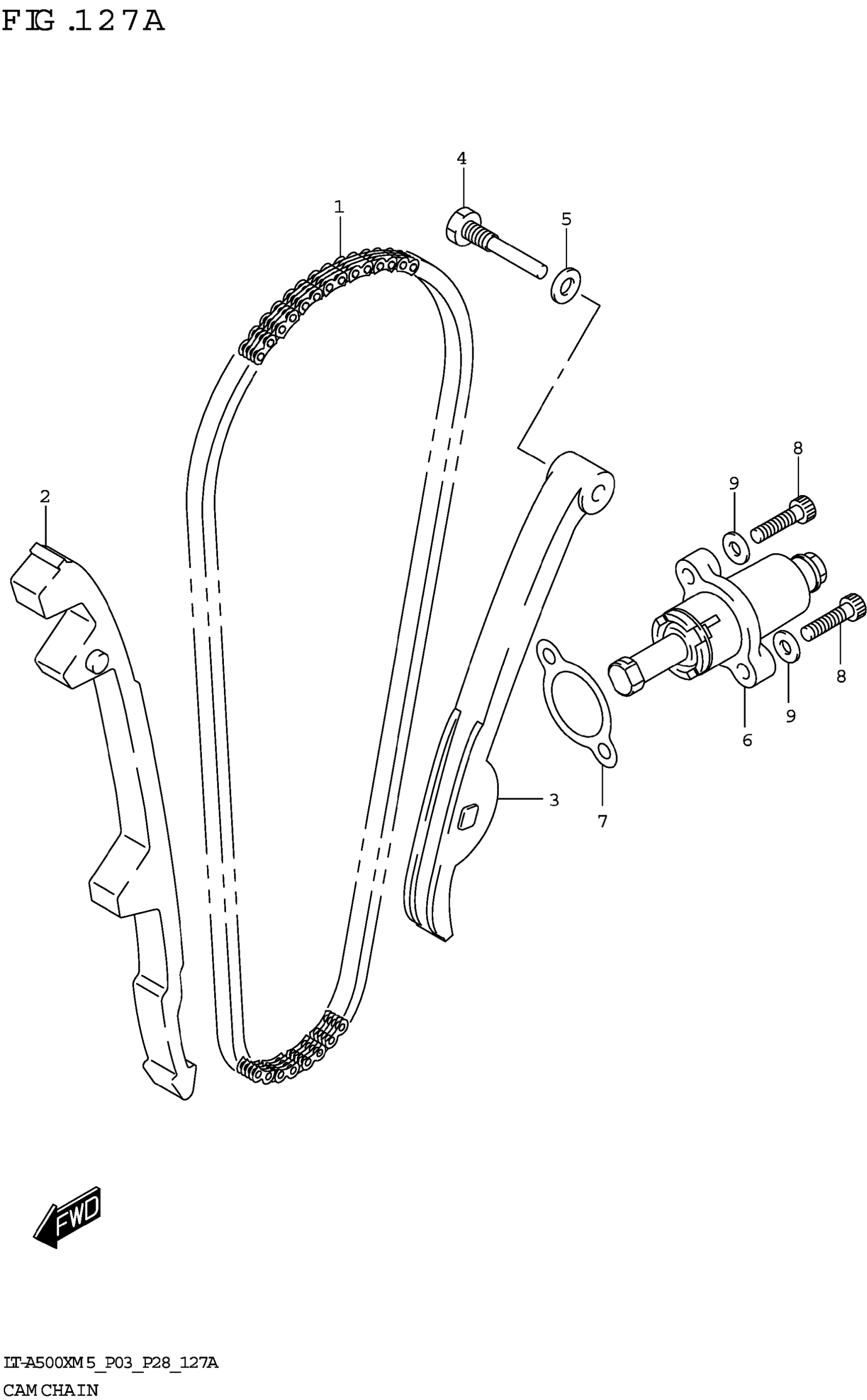

Suzuki LT-A500XM2 (2025) CAM CHAIN Diagram

#

Description

Price

1

CHAIN, CAM SHAFT DRIVE | 5-124MPX)

12760-09F00

$172.70

2

GUIDE, CAM CHAIN

12771-11H00

$35.44

3

TENSIONER, CAM CHAIN

12811-09F01

$67.73

4

BOLT, CAM CHAIN TENSIONER

12812-32400

$3.71

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

6

ADJUSTER ASSY, TENSIONER

12830-32E00

$113.78

7

.GASKET,TENSIONER ADJUSTER

12837-24A10

$3.25

8

BOLT (6X25)

07130-0625A

$2.62

9

GASKET (5.8X13X1.2)

09168-06023

$2.35
