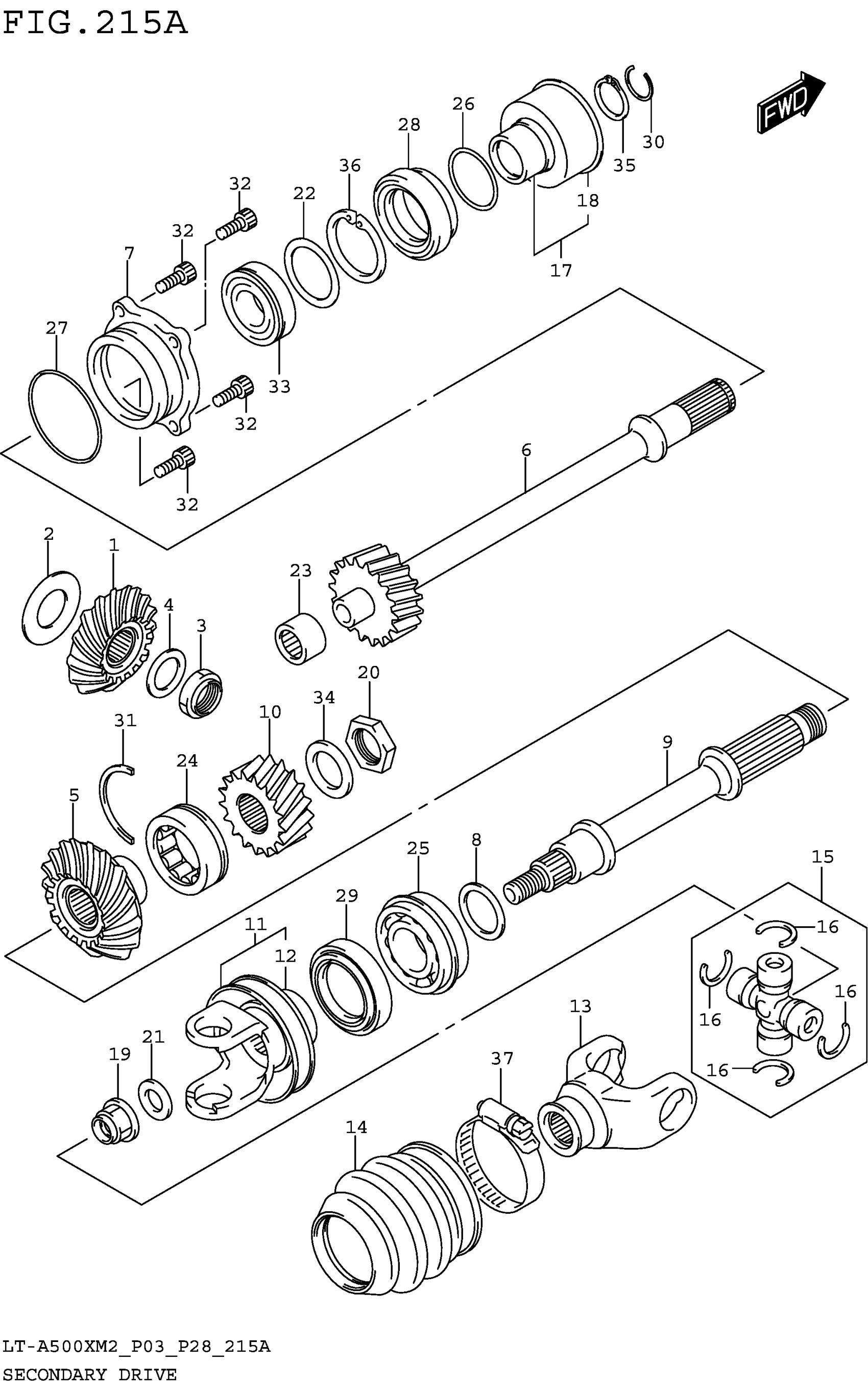

Suzuki LT-A500XM2 (2022) SECONDARY DRIVE Diagram

#

Description
Price

1

GEAR, SEC DRIVE BEVEL (NT:15)

24911-11H00

Unavailable

2

SHIM SET,SEC DRIVE BEVEL

24935-03811

$133.70

3

NUT

09140-20012

$4.32

4

SHIM (20X32X1)

09181-20223

$2.92

5

GEAR, SEC DRIVEN BEVEL (NT:19

24921-11H00

Unavailable

6

SHAFT,SEC DRIVEN OUTPUT FR | (NT:18) This part replaces 24961-31H00.

24961-31H10

$157.57

7

HOUSING, FR OUTPUT SHAFT BRG

24965-31G00

$45.38

8

SHIM SET,SEC DRIVEN BEVEL

24945-03811

$111.58

9

SHAFT, SEC DRIVEN OUTPUT RR

24971-11H00

Unavailable

10

GEAR, SEC DRIVEN OUTPUT SHAFT | (NT:18)

24972-31G20

$106.45

11

YOKE, RR DRIVE OUTPUT

27130-31G10

Unavailable

12

.FLANGE, OUTPUT YOKE BOOT

27592-31G30

Unavailable

13

YOKE, PROP SHAFT JOINT RR

27141-34K00

$84.12

14

BOOT, REAR OUTPUT JOINT

27153-31G01

$14.84

15

JOINT SET, UNIVERSAL RR

27200-73814

$50.65

16

.SNAP RING

09380-25005

$1.67

17

COLLAR, FRONT DRIVE OUTPUT

27590-31G00

$62.32

18

.PLATE, OUTPUT OIL SEAL

27592-31G00

$14.70

19

NUT

09159-16003

$4.00

20

NUT

09159-22005

$27.75

21

WASHER (16X30X3)

09160-16026

$5.00

22

SHIM (40X52X1)

09181-40195

$6.70

23

BEARING (25X37X17)

09263-25068

$53.77

24

BEARING (30X50X17)

09263-30050

$57.07

25

BEARING (25X52X20.6)

09267-25014

$124.50

26

O RING (D:1.9,ID:24.5)

09280-25005

$2.12

27

O RING (D:3.5,ID:65.2)

09280-57002

$2.50

28

OIL SEAL (34X52X9)

09283-34008

$20.72

29

OIL SEAL (34X52X9)

09283-34008

$20.72

30

CIRCLIP

09381-21002

$1.49

31

C RING

09390-50002

$3.03

32

BOLT

07130-0620A

$2.50

33

BEARING (25X52X15)

09262-25003

$24.83

34

WASHER

08211-22365

$5.97

35

CIRCLIP

08331-31259

$2.48

36

CIRCLIP

08331-41529

$4.45

37

CLAMP

09402-00512

$15.13
