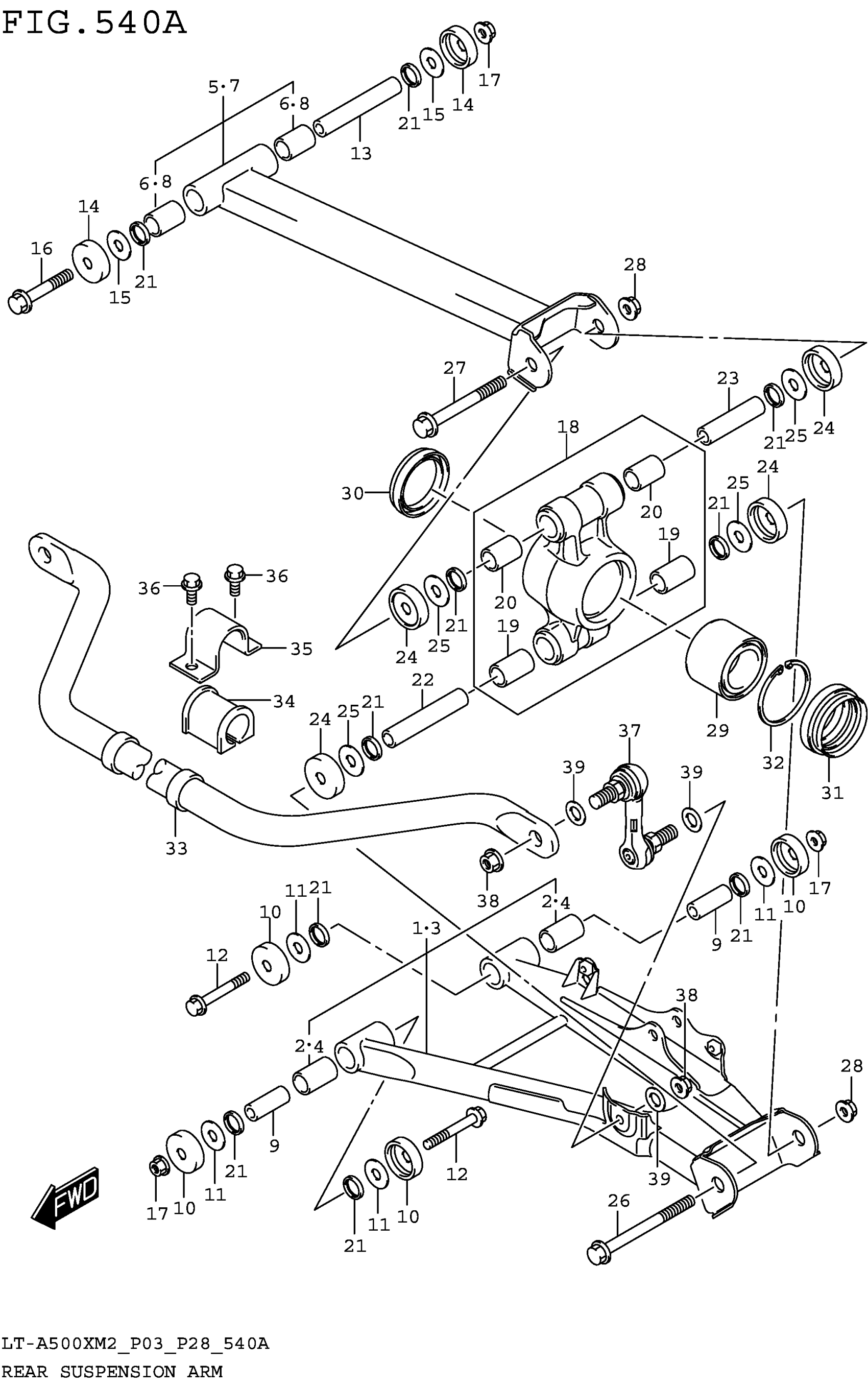

Suzuki LT-A500XM2 (2022) REAR SUSPENSION ARM Diagram

#

Description
Price

1

ARM SET, RR SUSPENSION LOWER | RH

61510-34810

Unavailable

2

.BUSH, SUSPENSION ARM PIVOT

51236-31G00

$16.56

3

ARM SET, RR SUSPENSION LOWER | LH

61520-34810

$38.32

4

.BUSH, SUSPENSION ARM PIVOT

51236-31G00

$16.56

5

ARM SET, RR SUSPENSION UP RH

61530-31830

$249.18

6

.BUSH, SUSPENSION ARM PIVOT

51236-31G00

$16.56

7

ARM SET, RR SUSPENSION UP LH

61540-31830

$244.46

8

.BUSH, SUSPENSION ARM PIVOT

51236-31G00

$16.56

9

SPACER, RR SPNSN ARM LOWER

61552-31G10

$20.82

10

SEAL, FR SPNSN ARM PIVOT

51255-31G10

$16.55

11

WASHER

08211-10281

$2.13

12

BOLT (10X70)

09103-10392

$4.55

13

SPACER

61554-31G00

$19.35

14

SEAL, FR SPNSN ARM PIVOT

51255-31G10

$16.55

15

WASHER

08211-10281

$2.13

16

BOLT (10X120)

09103-10388

$5.64

17

NUT (M10)

09159-10115

$3.31

18

KNUCKLE SET, RR SUSPENSION

61600-11820

$368.62

19

.BUSH, SUSPENSION ARM PIVOT

51236-31G00

$16.56

20

.BUSH, RR KNUCKLE UPPER

61551-31G10

$16.77

21

SEAL, SPNSN ARM PVT INNER DUS

52454-45G00

$7.32

22

SPACER

61554-31G00

$19.35

23

SPACER, RR KNUCKLE UPPER

61553-31G10

$23.48

24

SEAL, FR SPNSN ARM PIVOT

51255-31G10

$16.55

25

WASHER

08211-10281

$2.13

26

BOLT (10X120)

09103-10388

$5.64

27

BOLT (10X96)

09103-10387

$8.48

28

NUT (M10)

09159-10115

$3.31

29

BEARING, RR HUB

43440-58J01

$71.62

30

SEAL, REAR HUB INNER DUST

61615-31G00

$20.05

31

SEAL, REAR HUB OUTER DUST

61616-31G00

$17.79

32

CIRCLIP

08331-4162A

$3.69

33

BAR, RR STABILIZER

61651-34K00

$195.12

34

BUSH, RR STABILIZER

61652-34K00

$6.91

35

PLATE, RR STABILIZER

61653-34K00

$13.72

36

BOLT (8X16)

09103-08570

$2.39

37

JOINT, RR STABILIZER

61660-31G20

$77.54

38

NUT

09159-10223

$4.90

39

WASHER (10.5X22X2.3)

09160-10039

$2.31
