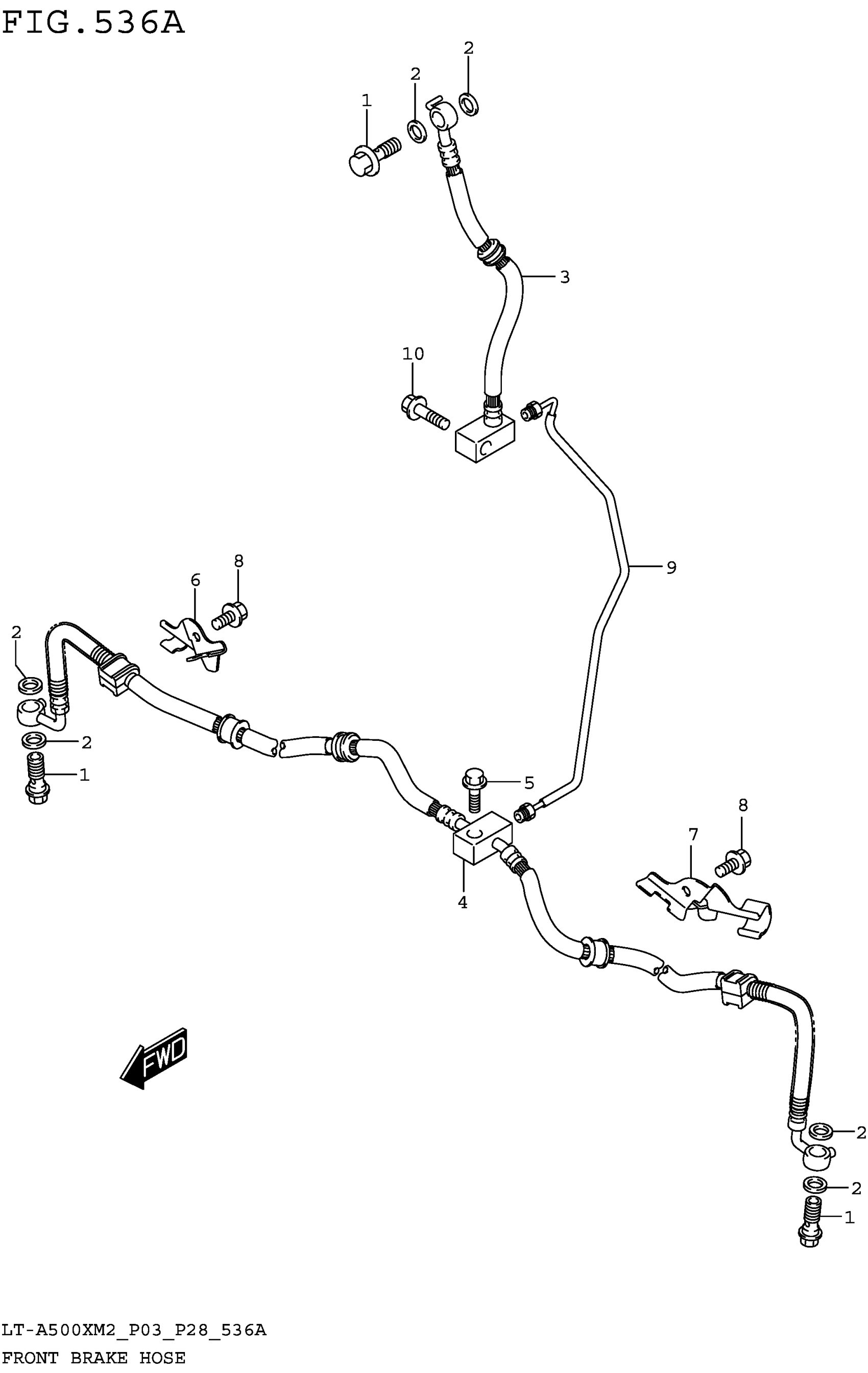

Suzuki LT-A500XM2 (2022) FRONT BRAKE HOSE Diagram

#

Description
Price

1

UNION (10X1.25X22)

09360-10062

$6.43

2

WASHER (10X15X1.5)

09161-10009

$1.84

3

HOSE, FRONT BRAKE NO.1

59480-31G31

$87.38

4

HOSE, FRONT BRAKE NO.2

59240-31G31

$230.08

5

BOLT (6X25)

01550-0625A

$1.97

6

CLAMP, FR BRAKE HOSE NO.2 RH

59261-31G00

Unavailable

7

CLAMP, FR BRAKE HOSE NO.2 LH

59271-31G00

$10.58

8

BOLT

01550-0616A

$1.97

9

PIPE, FR BRAKE

59250-31G10

Unavailable

10

BOLT (6X25)

01550-0625A

$1.97
