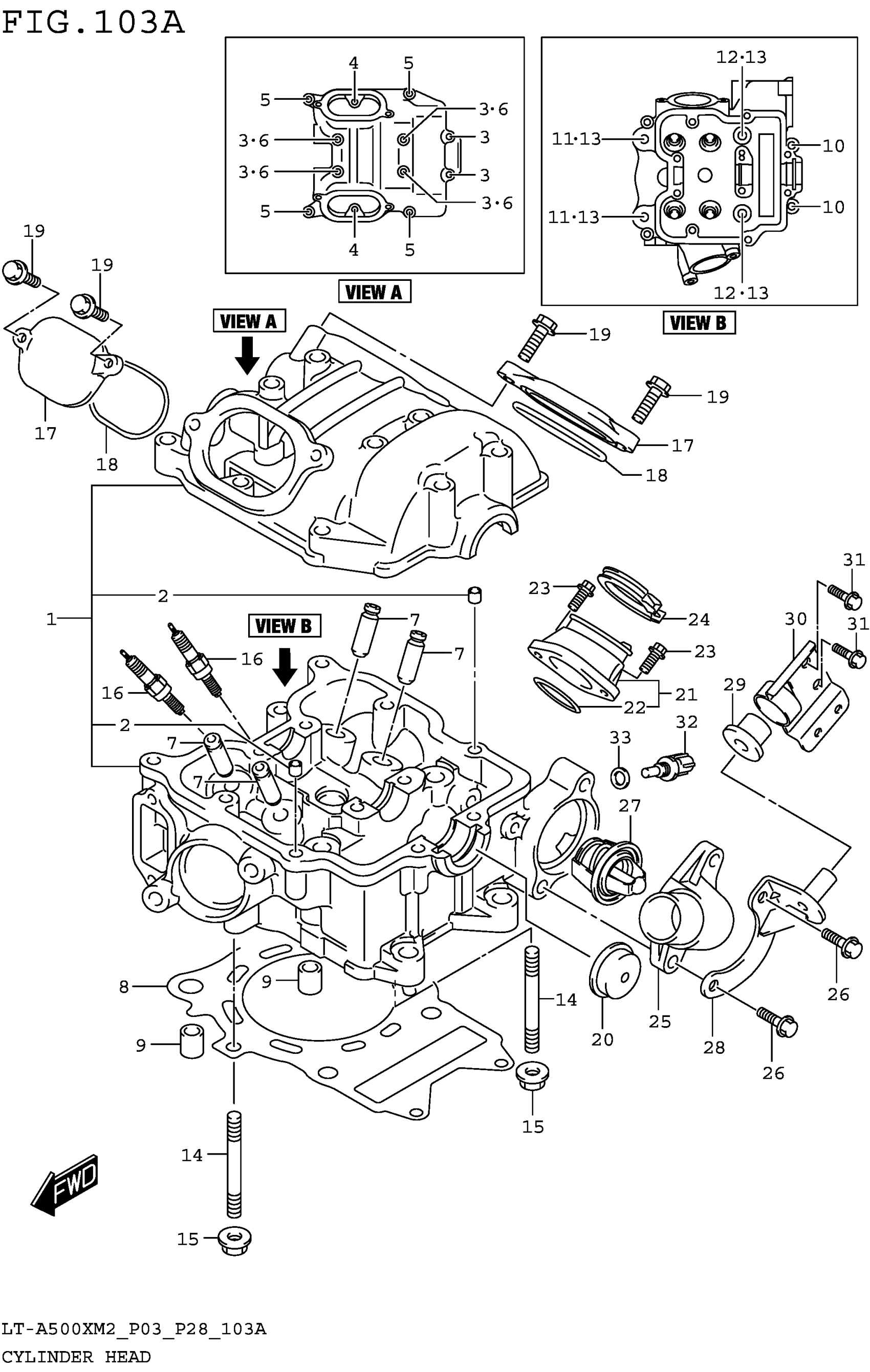

Suzuki LT-A500XM2 (2022) CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER

11100-11H50

$1,298.37

2

.PIN (8X11)

09206-08001

$1.78

3

.BOLT (6X60)

09103-06064

$2.12

4

BOLT (6X25)

01550-0625A

$1.97

5

BOLT

01550-0635A

$2.32

6

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

7

GUIDE,VALVE (OS:0.3)

11115-14D71

$39.23

8

.GASKET, CYLINDER HEAD

11141-31H00

$38.58

9

PIN (10.4X13X18)

04211-13189

$2.19

10

BOLT (8X135)

09103-08212

$7.47

11

BOLT (L:190)

09103-10179

$15.32

12

BOLT (L:200)

09103-10180

$15.32

13

.GASKET (10.2X20X2.3)

09168-10031

$2.03

14

STUD BOLT

01421-0850A

$3.07

15

NUT

08316-1008A

$2.45

16-1

SPARK PLUG (LMAR6A-9)

09482-00623

$34.92

16-2

SPARK PLUG (LMAR7A-9)

09482-00624

$25.95

16-3

SPARK PLUG (LMAR8A-9)

09482-00625

Unavailable

17

CAP, INSPECTION

11175-09F00

Unavailable

18

.O RING,INSPECTION CAP

11177-14D01

$4.60

19

BOLT (6X20)

01550-0620A

$1.97

20

PLUG (OD:30)

09241-25007

$6.17

21

PIPE ASSY, INTAKE

13101-31H01

$43.32

22

.O RING, INTAKE PIPE

13118-11H00

$6.47

23

BOLT (6X18)

09106-06105

$2.85

24

CLAMP This part replaces 09402-56208.

09402-56901

$5.36

25

COVER, THERMOSTAT

17661-31G00

$47.48

26

BOLT

07130-0825A

$3.04

27

THERMOSTAT,WATER

17670-06G61

$25.77

28

PLATE, ENG MTG DAMPER

11653-11H01

$21.03

29

DAMPER, ENGINE MTG

11654-31G01

$2.25

30

STOPPER, ENG MTG

11655-31G10

$16.77

31

BOLT (8X12)

01550-0812A

$2.32

32

SENSOR, WATER TEMP

13650-10G00

$87.24

33

GASKET (12X17X1)

09168-12017

$1.95
