2022 Suzuki LT-A500XM2 CAM Chain Diagram

← All diagrams

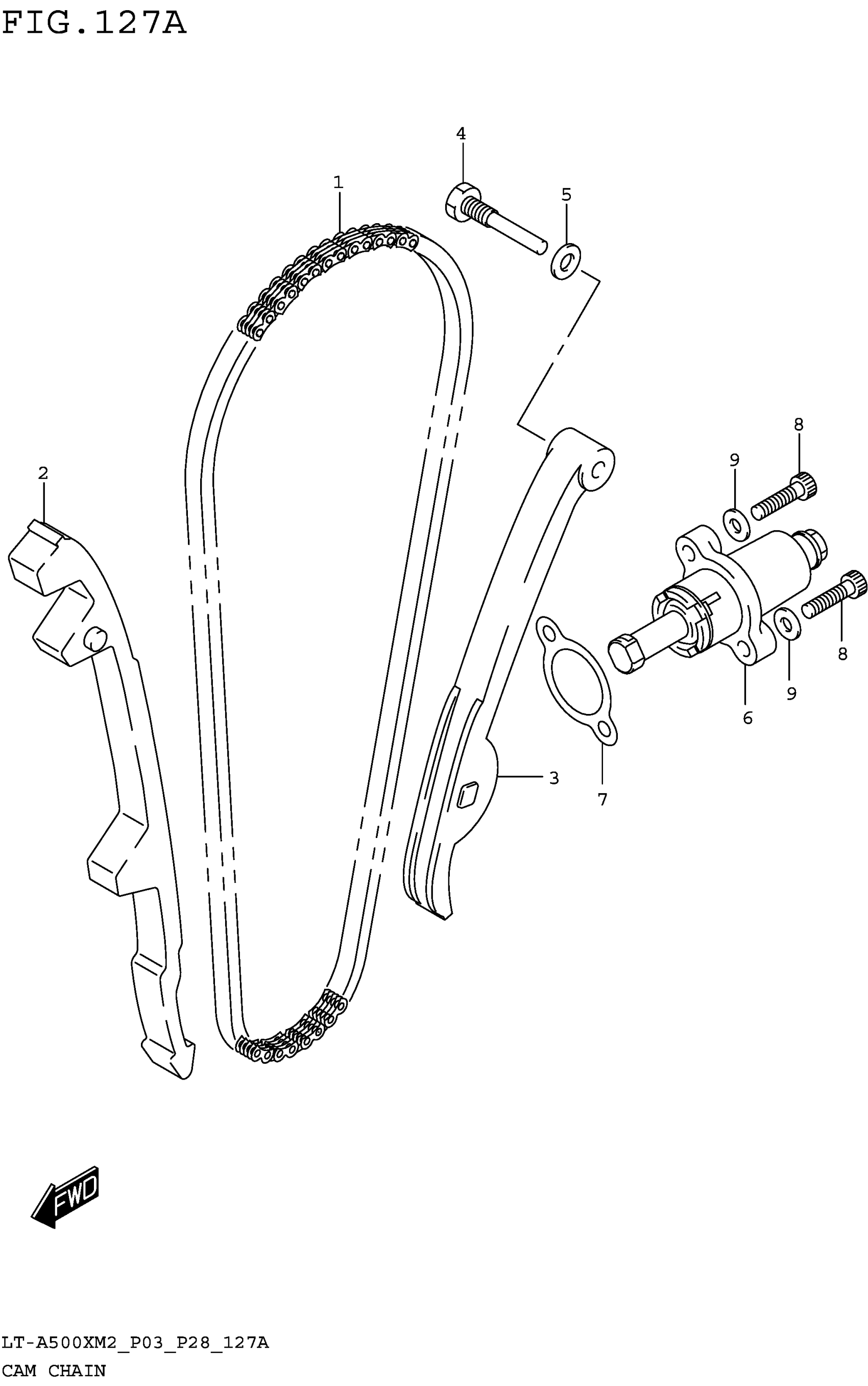

Find the part on the CAM Chain diagram for your 2022 Suzuki LT-A500XM2, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Suzuki LT-A500XM2 CAM Chain Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

1

$193.98

In stock

2

GUIDE, CAM CHAIN

12771-11H00

1

$47.05

In stock

3

TENSIONER, CAM CHAIN

12811-09F01

1

$76.43

In stock

4

BOLT, CAM CHAIN TENSIONER

12812-32400

1
Out of stock

5

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

1
Out of stock

6

1

$150.35

In stock

7

1

$3.24

In stock

8

BOLT (6X25)

07130-0625A

2

$2.85

In stock

9

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

2
Out of stock
