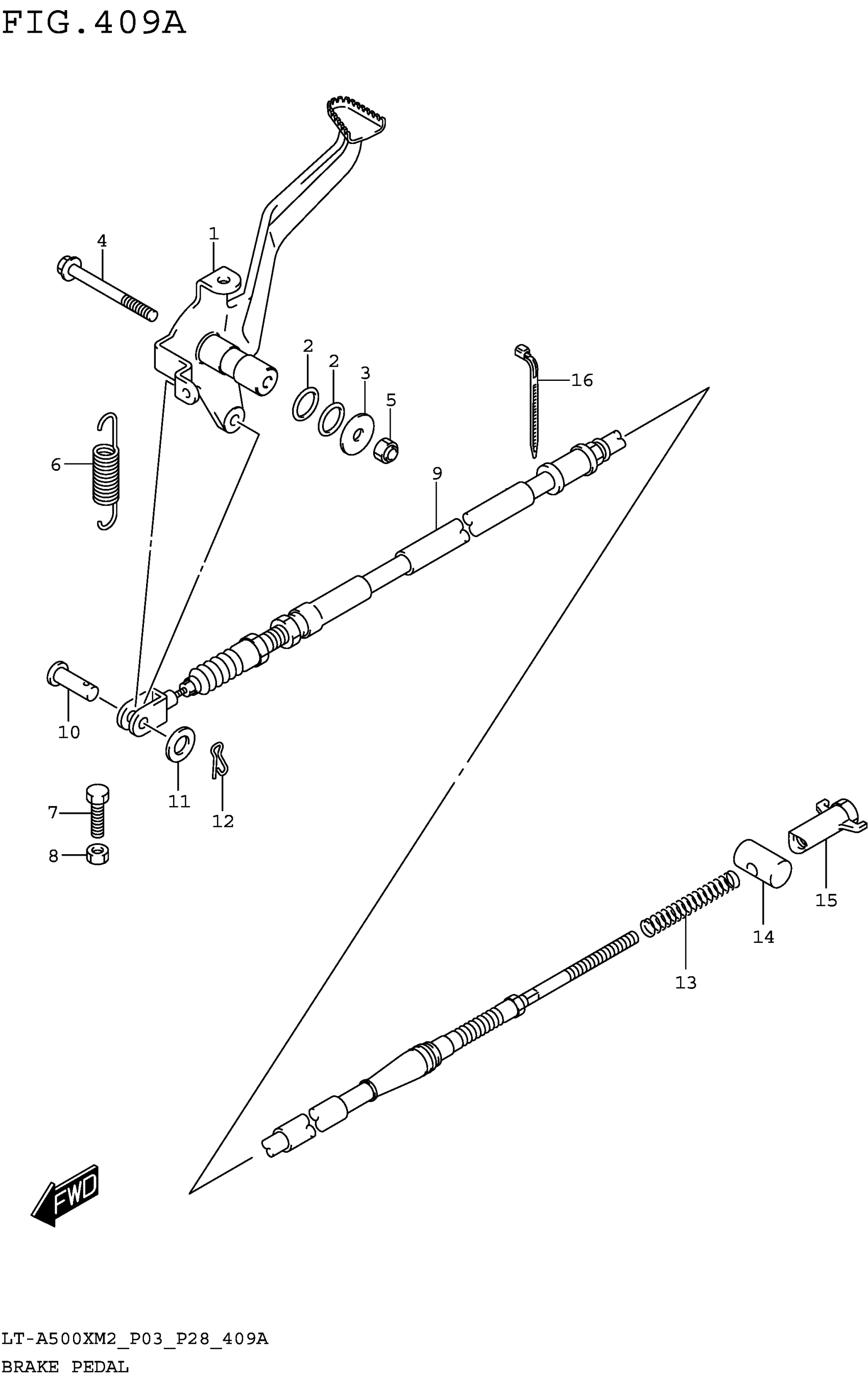

Suzuki LT-A500XM2 (2022) BRAKE PEDAL Diagram

#

Description
Price

1

PEDAL, BRAKE

43110-31G10

$42.62

2

O RING (D:2.5,ID:13.8)

09280-14011

$4.77

3

WASHER (6.5X22X2.3)

09160-06138

$1.91

4

BOLT (6X65)

09103-06195

$4.00

5

.NUT

08319-2106A

$1.91

6

SPRING

09443-11036

$4.93

7

BOLT

01500-0620A

$1.78

8

NUT

08310-0006A

$1.84

9

CABLE, REAR BRAKE

58510-31G10

Unavailable

10

PIN (L:17.5)

09200-05001

$1.65

11

WASHER

08322-0106B

$2.26

12

CLIP

09385-06012

$1.89

13

SPRING

09440-08042

$2.92

14

PIN

09209-13006

$5.24

15

NUT

09150-06015

$3.56

16

CLAMP (L:165)

09407-18402

$2.19
