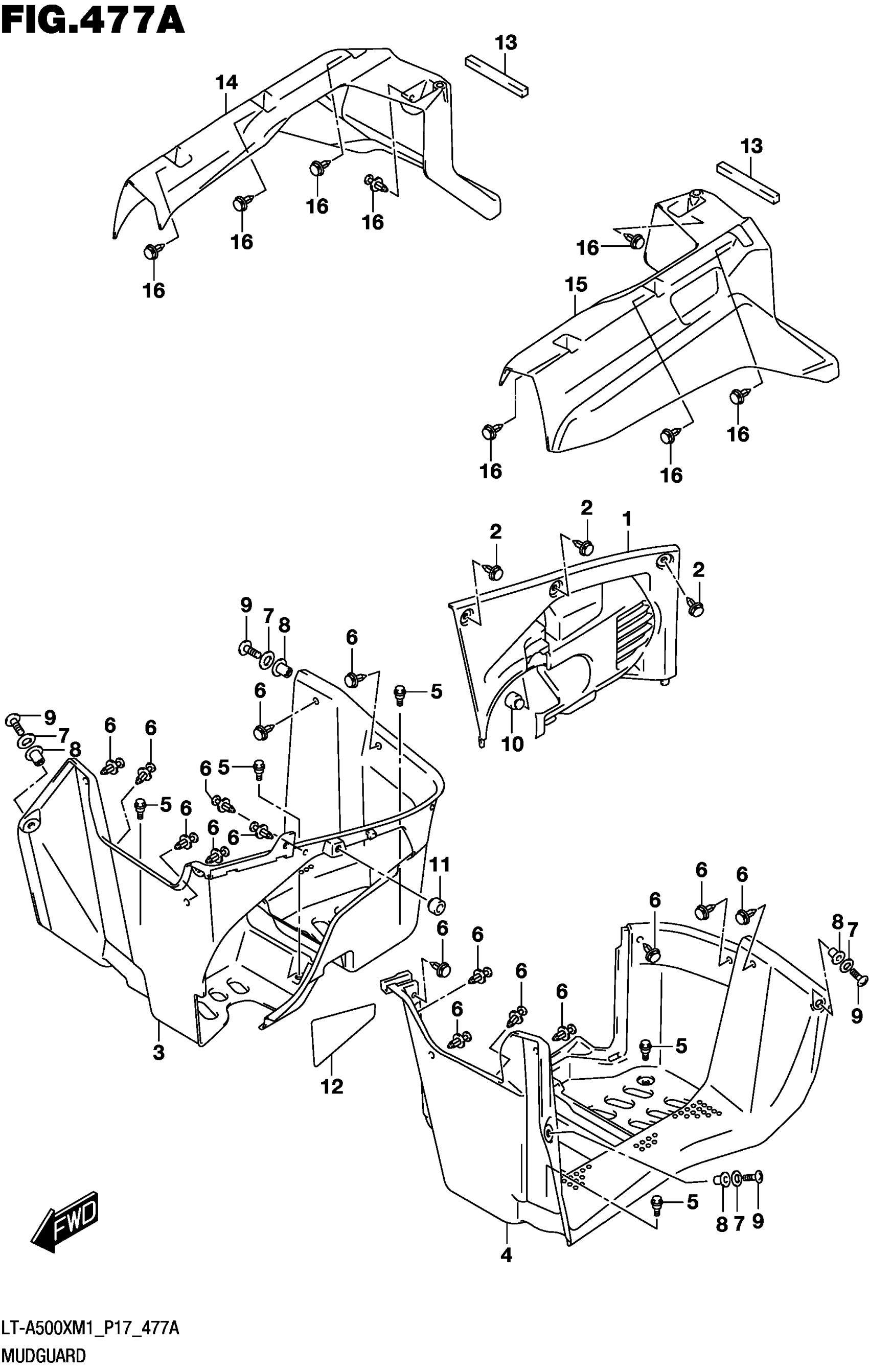

Suzuki LT-A500XM1 (2021) MUDGUARD Diagram

#

Description
Price

1

LID,FOOTREST GU This part replaces 63342-34K00.

63342-34K01-291

$101.62

2

CLIP

09409-08008

$1.74

3

MUDGUARD,FOOTRE This part replaces 63331-34K01.

63331-34K02-291

$34.80

4

MUDGUARD,FOOTRE This part replaces 63341-34K01.

63341-34K02-291

$73.73

5

BOLT (6X13.5)

09111-06088

$2.19

6

CLIP

09409-08008

$1.74

7

WASHER (5.5X20X1.4)

09160-05046

$1.90

8

NUT (M5)

09159-05019

$6.44

9

SCREW

02142-0520B

$1.77

10

CUSHION

09321-10019

$4.42

11

CUSHION

09321-10019

$4.42

12

SHIELD, SIDE COVER NO.1

63268-34K00

$16.13

13

CUSHION, MUDGUARD REAR FENDER

92143-31G00

Unavailable

14

MUDGUARD,RR FEN This part replaces 63351-34K00.

63351-34K01

$43.65

15

MUDGUARD,RR FEN This part replaces 63361-34K00.

63361-34K01

$43.05

16

CLIP

09409-08008

$1.74
