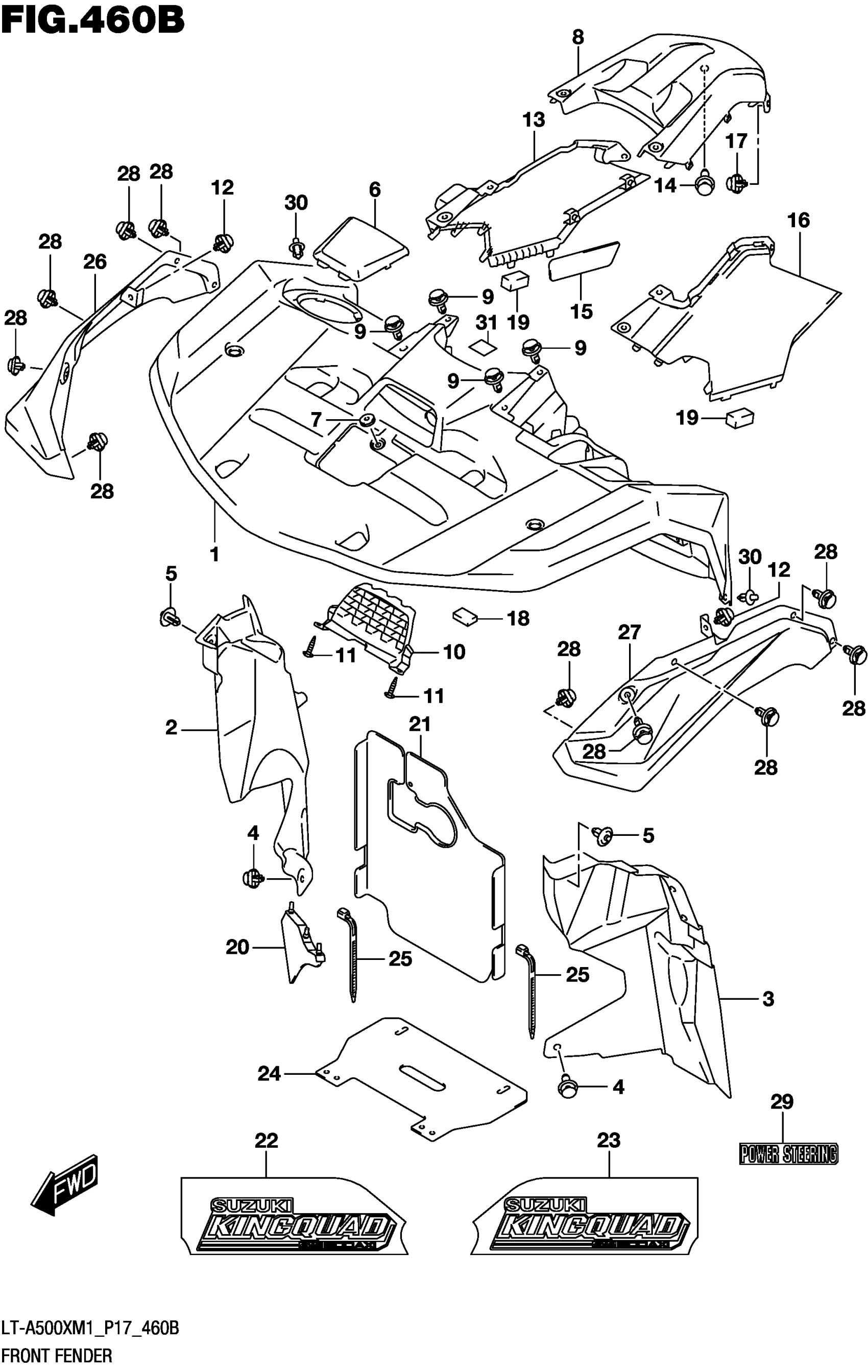

Suzuki LT-A500XM1 (2021) FRONT FENDER (LT-A500XPM1 P17) Diagram

#

Description
Price

1-1

FENDER, FRONT (RED) This part replaces 53111-34K10-YT9.

53111-34K01-YT9

$686.78

1-2

FENDER,FRONT(GR This part replaces 53111-34K10-YLG.

53111-34K11-YLG

$411.98

1-3

FENDER, FRONT (WHITE) This part replaces 53111-34K10-30H.

53111-34K00-30H

$620.73

1-4

FENDER, FRONT (GRAY)

53111-34K50-QTF

$972.30

1-5

FENDER, FRONT (CAMOUFLAGE)

53111-34K30-QTM

$1,170.25

2

MUDFLAP, INNER RH This part replaces 53411-34K00.

53411-34K01

$22.53

3

MUDFLAP, INNER LH This part replaces 53421-34K00.

53421-34K01

$22.40

4

CLIP

09409-08008

$1.74

5

CLIP (D:2.4,ID:23.7)

09409-07333

$2.29

6-1

LID, FENDER FRONT (RED) This part replaces 53341-31G04-YT9.

53341-31G06-YT9

$9.57

6-2

LID, FENDER FRONT (GREEN) This part replaces 53341-31G04-YLG.

53341-31G06-YLG

$9.28

6-3

LID,FRONT FENDE This part replaces 53341-31G04-30H.

53341-31G06-30H

$14.15

6-4

LID, FENDER FRONT (GRAY) This part replaces 53341-31G53-QTF.

53341-31G54-QTF

$50.58

6-5

LID (CAMOUFLAGE)

53341-31GC4-QTM

$72.92

7

CUSHION (8x26x7)

09320-08018

$2.80

8

FENDER, CENTER This part replaces 53119-34K01.

53119-34K04

$135.17

9

CLIP

09409-08008

$1.74

10

COVER, INNER

53212-34K00

$12.15

11

SCREW

03541-0516A

$1.37

12

CLIP

09409-08008

$1.74

13-1

COVER, SIDE RH (RED)

53112-34K01-YT9

$118.17

13-2

COVER, SIDE RH (GREEN)

53112-34K01-YLG

$80.30

13-3

COVER,SIDE R This part replaces 53112-34K01-30H.

53112-34K03-30H

$27.40

13-4

COVER, SIDE RH (GRAY)

53112-34K21-QTF

$199.37

13-5

COVER, SIDE RH (CAMOUFLAGE)

53112-34K11-QTM

$282.55

14

CLIP

09409-08008

$1.74

15

SHIELD, SIDE COVER NO.2

53113-34K00

$9.85

16-1

COVER, SIDE LH (RED)

53122-34K01-YT9

$94.80

16-2

COVER, SIDE LH (GREEN) This part replaces 53122-34K01-YLG.

53122-34K03-YLG

$138.35

16-3

COVERM,SIDE L This part replaces 53122-34K01-30H.

53122-34K03-30H

$27.27

16-4

COVER, SIDE LH (GRAY)

53122-34K21-QTF

$199.37

16-5

COVER, SIDE LH (CAMOUFLAGE)

53122-34K11-QTM

$282.55

17

CLIP

09409-08008

$1.74

18

CUSHION, REAR FENDER EXT PLAT

63113-48G00

$12.42

19

CUSHION, COVER SIDE

53114-34K00

$1.66

20

MUDGUARD, SIDE RH This part replaces 53116-31G00.

53116-31G01

$17.47

21

COVER, CENTER This part replaces 53117-31G00.

53117-31G01

$33.97

22

TAPE, COVER SIDE RH (GRAY/RED

68151-35K00-BM6

$22.02

23

TAPE, COVER SIDE LH (GRAY/RED

68152-35K00-BM6

$22.02

24

GUARD, RADIATOR

53113-31G10

$21.93

25

CLAMP (L:125)

09407-14403

$2.24

26

MUDGUARD,FRT FE This part replaces 53331-34K00.

53331-34K01

$34.85

27

MUDGUARD, FRONT FENDER, LH

53332-34K00

$34.85

28

CLIP

09409-08008

$1.74

29

EMBLEM, POWER-STEERING (GRAY) | (GRAY)

68151-31GD1-BM7

$11.32

30

CLIP

09409-08008

$1.74

31

CUSHION (25X35X4)

44612-13600

$5.27
