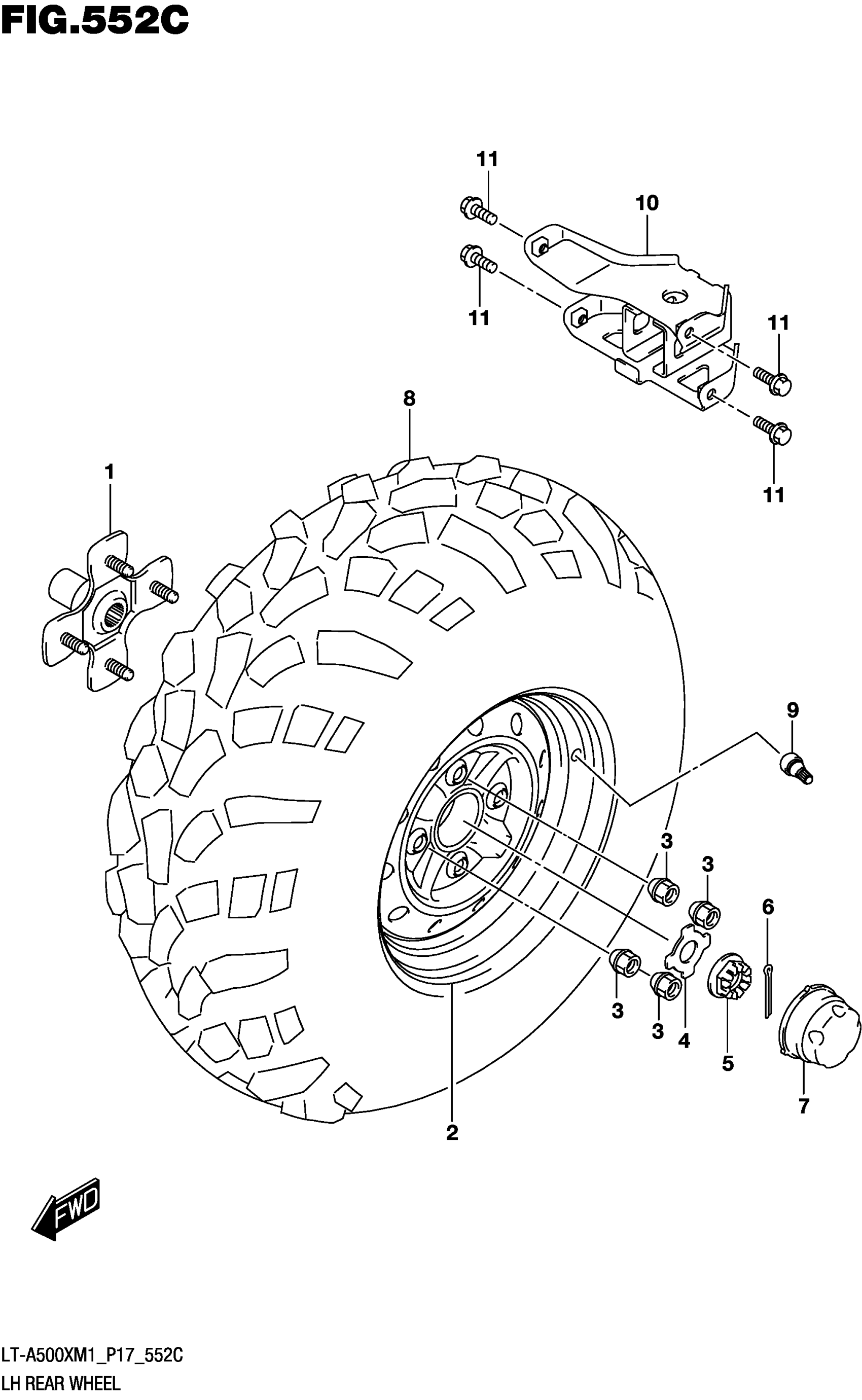

Suzuki LT-A500XM1 (2021) LH REAR WHEEL (LT-A500XPZM1 P17) Diagram

#

Description
Price

1

HUB, REAR WHEEL

64110-31G10

$222.42

2

REAR WHEEL-ALUM | (BLACK) This part replaces 65311-34K00-291.

65311-34K00

$213.65

3

NUT (H:23)

09159-10045

$6.42

4

WASHER, HUB

64723-03G00

$20.80

5

NUT

09141-20008

$18.05

6

PIN

04111-4035A

$1.49

7-1

CAP,WHEEL CENTER

54725-34K00

$12.42

7-2

CAP,WHEEL CENTER

54725-34K20

$33.52

8

TIRE,REAR (AT25X10-12) | AT489 CARLISLE

65110-31G30

$296.43

9

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85

10

PLATE, TRAILER HITCH

95210-34K00

$113.88

11

BOLT (10X20)

09103-10394

$2.65
