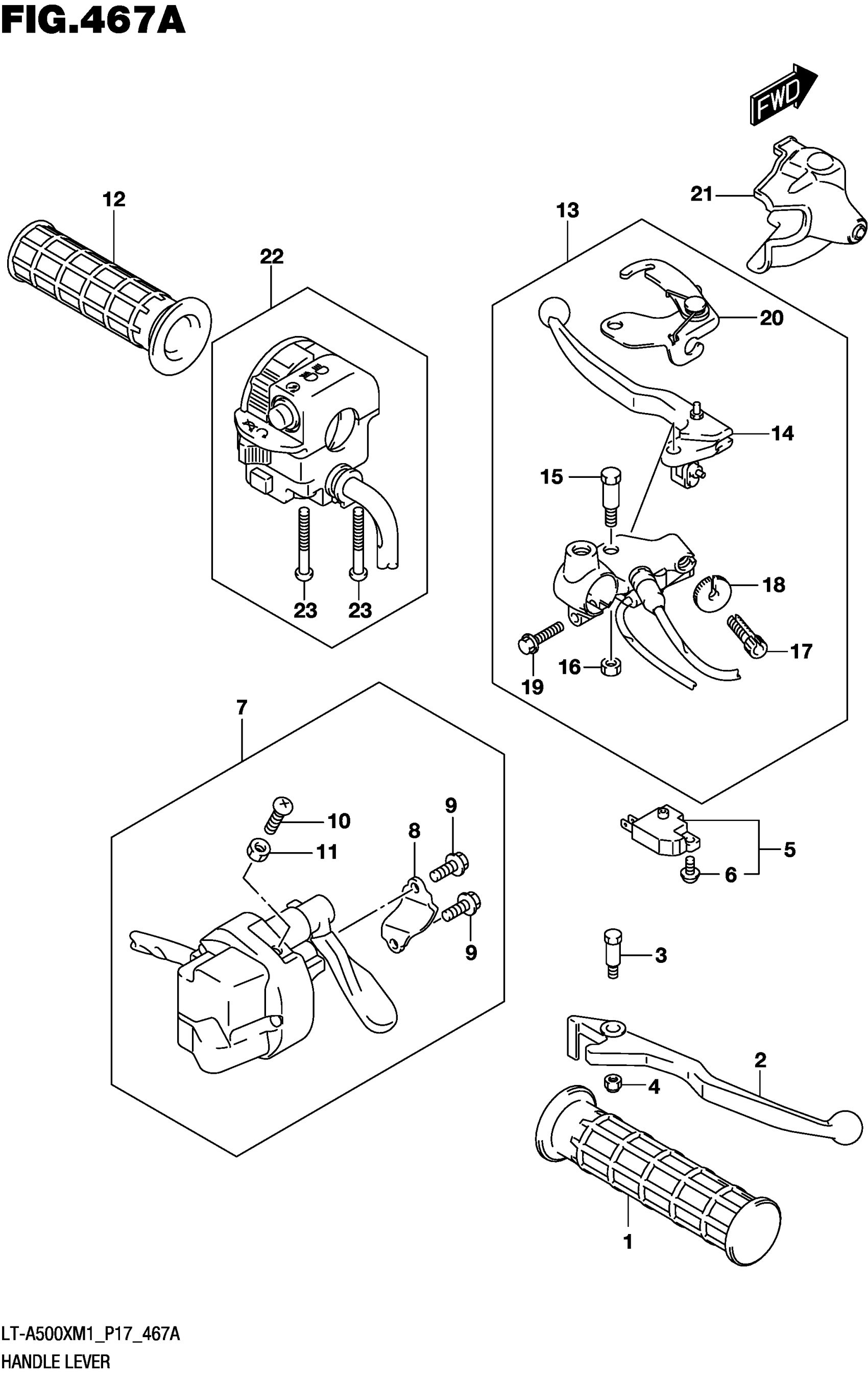

Suzuki LT-A500XM1 (2021) HANDLE LEVER Diagram

#

Description
Price

1

GRIP

57211-21G10

$9.29

2

LEVER,FRONT BRAKE

57421-39D20

$20.51

3

BOLT,BRAKE LEVER PIVOT

57431-04F00

$5.75

4

NUT,LEVER PIVOT

57433-09F00

$3.26

5

SWITCH ASSY, FRONT BRAKE

37750-34K00

$33.35

6

.SCREW,WITH WASHER (4X12)

57465-17C00

$2.37

7

CASE ASSY,THROTTLE This part replaces 57100-34K01.

57100-34K02

$167.00

8

.HOLDER

57126-07G00

$32.85

9

.BOLT

57127-07G00

$13.50

10

.SCREW

02112-0520B

$1.86

11

NUT This part replaces 08310-0005B.

08310-0005A

$1.83

12

GRIP

57211-21G10

$9.29

13

LEVER ASSY, REAR BRAKE This part replaces 57501-34K01.

57501-34K02

$158.22

14

.LEVER SET,BRAKE

57620-27820

$71.03

15

.BOLT,PIVOT

57431-09F00

$12.14

16

.NUT

08319-2106A

$1.89

17

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

$10.66

18

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

$7.67

19

..BOLT

01547-0620B

$2.43

20

.STOPPER,BRAKE LEVER

57790-38FA0

$51.20

21

COVER,BRAKE LEVER This part replaces 57541-38FA0.

57541-38FA1

$9.83

22

SWITCH ASSY, HANDLE LH

37400-34K00

$119.62

23

.SCREW

02112-0535B

$1.95
