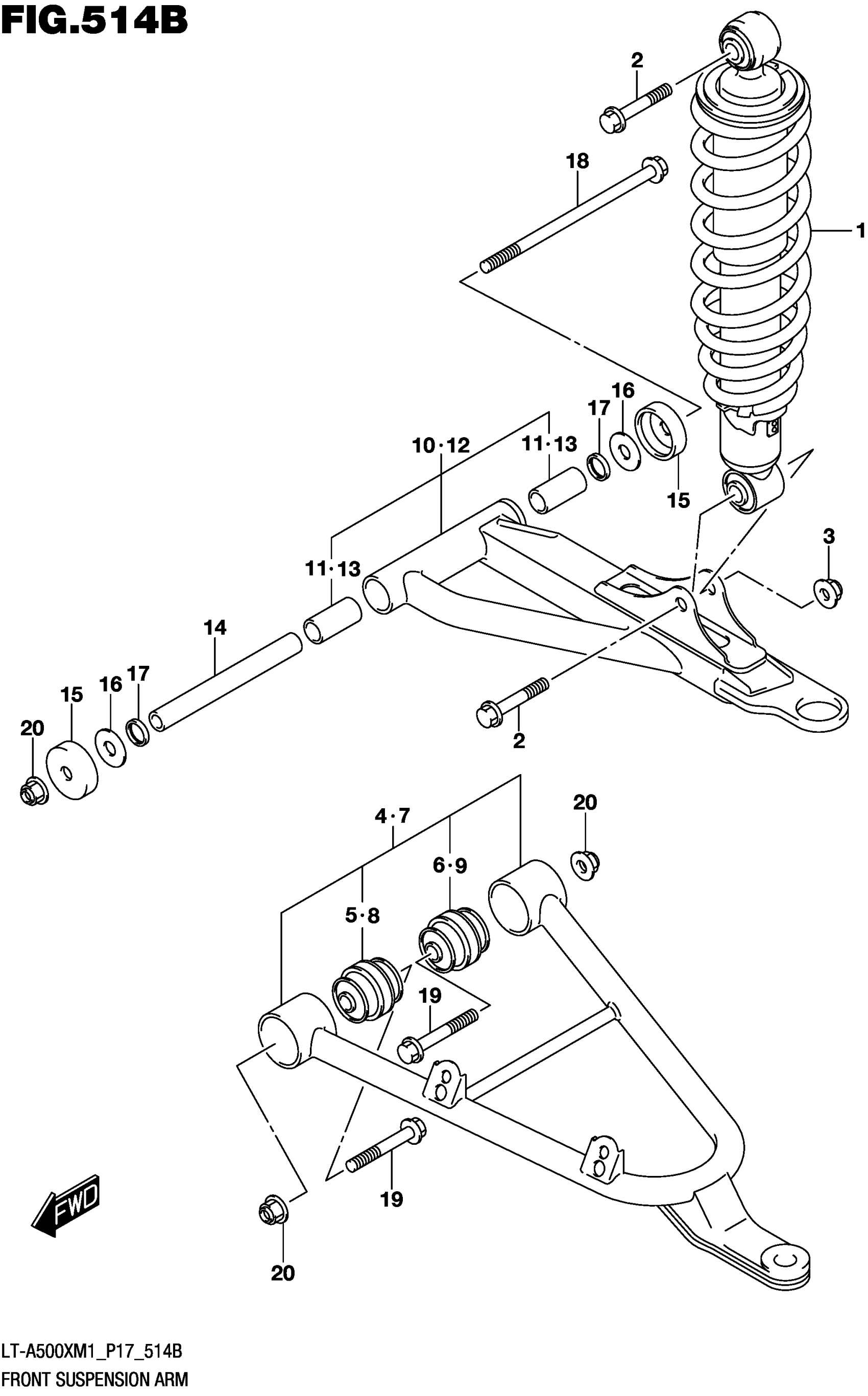

Suzuki LT-A500XM1 (2021) FRONT SUSPENSION ARM (LT-A500XPM1 P17) Diagram

#

Description
Price

1

ABSORBER ASSY,F This part replaces 52100-34K30.

52100-34K30-019

$219.73

2

BOLT (10X48)

09103-10126

$4.07

3

NUT (M10)

09159-10115

$3.21

4

ARM SET,SUSPENSION LOWER,RH This part replaces 52410-34810.

52410-34820

$218.03

5

.BUSH (10X35.1X38)

09319-10055

$19.25

6

.BUSH, SPNSN ARM

61240-09F10

$33.02

7

ARM SET,SUSPENSION LOWER,LH This part replaces 52420-34810.

52420-34820

$179.67

8

.BUSH (10X35.1X38)

09319-10055

$19.25

9

.BUSH, SPNSN ARM

61240-09F10

$33.02

10

ARM SET,SUSPENSION UPR,R This part replaces 52430-31840.

52430-34810

$182.52

11

.BUSH, SUSPENSION ARM PIVOT

51236-31G00

$15.85

12

ARM SET,SUSPENSION UPR,L This part replaces 52440-31840.

52440-34810

$182.52

13

.BUSH, SUSPENSION ARM PIVOT

51236-31G00

$15.85

14

SPACER, FR SUSPENSION ARM

52455-31G10

$25.62

15

SEAL, FR SPNSN ARM PIVOT

51255-31G10

$15.84

16

WASHER

08211-10281

$2.06

17

SEAL, SPNSN ARM PVT INNER DUS

52454-45G00

$7.00

18

BOLT (10X160)

09103-10389

$9.21

19

BOLT (10X57)

09103-10255

$8.47

20

NUT (M10)

09159-10115

$3.21
