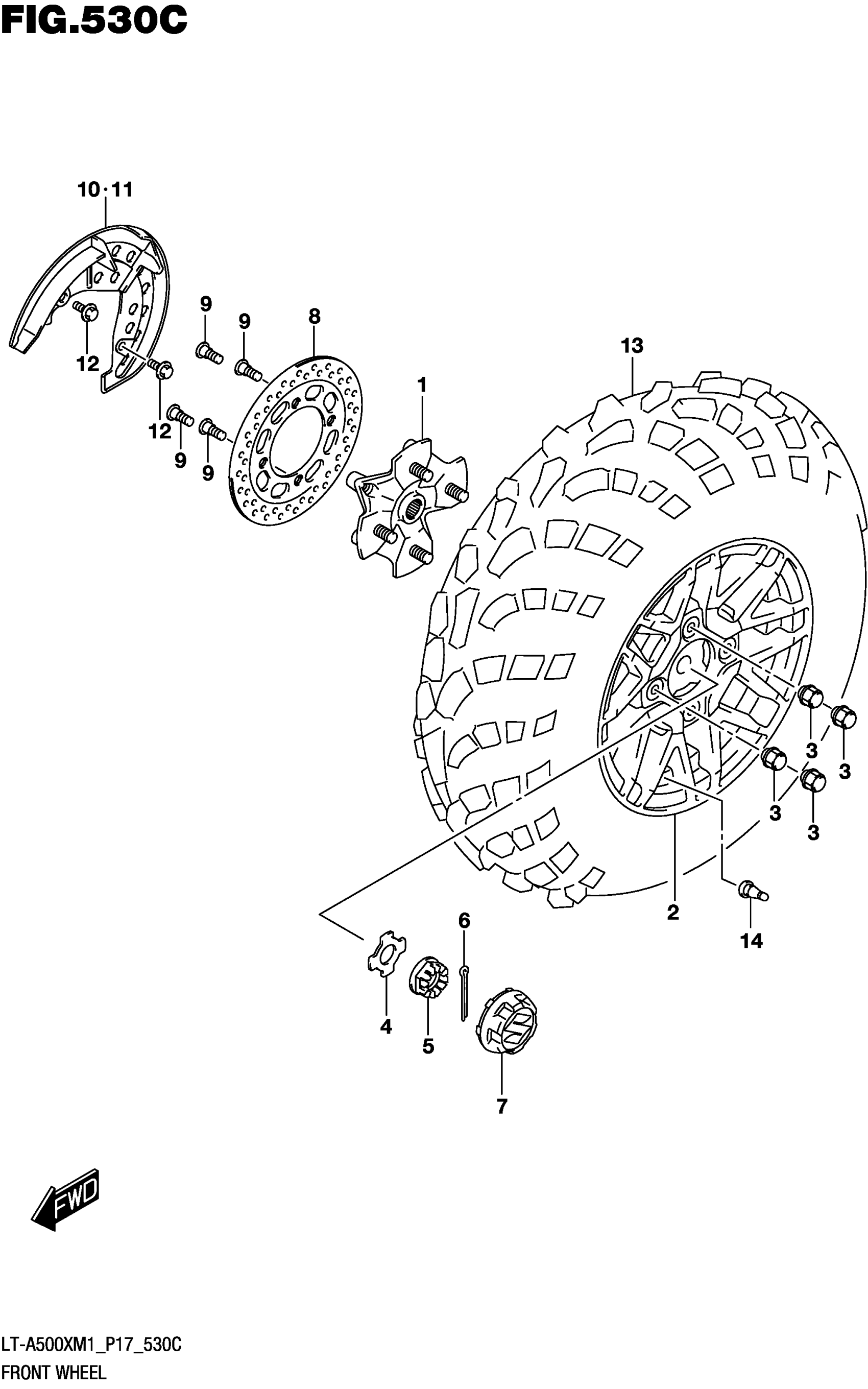

Suzuki LT-A500XM1 (2021) FRONT WHEEL (LT-A500XPZM1 P17) Diagram

Description

Price

HUB,FRONT WHEEL This part replaces 54110-31G00.

54110-31G10

$137.30

2-1

FRT WHEEL (ALUM | (BLACK) FOR YT9,YLG,30H This part replaces 55311-34K00-291.

55311-34K00

$208.80

2-2

WHEEL,FRONT | (BLACK) FOR QTF,QTM This part replaces 55311-34K20-019.

55311-34K20

$255.82

NUT (H:23)

09159-10045

$6.42

WASHER, HUB

64723-09F00

$13.35

NUT

09141-18010

$10.11

04111-4035A

$1.49

7-1

CAP,WHEEL CENTER | FOR YT9,YLG,30H

54725-34K00

$12.42

7-2

CAP,WHEEL CENTER | FOR QTF,QTM

54725-34K20

$33.52

DISC, FRONT BRAKE

59211-31G20

$36.10

BOLT (8X21)

09106-08160

$3.57

COVER, FRONT DISC RH

59231-31G11

$21.70

COVER, FRONT DISC LH

59431-31G11

$21.32

BOLT (6X12)

09111-06085

$4.54

TIRE,FRONT (AT25X8-12) | AT489 CARLISLE

55110-31G30

$300.50

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00

$8.85
